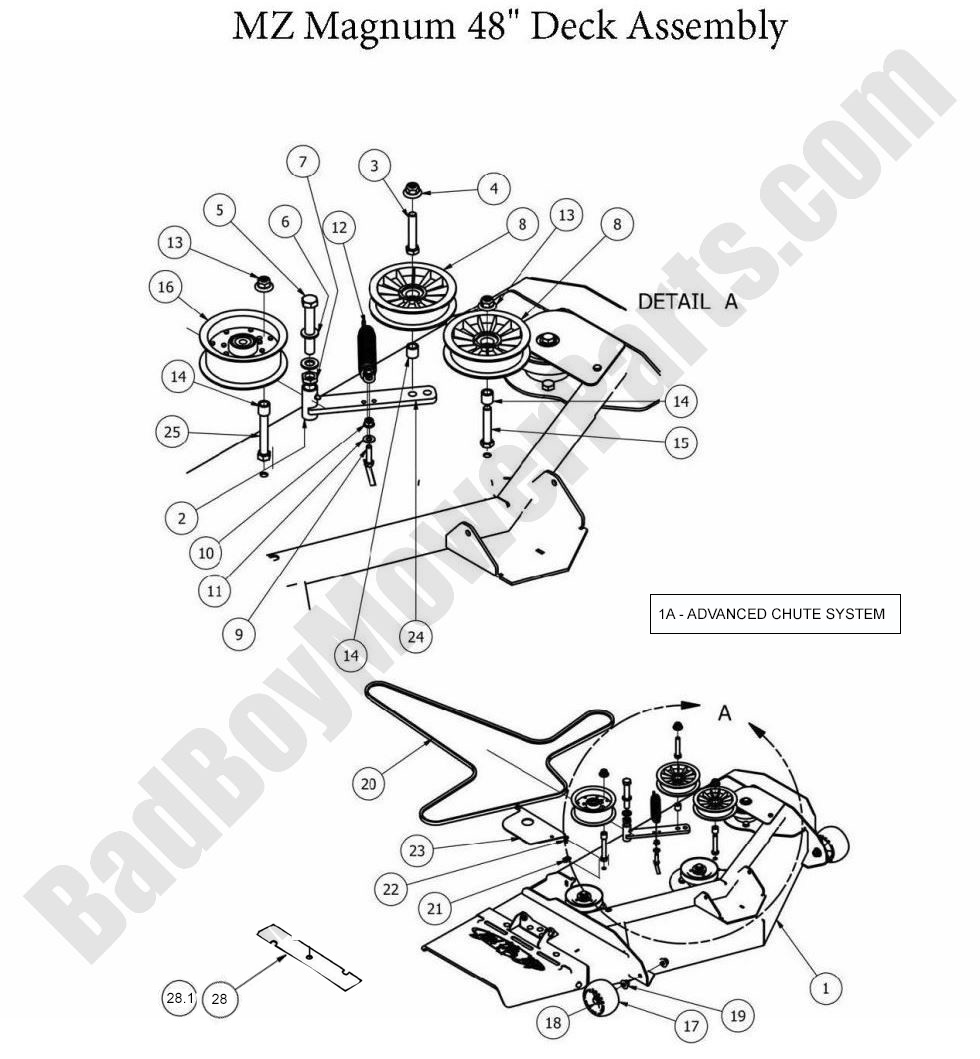

2013 MZ Magnum 48" Deck Assembly

48" Deck Assembly

The Bad Boy Mower parts diagram for the 2013 MZ Magnum 48" Deck is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 MZ Magnum models. Find all of your Bad Boy mowers 2013 MZ Magnum parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 MZ Magnum 48" Deck. If you are not able to find the Bad Boy parts for your 2013 MZ Magnum please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 MZ Magnum 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-4842-00 088-4842-00 - Advanced Chute System for all MZ, MZ Magnum & ZT Avenger decks
$266.99
1 060-2000-00 060-2000-00 - 2010-2016 48" MZ Deck - Shell Only
$1278.47
2 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
3 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
6 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
7 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
8 033-2000-00 033-2000-00 - Plastic Idler Pulley-MZ Models OBSOLETE USE 033-7201-00 (obsolete)
use part #033-7201-25
$35.48
9 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
12 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
14 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
16 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley
$56.77
17 022-5234-00 022-5234-00 - Deck Wheel (obsolete)
use part #022-1000-98
$25.99
18 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
20 041-6027-00 041-6027-00 - B128 Deck Belt for 2010-2016 48" MZ & MZ Magnum & 2020 - 2023 Walk-Behind 54"
$80.24
21 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
22 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
24 039-7001-98 039-7001-98 - MZ DECK IDLER ASSEMBLY
$56.77
25 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 GR 5 Hex Bolts
$2.99
28.1 038-4827-00 038-4827-00 - 48" Gator Blade for MZ only
$21.99
28 038-4826-00 038-4826-00 - 48" High Lift Fusion Blade-MZ
$22.99
