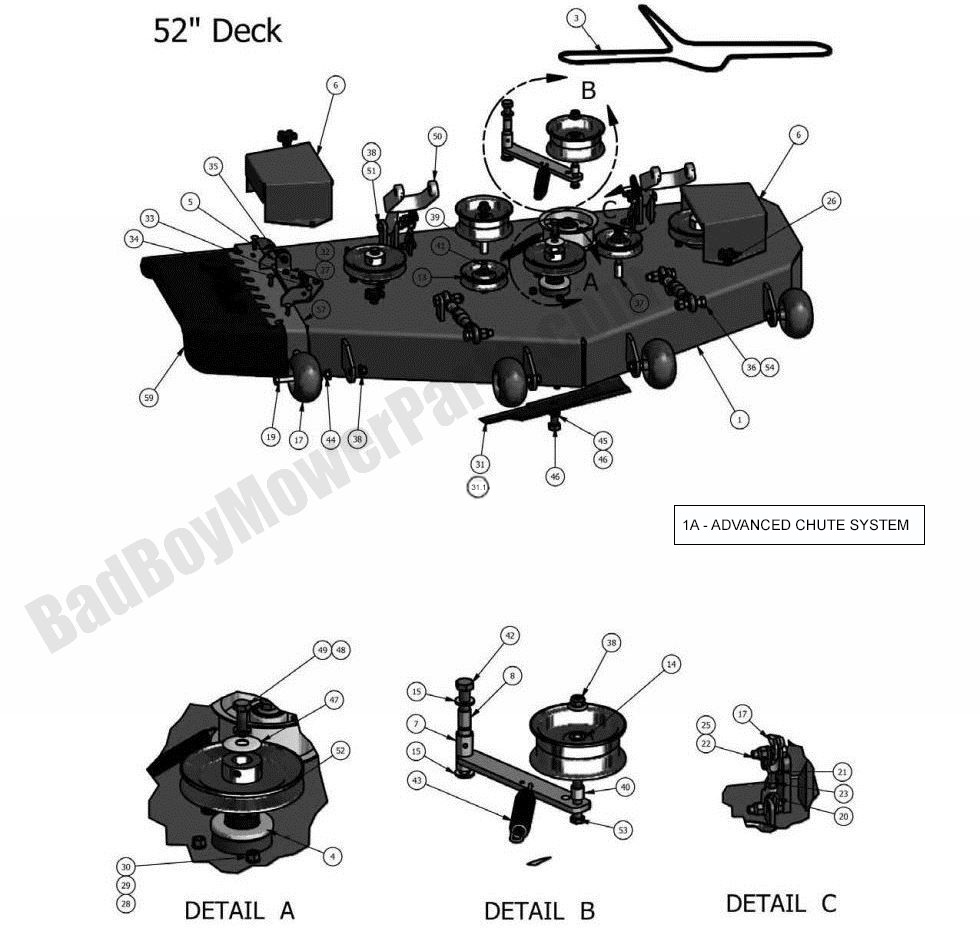

2011 Lightning and Pup 52" Deck Assembly

52" Deck Assembly

The Bad Boy Mower parts diagram for the 2011 Lightning and Pup 52" Deck is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 Lightning and Pup models. Find all of your Bad Boy mowers 2011 Lightning and Pup parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 Lightning and Pup 52" Deck. If you are not able to find the Bad Boy parts for your 2011 Lightning and Pup please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2011 Lightning and Pup 52" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$266.99
1 060-5402-00 060-5402-00 - 2007-2011 52" Pup Deck - Shell Only
$1176.99
2 060-5402-98 060-5402-98 - 2007-2011 52" Pup Deck - Complete w/spindles
$2460.99
3 041-1490-00 041-1490-00 - B-149 Deck Belt for 52" Pup/Lightning
$88.80
4 037-8000-00 037-8000-00 - Spindle - Obsolete - Use 037-4000-00 (obsolete)
use part #037-4000-00
$312.34
5 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
6 014-6010-00 014-6010-00 - Plastic Pulley Cover (See Models Used On For Details) (obsolete)
use part #014-4000-00
$28.39
7 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
8 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
13 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
14 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley
$56.77
15 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
17 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
20 046-6044-00 046-6044-00 - Female Yoke (See Models Used On For Details)
$10.77
21 046-6048-00 046-6048-00 - Male Yoke
$15.60
22 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
23 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
24 047-6047-98 047-6047-98 - 3-Link Adjustable Deck Hanger (obsolete)
use part #046-6048-98
$32.09
25 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
26 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
27 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
28 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
29 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
31.1 038-5203-00 038-5203-00 - 36" & 52" Gator Mulching Blade
$22.99
31 038-3010-00 038-3010-00 - 36 & 52" High Lift Fusion Blade
$22.99
32 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
33 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
34 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
35 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
36 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 GR 5 Hex Bolts
$2.99
37 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
38 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
39 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
40 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
41 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
42 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
43 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
45 019-4807-00 019-4807-00 - 5/8 Lockwasher Zinc
$2.99
46 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
47 019-6019-00 019-6019-00 - Spring blade cupped washer bot tom spindle
$9.23
48 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
49 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
50 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$141.97
51 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
52 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
53 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
57 039-4870-00 039-4870-00 - 48/52 Discharge Top Bracket Ru bber Chute Assembly
$42.52
59 210-5218-00 210-5218-00 - 48/52 Rubber Discharge Chute A ssy (obsolete)
use part #210-6005-48
$181.89
