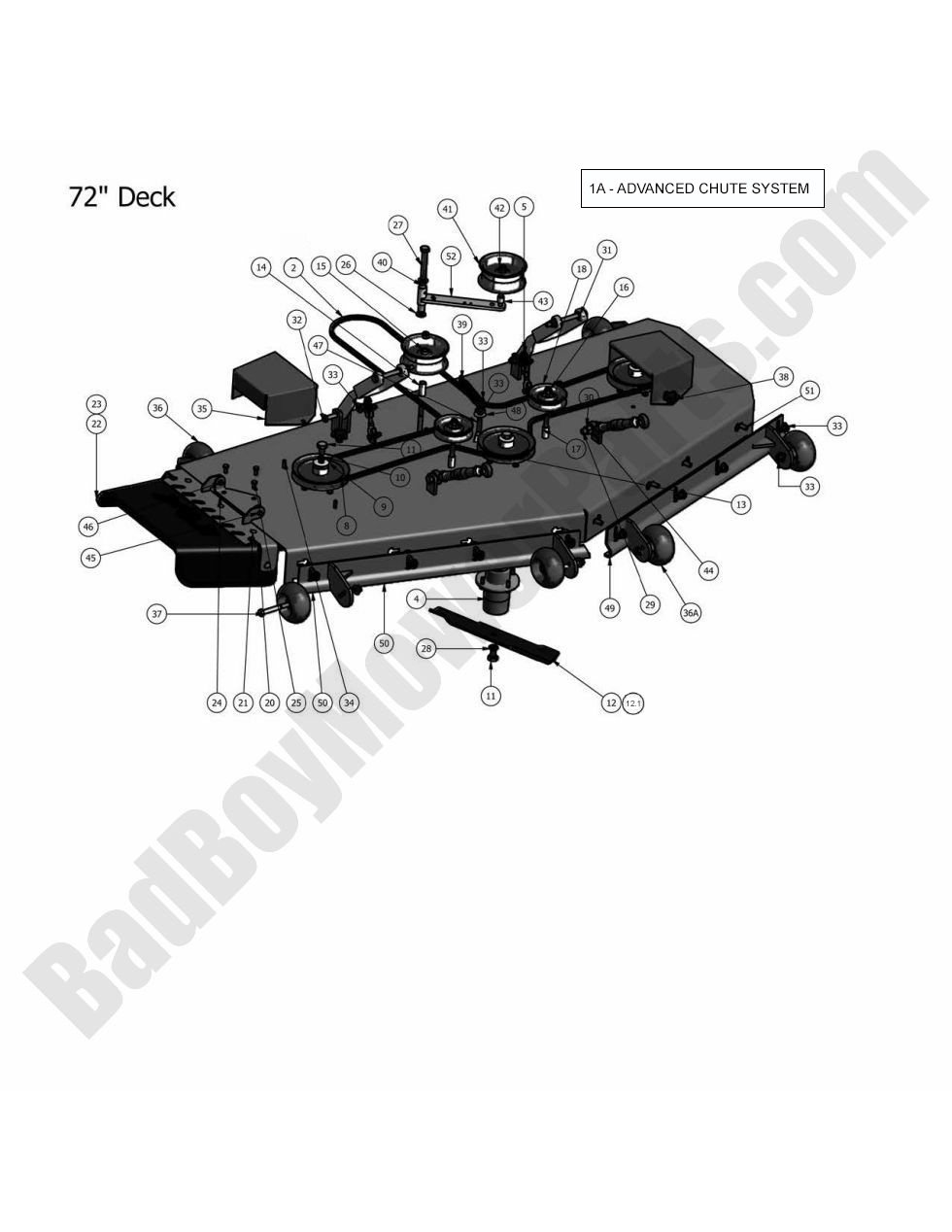

2011 Diesels 72" Deck Assembly

72" Deck Assembly

The Bad Boy Mower parts diagram for the 2011 Diesels 72" Deck is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 Diesels models. Find all of your Bad Boy mowers 2011 Diesels parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 Diesels 72" Deck. If you are not able to find the Bad Boy parts for your 2011 Diesels please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2011 Diesels 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2024 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$266.99
1B 060-7201-00 060-7201-00 - 72" Deck Shell W/O Front Gates (See Models Used On For Detail)
$1705.82
1C 060-7201-98 060-7201-98 - 72" Deck-Complete w/Spindles
$2567.99
2 041-2525-00 041-2525-00 - B252.50 Deck Belt for 72" AOS Diesel (35hp/1500cc)
$140.49
4 037-8000-00 037-8000-00 - Spindle - Obsolete - Use 037-4000-00 (obsolete)
use part #037-4000-00
$312.34
5 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
8 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks - DB-112
$35.48
9 019-6019-00 019-6019-00 - Spring blade cupped washer bot tom spindle
$9.23
10 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
11 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
12.1 038-5400-00 038-5400-00 - 72" Gator Mulching Blade
$24.99
12 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
13 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
14 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
15 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley
$56.77
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
17 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
18 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
20 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
21 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
22 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
23 210-6006-00 210-6006-00 - Discharge Chute Assembly For 72" Decks 2012 & Older (See Models Used On For Detail)
$141.97
24 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
25 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
26 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
27 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
28 019-4807-00 019-4807-00 - 5/8 Lockwasher Zinc
$2.99
29 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 GR 5 Hex Bolts
$2.99
30 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
31 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$141.97
32 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
33 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
34 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 GR 5 Hex Bolt
$2.99
35 014-7204-00 014-7204-00 - 2007-2018 72" Spindle Cover
$42.58
36A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
36 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
38 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
39 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
40 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
43 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
44 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
45 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
46 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
47 018-1010-00 018-1010-00 - 3/8-16x3-1/2 Grade 5 Hex Bolt
$2.99
48 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
49 060-7210-00 060-7210-00 - 72" Deck Adjustable Front (Left Gate) (See Models Used On For Detail)
$103.99
50 060-7211-00 060-7211-00 - 72" Deck Adjustable Front (Right Gate) (See Models Used On For Detail)
$103.99
51 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
52 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
