2011 Lightning and Pup Engine - 26Hp Kawasaki LC

Engine - 26Hp Kawasaki LC

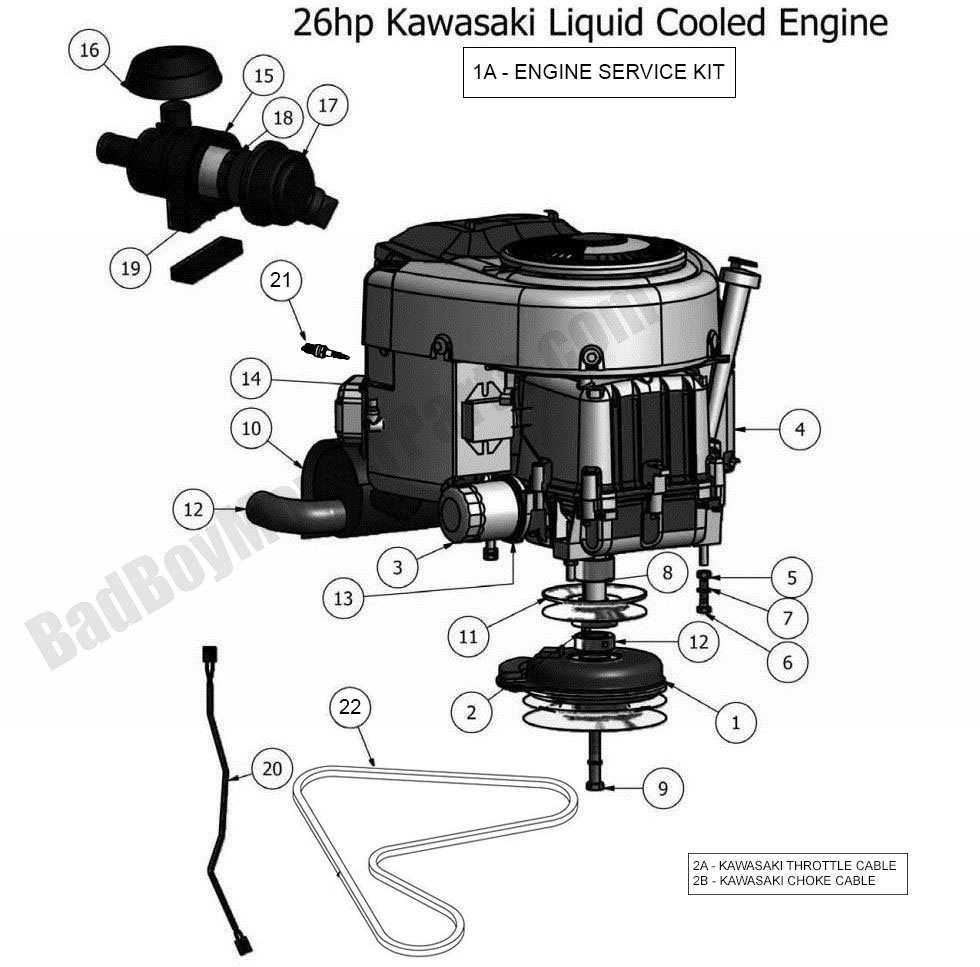

The Bad Boy Mower parts diagram for the 2011 Lightning and Pup Engine (26Hp Kawasaki LC) is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 Lightning and Pup models. Find all of your Bad Boy mowers 2011 Lightning and Pup parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 Lightning and Pup Engine (26Hp Kawasaki LC). If you are not able to find the Bad Boy parts for your 2011 Lightning and Pup please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2011 Lightning and Pup Engine - 26Hp Kawasaki LC
  Position Number SKU Product Title Price
1A 063-2000-02 063-2000-02 - Kawasaki FX850 & FX1000 Engine Service Kit
$124.74
1 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
2 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
3 063-8017-00 063-8017-00 - Kawasaki Oil Filter Fits 26/27 Liquid Cool/31 KAW
$21.39
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
7 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
8 025-6000-00 025-6000-00 - 1 1/8 x.910 Spacer (Clutch)
$12.77
9 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
10 015-0006-00 015-0006-00 - Exhaust-26hp Kawasaki Engine Liquid Cooled Lightning
$227.15
11 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Key way IS NOT included. (See Models Used On For Details)
$35.48
12A 015-5400-00 015-5400-00 - Exhaust Extension
$21.28
12 025-5000-00 025-5000-00 - 1.125 ID X 1.750 OD X.625 THK Spacer Zinc
$6.51
13 051-5404-00 051-5404-00 - Kawasaki Oil Drain (FX691V)
$28.11
14 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
15 015-2705-00 015-2705-00 - 30KO pre-2010/26KA complete canis.
$288.89
16 088-3060-00 088-3060-00 - Rain Cap for Donaldson
$53.49
18 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
19 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
20 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
21 015-8001-00 015-8001-00 - Spark plug-Kawasaki (NGK or Equivalent)
$8.79
22 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
