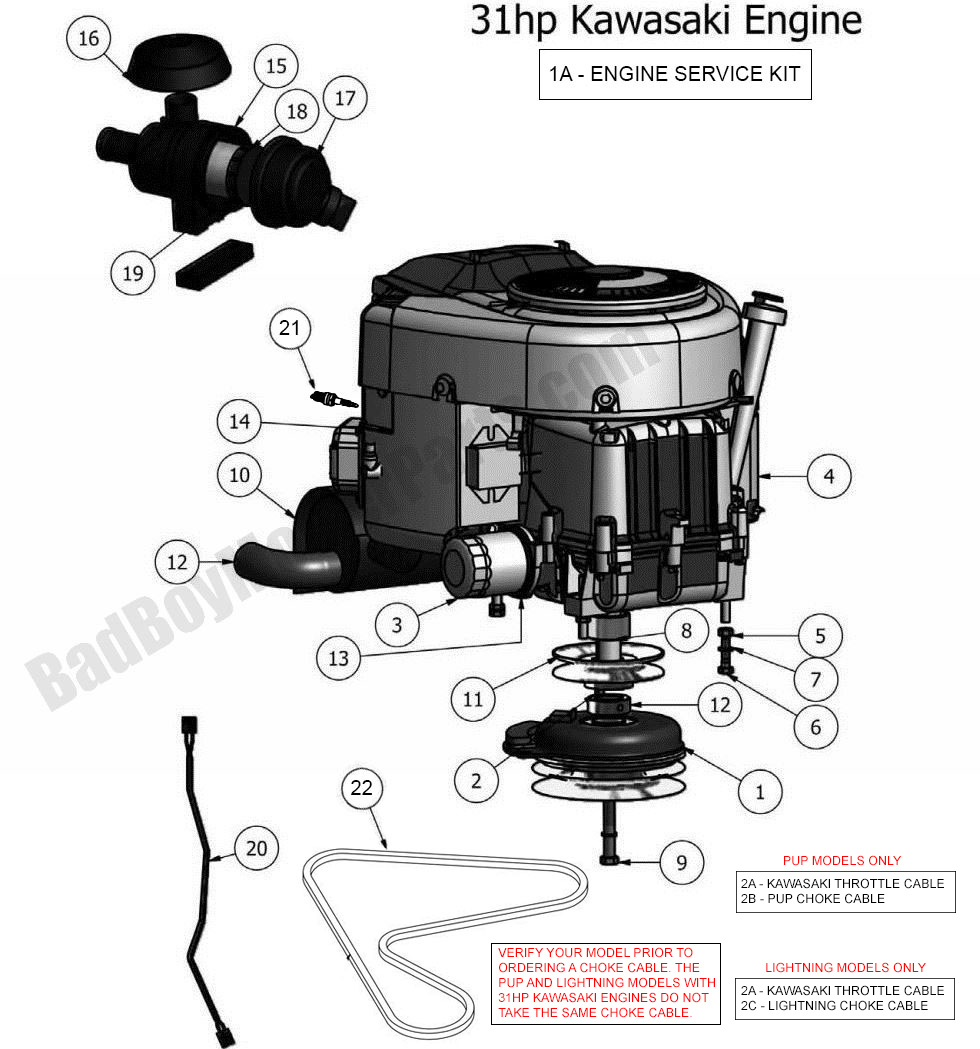

2011 Lightning and Pup Engine - 31Hp Kawasaki

Engine - 31Hp Kawasaki

The Bad Boy Mower parts diagram for the 2011 Lightning and Pup Engine (31Hp Kawasaki) is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 Lightning and Pup models. Find all of your Bad Boy mowers 2011 Lightning and Pup parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 Lightning and Pup Engine (31Hp Kawasaki). If you are not able to find the Bad Boy parts for your 2011 Lightning and Pup please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2011 Lightning and Pup Engine - 31Hp Kawasaki
  Position Number SKU Product Title Price
1A 063-2000-02 063-2000-02 - Kawasaki FX850 & FX1000 Engine Service Kit
$124.74
1 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
2 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
3 063-8017-00 063-8017-00 - Kawasaki Oil Filter Fits 26/27 Liquid Cool/31 KAW
$21.39
4 015-0031-00 015-0031-00 - Kawa Engine FX-850V-AS15R
$3632.65
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
7 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
8 025-5032-00 025-5032-00 - 1.130 ID X 1.75 OD X 1 Length Spacer Zinc Countersunk
$11.34
9 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
10 015-0035-00 015-0035-00 - Exhaust for 31hp Kawasaki
$218.63
11 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Key way IS NOT included. (See Models Used On For Details)
$35.48
12 025-5000-00 025-5000-00 - 1.125 ID X 1.750 OD X.625 THK Spacer Zinc
$6.51
13 051-5404-00 051-5404-00 - Kawasaki Oil Drain (FX691V)
$28.11
14 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19

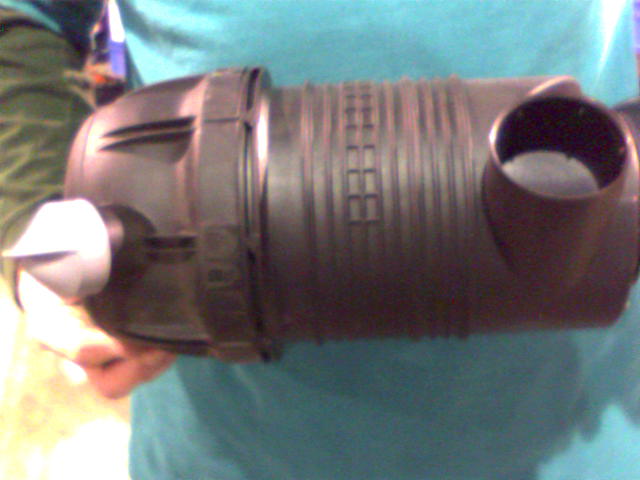

15 063-2040-00 063-2040-00 - OBSOLETE use 015-2705-00 31KAW Canister Complete Old Style (obsolete)
use part #015-2705-00
$288.89

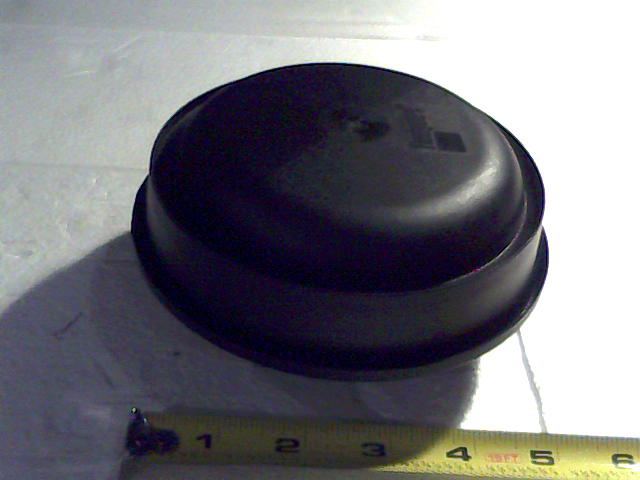

16 063-2045-00 063-2045-00 - Rain Cap-Fits all Canisters (obsolete)
use part #088-3060-00
$53.49

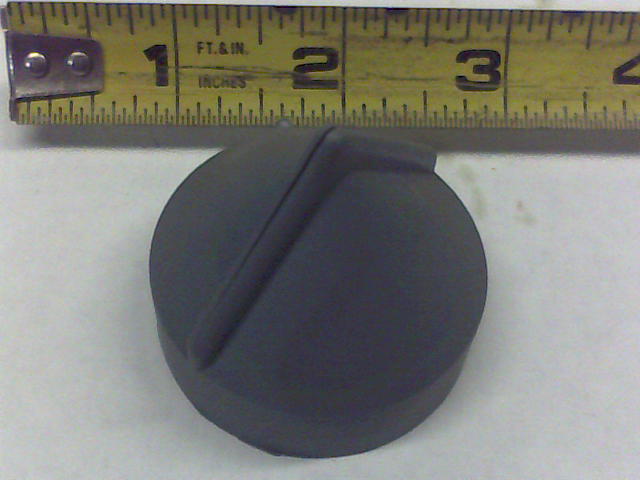

17 015-0029-00 015-0029-00 - Canister Debris Plug-31hp Kawasaki, and Kohler Canister Style Air Filter Assemblies
$29.09
18 063-2032-00 063-2032-00 - 31hp Kaw Out Air Filter. Old Tapered Style
$46.00
19 063-2031-00 063-2031-00 - 31hp Kawasaki Inner Air Filter. Old Tapered Style
$28.39
20 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
21 015-8001-00 015-8001-00 - Spark plug-Kawasaki (NGK or Equivalent)
$8.79
22 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
