2011 Lightning and Pup Seat Frame

Seat Frame

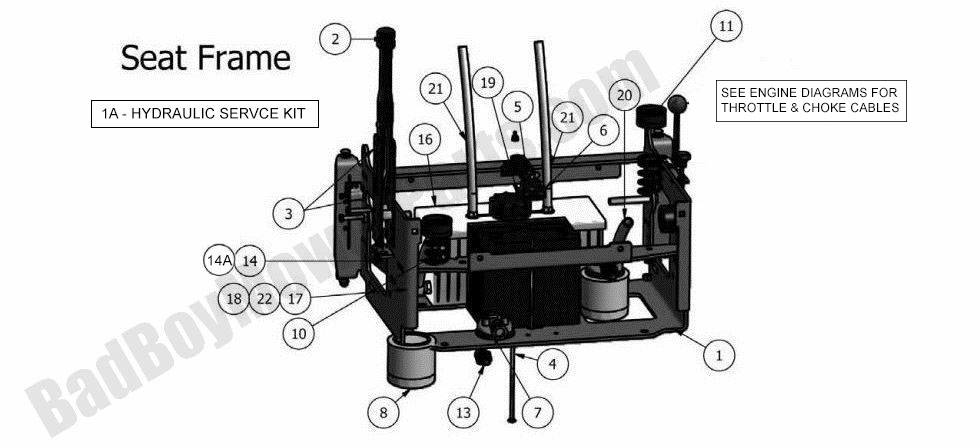

The Bad Boy Mower parts diagram for the 2011 Lightning and Pup Seat Frame is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 Lightning and Pup models. Find all of your Bad Boy mowers 2011 Lightning and Pup parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 Lightning and Pup Seat Frame. If you are not able to find the Bad Boy parts for your 2011 Lightning and Pup please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2011 Lightning and Pup Seat Frame
  Position Number SKU Product Title Price
1A 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
1 080-6010-00 080-6010-00 - Seat Frame (See Models Used On For Details)
$427.99
2 069-8054-00 069-8054-00 - Brake Handle Kit
$127.77
3 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
4 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
5 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
6 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
7 062-8013-00 062-8013-00 - Filter Head-Hydraulic Filter
$24.92
8 063-8014-00 063-8014-00 - Hydraulic Filter For Units with Pumps and Wheel Motors
$31.17
9 055-8017-00 055-8017-00 - Throttle Cable - For Outlaws With FX850 Kawasaki Engines and All Pup/Lightning/AOS Gas Models without 32hp Briggs
$45.29
10 034-8045-00 034-8045-00 - Seat Spring
$20.49
11 014-8047-00 014-8047-00 - Rubber Cap Cover
$8.93
12A 054-8017-00 054-8017-00 - 62" Choke Cable For MZ, ZT, CZT, Maverick, Rebel, Rogue, Outlaw XP Also Works On Outlaw & Pup/Lightning Models with 30hp Kohler (Not For 2013-2016 MZs With Kawasaki Engines)
$25.80
12 054-8016-00 054-8016-00 - 47" Choke Cable For AOS, Pup, Lightning, 2016-2018 Outlaw/Outlaw Extreme Units with Kawasaki FX730 & FX850 Engines and 2013-2016 MZ Units With Kawasaki Engines. (Will Not Work On Units With 30hp Engines)
$28.88
13 024-5050-00 024-5050-00 - Filter Head Fitting, 1/2 x 1/2 , 208-108
$8.01
14A 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
14 064-8055-00 064-8055-00 - Short Brake Cable
$51.47
17 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
18 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
19 066-8050-00 066-8050-00 - Hydraulic Tank Cap w/Dipstick (See Models Used On For Details)
$31.22
20 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
21 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
22 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
23 055-8021-00 055-8021-00 - Throttle Cable - Used on Pup/Lightning Models With 32hp Briggs Engines and all Outlaw models without FX850 Kawasaki Engines
$45.29
