2011 ZT Seat & Tank

Seat & Tank

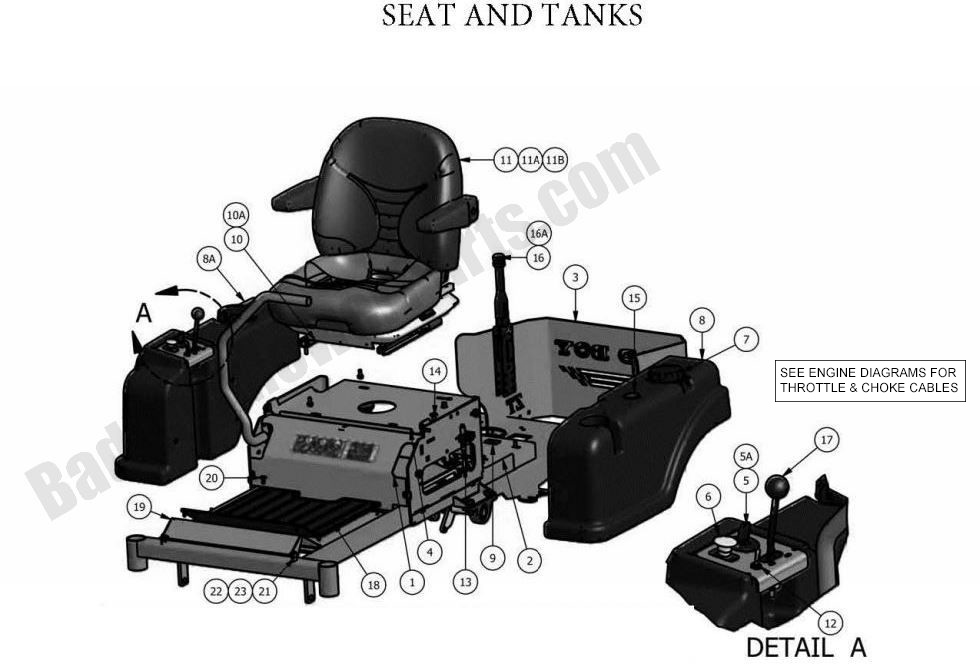

The Bad Boy Mower parts diagram for the 2011 ZT Seat & Tank is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 ZT models. Find all of your Bad Boy mowers 2011 ZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 ZT Seat & Tank. If you are not able to find the Bad Boy parts for your 2011 ZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2011 ZT Seat & Tank
  Position Number SKU Product Title Price
1 014-3410-00 014-3410-00 - 2010-2012 CZT/ZT Cooler Cover w/o Choke Hole
$92.29
2 026-0052-00 026-0052-00 -Pump Cover Plate (See Models Used On For Details)
$83.77
3 026-0053-00 026-0053-00 -Rear Plate (See Models Used On For Details)
$245.99
4 026-1010-00 026-1010-00 - ZT Seat Plate 2010 (See Models Used On For Details)
$99.32
5A 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
5 042-9000-00 042-9000-00 - Ignition Key
$4.06
6 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
7 066-8076-00 066-8076-00 - Non-Tethered Fuel Kelch Cap - 3.5 Neck
$32.05
8A 067-7000-50 067-7000-50 - 2008-2012 Right Fuel Tank/ZT
$352.99
8 067-7001-50 067-7001-50 - 2008-2012 Left Fuel Tank/ZT
$385.99
9 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
10A 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
10 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
11A 071-8090-00 071-8090-00 - Black ZT Seat - No Armrests OBSOLETE use 071-1000-00 (obsolete)
use part #071-1000-00
$460.99
11B 071-3000-00 071-3000-00 - Milsco Suspension Seat-AOS/Lig OBSOLETE use 071-4050-17 (obsolete)
use part #071-4050-17
$813.99
11 071-2010-00 071-2010-00 - Wise Seat - ZT - WM1976 OBSOLETE use 071-2040-00 (obsolete)
use part #071-2040-17
$599.99
12 078-8077-00 078-8077-00 - Joystick - Deck Lift
$34.29
13 064-8055-00 064-8055-00 - Short Brake Cable
$51.47
14 054-8017-00 054-8017-00 - 62" Choke Cable For MZ, ZT, CZT, Maverick, Rebel, Rogue, Outlaw XP Also Works On Outlaw & Pup/Lightning Models with 30hp Kohler (Not For 2013-2016 MZs With Kawasaki Engines)
$25.80
15 067-4025-00 067-4025-00 - Fuel Gauge and Grommet (See Models Used On For Details)
$54.56
16A 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
16 069-8054-00 069-8054-00 - Brake Handle Kit
$127.77
17 055-8020-00 055-8020-00 - Throttle-53" (See Models Used On For Details)
$38.97
18 081-2010-00 081-2010-00 - 2010-2015 CZT & 2010-2013 ZT Floor Mat
$28.45
19 079-3410-00 079-3410-00 - 2010-2012 ZT Floor Panel
$106.99
20 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
21 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
22 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
23 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
