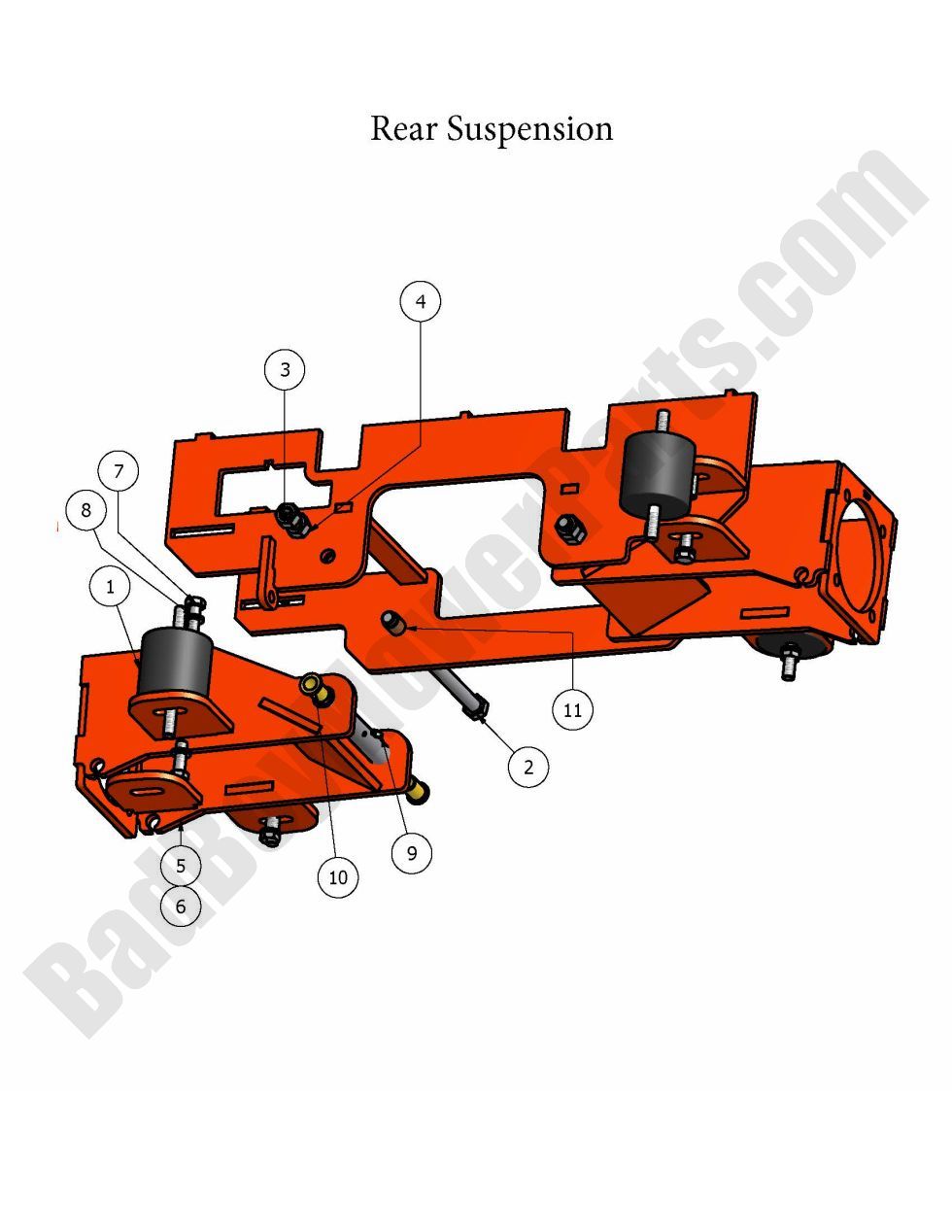

2008 Pup and Lightning Rear Suspension

Rear Suspension

The Bad Boy Mower parts diagram for the 2008 Pup and Lightning Rear Suspension is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2008 Pup and Lightning models. Find all of your Bad Boy mowers 2008 Pup and Lightning parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2008 Pup and Lightning Rear Suspension. If you are not able to find the Bad Boy parts for your 2008 Pup and Lightning please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2008 Pup and Lightning Rear Suspension
  Position Number SKU Product Title Price
1 032-9000-00 032-9000-00 - Isolator - Green Dot
$70.97
2 018-2051-00 018-2051-00 - 5/8 x 10 Bolt Grade 8
$15.61
3 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
4 013-5020-00 013-5020-00 - 5/8-11 Hex Nuts Zinc
$3.51
5 070-8000-00 070-8000-00 - 60 Suspension Kit Wheel Motor
$312.34
6 070-8001-00 070-8001-00 - 72 Suspension Kit Wheel Motor
$283.95
7 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 GR 5 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
8 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
9 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
10 032-5050-00 032-5050-00 - Bushing Sleeve - Suspension (obsolete)
use part #032-6033-00
$3.84
