2013 Outlaw & Outlaw Extreme 54" Deck Assembly

54" Deck Assembly

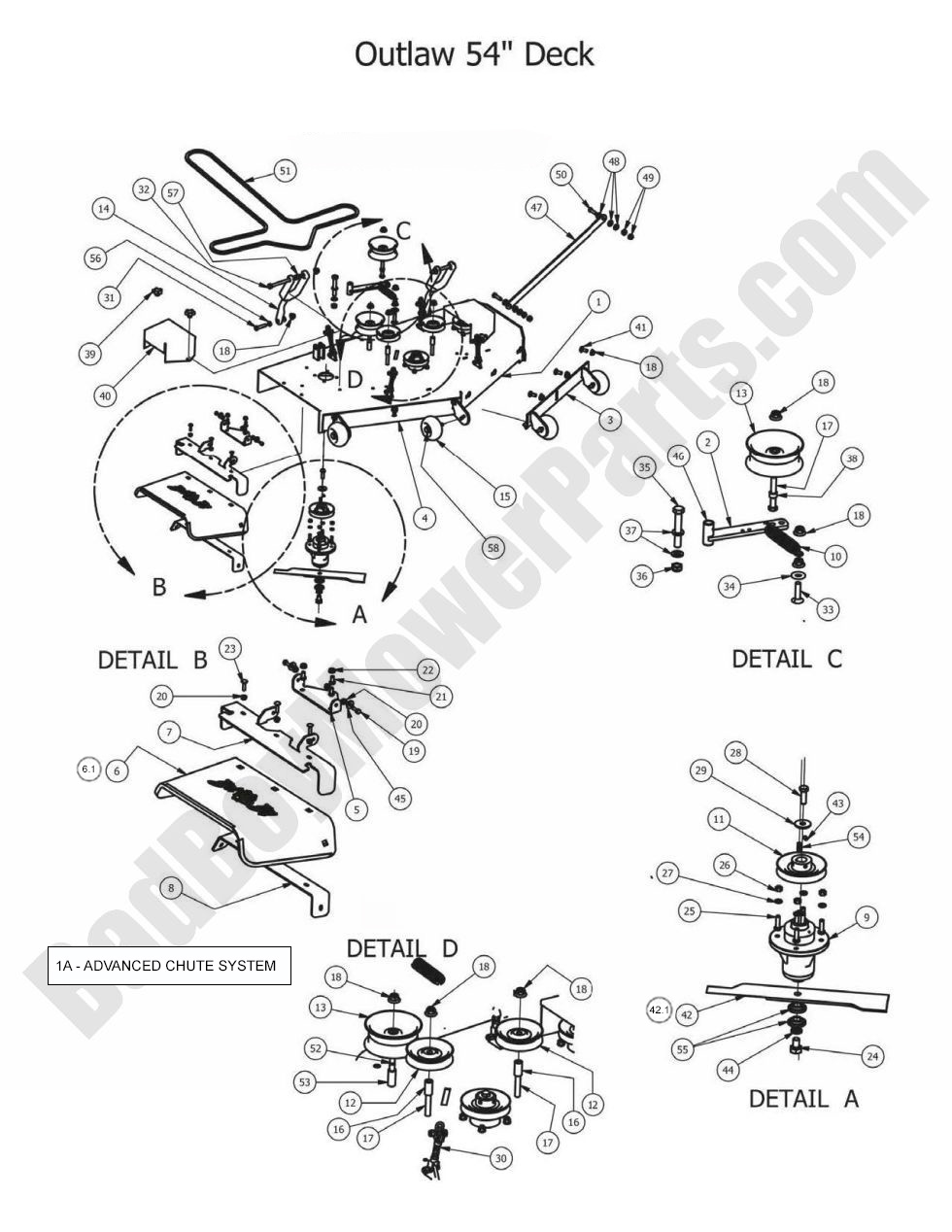

The Bad Boy Mower parts diagram for the 2013 Outlaw 54" Deck is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 Outlaw models. Find all of your Bad Boy mowers 2013 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 Outlaw 54" Deck. If you are not able to find the Bad Boy parts for your 2013 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 Outlaw & Outlaw Extreme 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6007-00 088-6007-00 - Advanced Chute System for 2010-2018 54" Outlaw Models
$266.99
1 060-5500-00 060-5500-00 - 2010-2014 54" Outlaw/XP Deck - Shell Only
$1176.99
2 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
3 060-5520-00 060-5520-00 - 54 Outlaw & Stand On Adjustable Deck Front (Left Gate)
$85.99
4 060-5530-00 060-5530-00 - 54 Outlaw & Stand On Adjustable Deck Front (Right Gate)
$85.99
5 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
6.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$160.49
6 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
7 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
8 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
9 037-8000-50 037-8000-50 - Double Bearing Spindle - Aluminum Housing (obsolete)
use part #037-4000-00
$312.34
10 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
11 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
12 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
13 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley
$56.77
14 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$141.97
15A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
15 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
16 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
17 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
19 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
20 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
21 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
22 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
23 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
24 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
25 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
26 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
27 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
28 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
29 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
30 047-2000-00 047-2000-00 - 2 - Link Adjustable Deck Hanger - Outlaw Models (obsolete)
use part #046-6048-98
$32.09
31 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 GR 5 Hex Bolts
$2.99
32 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt Grade 5
$3.29
33 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
34 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
35 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
36 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
37 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
38 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
39 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
40 014-6010-00 014-6010-00 - Plastic Pulley Cover (See Models Used On For Details) (obsolete)
use part #014-4000-00
$28.39
41 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
42.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
42 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
43 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
44 019-4807-00 019-4807-00 - 5/8 Lockwasher Zinc
$2.99
45 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
46 039-6945-98 039-6945-98 - Deck Idler Assy (See Models Used On For Details)
$78.08
47 028-6060-00 028-6060-00 - Panhard Linkage Bar Outlaw and Diesel Decks (See Models Used On For Detail)
$12.77
48 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
49 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
50 018-5049-00 018-5049-00 - 1/2-13 X 2 GR 5 Hex Bolts Zinc
$2.99
51 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
52 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt Yello
$4.39
53 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
54 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
55 037-8001-00 037-8001-00 - Double Bearing for Spindle (See Models Used On For Details)
$46.78
56 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$5.82
57 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
58 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
