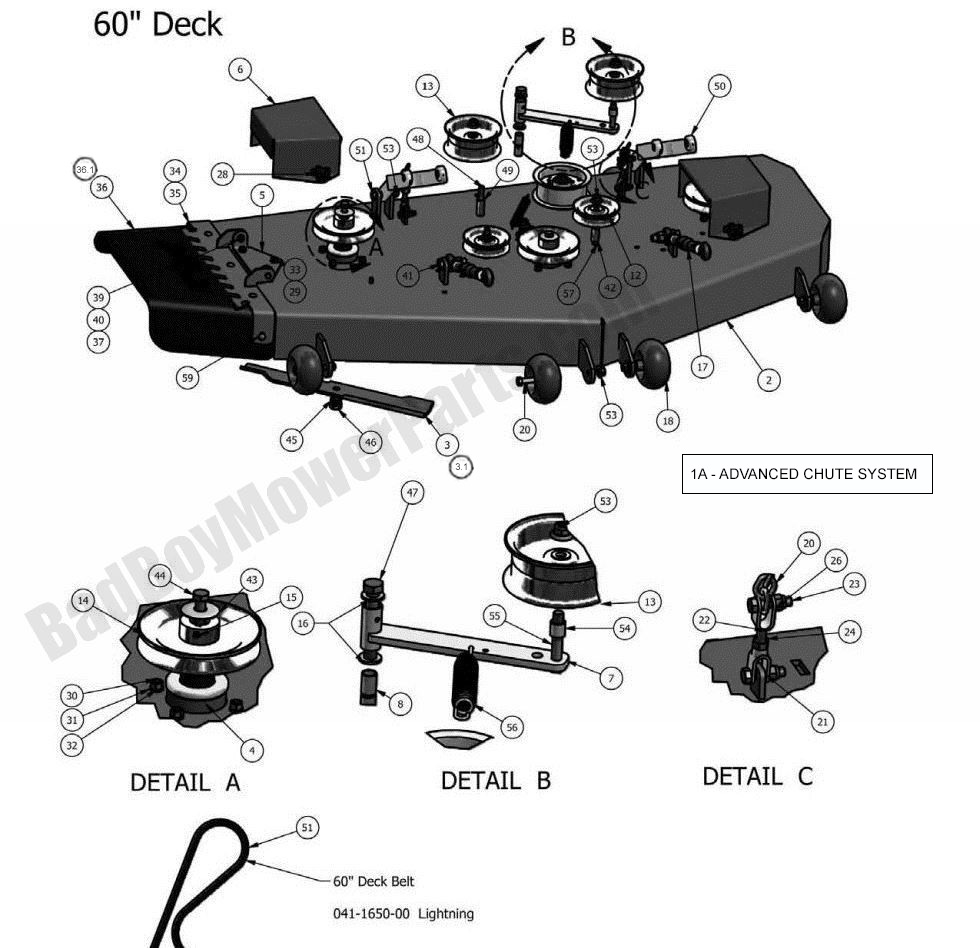

2011 Lightning and Pup 60" Deck Assembly

60" Deck Assembly

The Bad Boy Mower parts diagram for the 2011 Lightning and Pup 60" Deck is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 Lightning and Pup models. Find all of your Bad Boy mowers 2011 Lightning and Pup parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 Lightning and Pup 60" Deck. If you are not able to find the Bad Boy parts for your 2011 Lightning and Pup please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2011 Lightning and Pup 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2024 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$266.99
3.1 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2024 Revolt SD 42"
$22.99
3 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2024 Revolt SD 42"
$22.99
4 037-8000-00 037-8000-00 - Spindle - Obsolete - Use 037-4000-00 (obsolete)
use part #037-4000-00
$312.34
5 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
6 014-6010-00 014-6010-00 - Plastic Pulley Cover (See Models Used On For Details) (obsolete)
use part #014-4000-00
$28.39
7 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
8 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
12 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
13 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley
$56.77
14 033-6004-00 033-6004-00 - 6 1/4 Spindle Deck Pulley 60 & 61 Decks DDB-100 (without set screw)
$35.48
15 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
16 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
17 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
18 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
21 046-6044-00 046-6044-00 - Female Yoke (See Models Used On For Details)
$10.77
22 046-6048-00 046-6048-00 - Male Yoke
$15.60
23 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
24 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
25 047-4000-00 047-4000-00 - 4 - Link Adjustable Deck Hanger - Pup Models (obsolete)
use part #046-6048-98
$32.09
26 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
28 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
29 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
30 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
31 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
33 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
34 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
35 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
36.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$160.49
36 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
37 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
39 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
40 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
41 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 GR 5 Hex Bolts
$2.99
42 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
43 019-6019-00 019-6019-00 - Spring blade cupped washer bot tom spindle
$9.23
44 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
45 019-4807-00 019-4807-00 - 5/8 Lockwasher Zinc
$2.99
46 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
47 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
48 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 GR 5 Hex Bolts
$2.99
49 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
50 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$141.97
51 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
53 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
54 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
55 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
56 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
57 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
59 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
60 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
