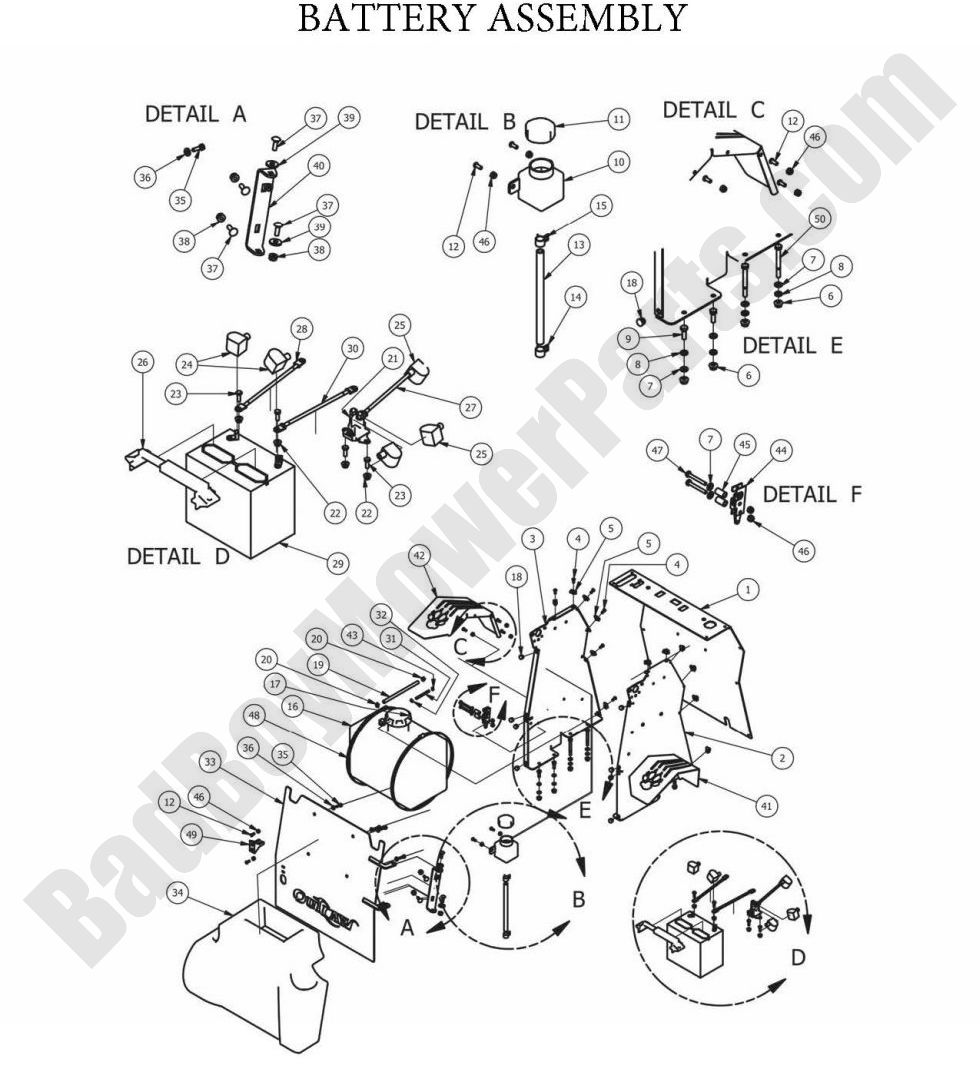

2013 Stand-On Battery Assembly

Battery Assembly

The Bad Boy Mower parts diagram for the 2013 Stand-On Battery Assembly is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 Stand-On models. Find all of your Bad Boy mowers 2013 Stand-On parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 Stand-On Battery Assembly. If you are not able to find the Bad Boy parts for your 2013 Stand-On please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 Stand-On Battery Assembly
  Position Number SKU Product Title Price
1 079-4020-00 079-4020-00 - 2012-2014 Stand On Podium Front Panel
$106.99
2 079-4030-00 079-4030-00 - 2012-2014 Stand on Podium Panel Right Side
$21.39
4 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
5 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
6 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
7 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
8 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
9 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
10 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
11 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
13 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
14 072-8066-00 072-8066-00 - 1/2 Hose Clamp
$2.99
15 072-8065-00 072-8065-00 - 3/8 Hose Clamp - CTB-16-STFS
$2.99
16 067-0001-00 067-0001-00 - Fuel Tank w/Gauge for 2012-2014 Stand On
$246.99
17 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$21.23
18 014-3010-00 014-3010-00 - 5/8 Round Insert - Deck
$2.99
19 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
20 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
21 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
22 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
23 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
24 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
25 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
26 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
27 086-0003-00 086-0003-00 - Alternator to Starter Cable
$7.79
28 064-0030-00 064-0030-00 - 24 inch Black Cable
$18.72
30 064-5301-00 064-5301-00 - 12 Red Battery Cable
$17.16
31 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
32 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 Vinyl Hose (See Models Used On For Detail)
$2.99
34 071-6000-00 071-6000-00 - Seat Cushion-Stand On Mower
$235.39
35 018-4007-00 018-4007-00 - 1/4-20 X 1 GR 5 Hex Bolts Zinc
$2.99
37 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
38 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
39 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
40 039-0070-00 039-0070-00 - Back Cover Hinge Bracket
$14.19
43 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
44 052-1000-00 052-1000-00 - Latch-Stand On
$32.09
45 025-0011-00 025-0011-00 - Brake/Latch Spacer-Stand On
$3.29
46 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
47 018-0011-00 018-0011-00 - 1/4-20 x 2 Hex Bolt
$2.99
48 072-0050-00 072-0050-00 - Fuel Tank Clamp - Stand On & Walk Behind
$8.01
50 018-4701-00 018-4701-00 - 5/16-18 X 3 GR 5 Hex Bolt Zinc
$2.99
