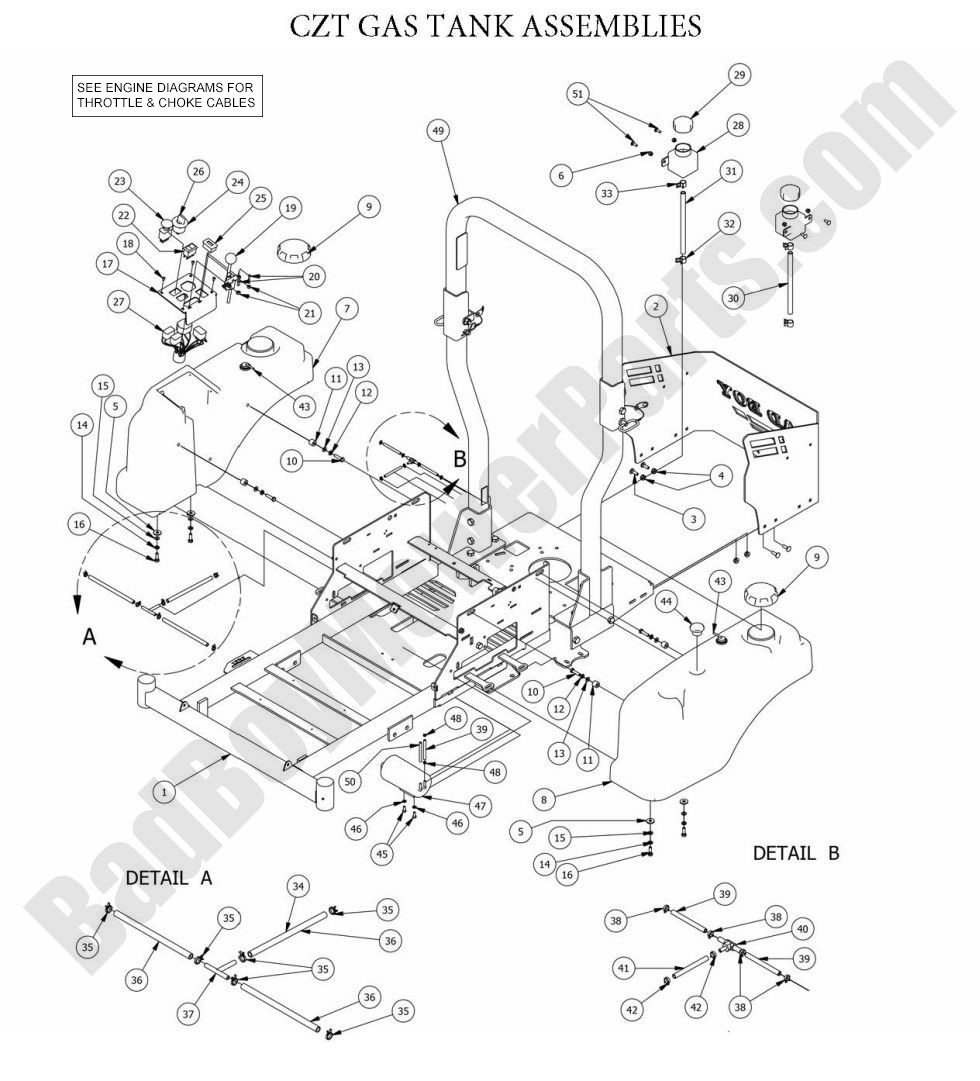

2014 CZT Elite Gas Tank Assembly

Gas Tank Assembly

BadBoyMowerParts.com has the parts diagrams for the 2014 CZT Elite models. Find all of your Bad Boy mowers 2014 CZT Elite parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2014 CZT Elite Gas Tank Assembly. If you are not able to find the Bad Boy parts for your 2014 CZT Elite please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2014 CZT Elite Gas Tank Assembly
  Position Number SKU Product Title Price
1 070-5410-00 070-5410-00 - 2013-2015 CZT, 2013-2016 ZT Frame
$1283.99
2 026-0080-00 026-0080-00 - Rear Plate (See Models Used On For Details)
$245.99
3 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
6 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
7 067-5000-50 067-5000-50 - Right Fuel Tank (See Models Used On For Details)
$352.99
8 067-5001-50 067-5001-50 - Left Fuel Tank (See Models Used On For Details)
$352.99
9 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$21.23
10 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 GR 5 Hex Bolt
$2.99
11 025-2000-00 025-2000-00 -.380x.735x.470 Nylon Spacer
$2.99
12 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
13 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
16 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
17 079-3450-00 079-3450-00 - 2013-2017 Control Panel (See Models Used On For Details)
$31.22
18 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
19 055-8020-00 055-8020-00 - Throttle-53" (See Models Used On For Details)
$38.97
20 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
21 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
22 078-3000-00 078-3000-00 - Rocker Deck Lift Switch
$37.41
23 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
24 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
25 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
26 042-9000-00 042-9000-00 - Ignition Key
$4.06
27 086-3050-00 086-3050-00 - Wiring Harness- ZT 2007 and Up (obsolete)
use part #086-3050-17
$388.88
28 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
29 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
30 051-6098-00 051-6098-00 - 2013-2014 ZT/CZT Hydraulic Hose Assembly
$7.28
31 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
32 072-8066-00 072-8066-00 - 1/2 Hose Clamp
$2.99
34 051-2013-00 051-2013-00 - 2013 ZT, 2013-2015 CZT Fuel Line Assembly
$36.84
35 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
36 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
37 073-8068-00 073-8068-00 - Fuel Line T
$9.70
38 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 Vinyl Hose (See Models Used On For Detail)
$2.99
39 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
40 073-2000-00 073-2000-00 - Brass Fuel Line T - Diesels
$10.21
41 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
42 072-8072-00 072-8072-00 - 1/4" Vinyl Hose Clamp
$3.29
43 067-6052-00 067-6052-00 - Rollover Valve-White (obsolete)
use part #067-6070-00
$24.60
44 067-4050-00 067-4050-00 - Fuel Gauge-Tanks (See Models Used On For Details)
$46.00
45 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT CL 8
$2.99
46 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
47 067-0020-00 067-0020-00 - Carbon Canister ZT,CZT,Outlaw RY652CC
$62.40
48 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
49 089-3075-00 089-3075-00 - Folding ROPS For 2013-2015 CZT/ZT
$1069.99
51 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
