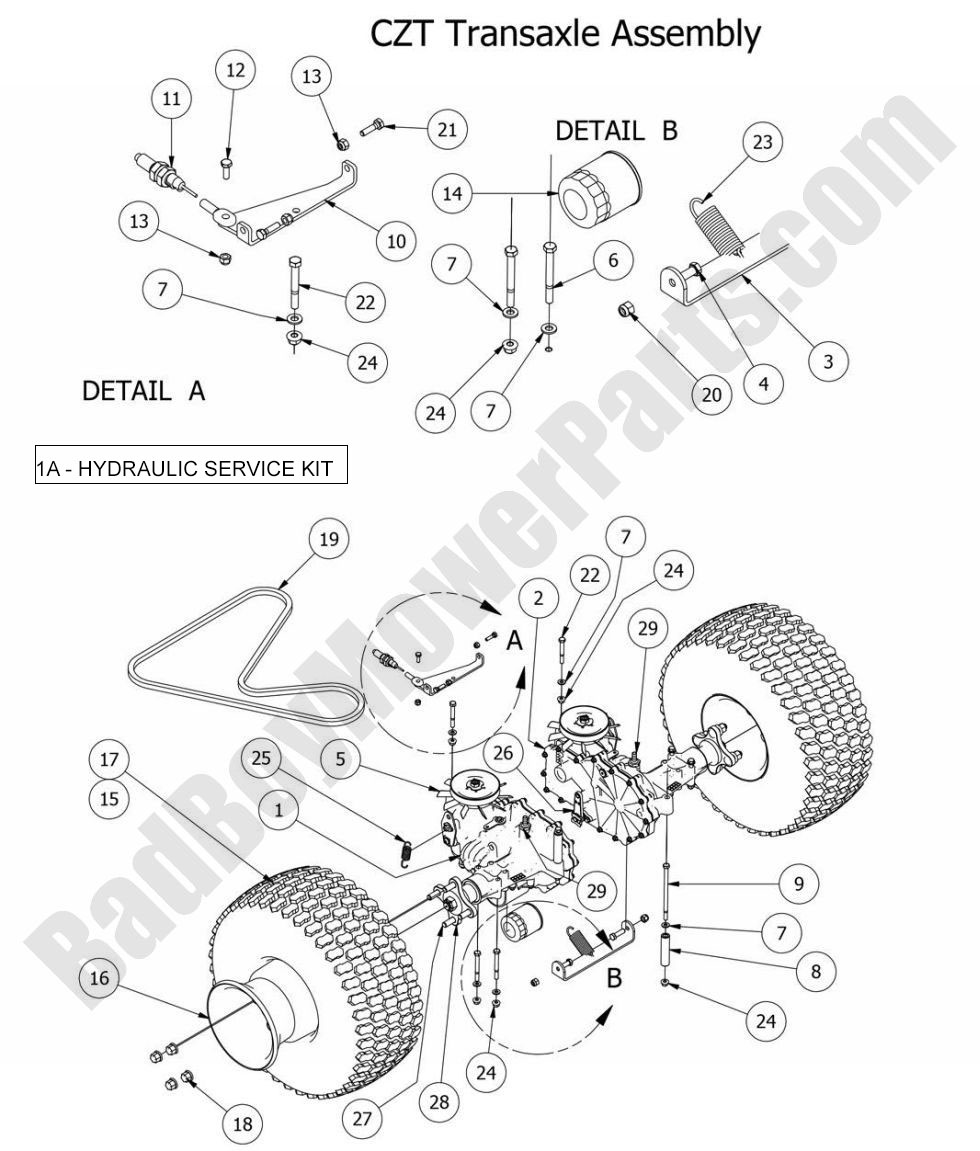

2014 CZT Elite Transaxle Assembly

Transaxle Assembly

BadBoyMowerParts.com has the parts diagrams for the 2014 CZT Elite models. Find all of your Bad Boy mowers 2014 CZT Elite parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2014 CZT Elite Transaxle Assembly. If you are not able to find the Bad Boy parts for your 2014 CZT Elite please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2014 CZT Elite Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - 2020 Models and Older - ZT2800 - ZT3100 - ZT3200 & ALL ZT3400 Hydro Service Package With Expansion Tanks
$104.74
1 050-6000-00 050-6000-00 - ZT3400 Transaxle - Left (obsolete)
use part #050-6000-01
$877.39
2 050-6001-00 050-6001-00 - ZT3400 Transaxle - Right (obsolete)
use part #050-6001-01
$877.39
3 028-4801-00 028-4801-00 - Crossover Bar (See Models Used On For Detail)
$28.10
4 018-3000-00 018-3000-00 - 3/8-16 X 2 GR 5 Hex Bolts Zinc
$2.99
5 050-2072-00 050-2072-00 - Fan/Pulley Kit for CZT
$63.96
6 018-4701-00 018-4701-00 - 5/16-18 X 3 GR 5 Hex Bolt Zinc
$2.99
7 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
8 025-5340-00 025-5340-00 -.365 ID X.752 OD X 3.313Lengt h Spacer Zinc
$8.74
9 018-5355-00 018-5355-00 - 5/16-18 X 6 GR 5 Hex Bolt Zinc
$2.99
10 039-0053-00 039-0053-00 - Crossover Brake Bracket
$14.19
11 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
12 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
13 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
14 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
15 022-5460-00 022-5460-00 - 23 x 10.50 -12 Assembly w/Negative Offset Wheel 54"CZT (One Tire & Rim Assy)
$266.99
16 022-7061-00 022-7061-00 - 12x8.5 Orange Wheel - Solid (One Rim Only)
$195.99
17 022-5351-00 022-5351-00 - 23 x 10.50 - 12 Tire (One Tire Only)
$192.99
18 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
19 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
20 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
21 018-4007-00 018-4007-00 - 1/4-20 X 1 GR 5 Hex Bolts Zinc
$2.99
22 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
23 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
24 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
25 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
26 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28
27 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
28 050-2077-00 050-2077-00 - 5 Bolt Hub Kit CZT TRANS
$95.20
29 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
