2011 Diesels Deck Lift & Actuator

Deck Lift & Actuator

The Bad Boy Mower parts diagram for the 2011 Diesels Deck Lift & Actuator is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 Diesels models. Find all of your Bad Boy mowers 2011 Diesels parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 Diesels Deck Lift & Actuator. If you are not able to find the Bad Boy parts for your 2011 Diesels please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

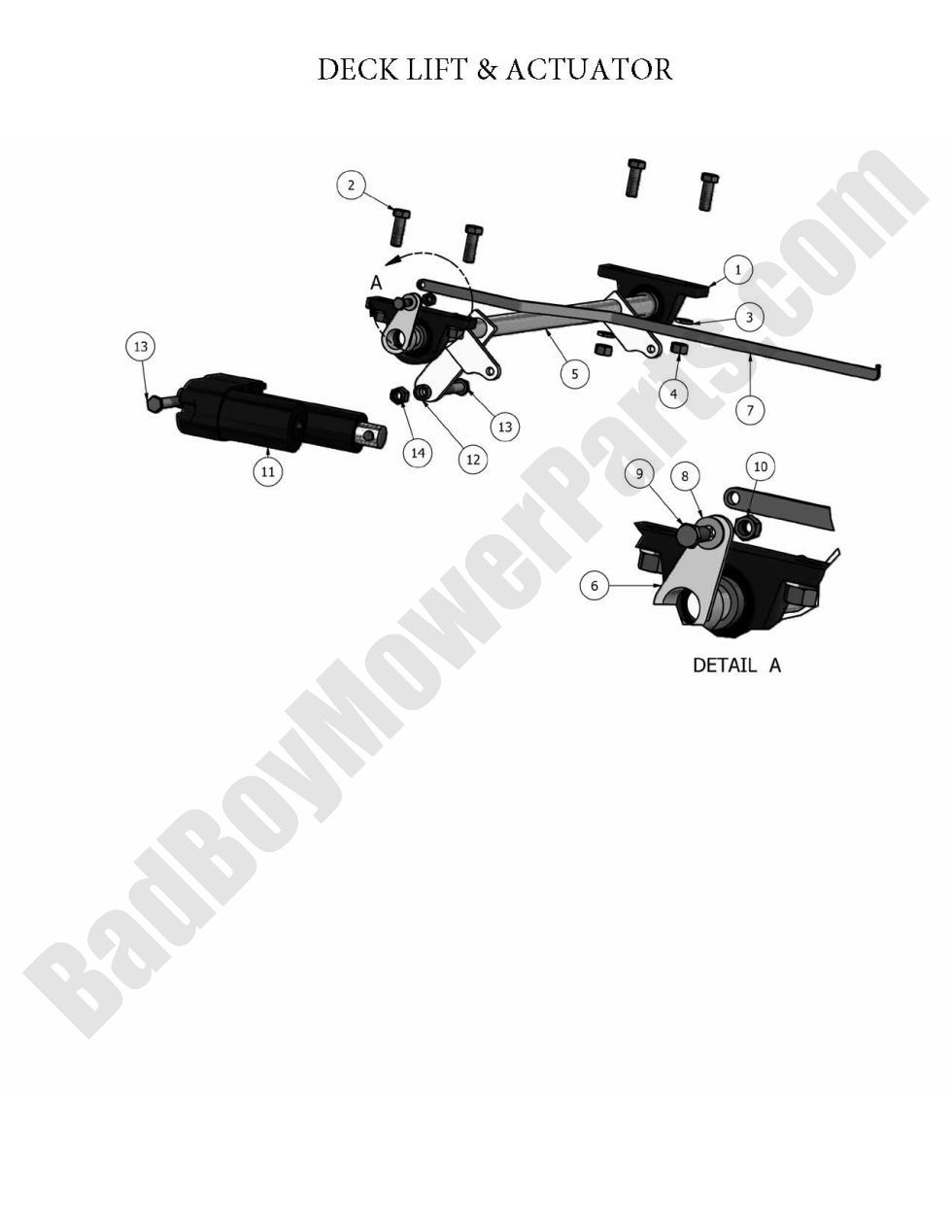

2011 Diesels Deck Lift & Actuator
  Position Number SKU Product Title Price
1 017-7008-00 017-7008-00 - 1" Pillow Block Bearing
$21.29
2 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 GR 5 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
3 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
6 031-7000-00 031-7000-00 - Height Indicator Tab and Collar (See Models Used On For Details)
$11.29
7 028-2501-00 028-2501-00 - Height Indicator (See Models Used On For Detail)
$22.71
8 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
9 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
10 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
11 035-7033-00 035-7033-00 - Actuator
$437.36
12 025-7036-00 025-7036-00 - 1/2 Set Collar w/set collar
$4.60
13 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
14 013-6037-00 013-6037-00 - 1/2-13 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
