2013 Outlaw & Outlaw Extreme Drive Arm Assembly

Drive Arm Assembly

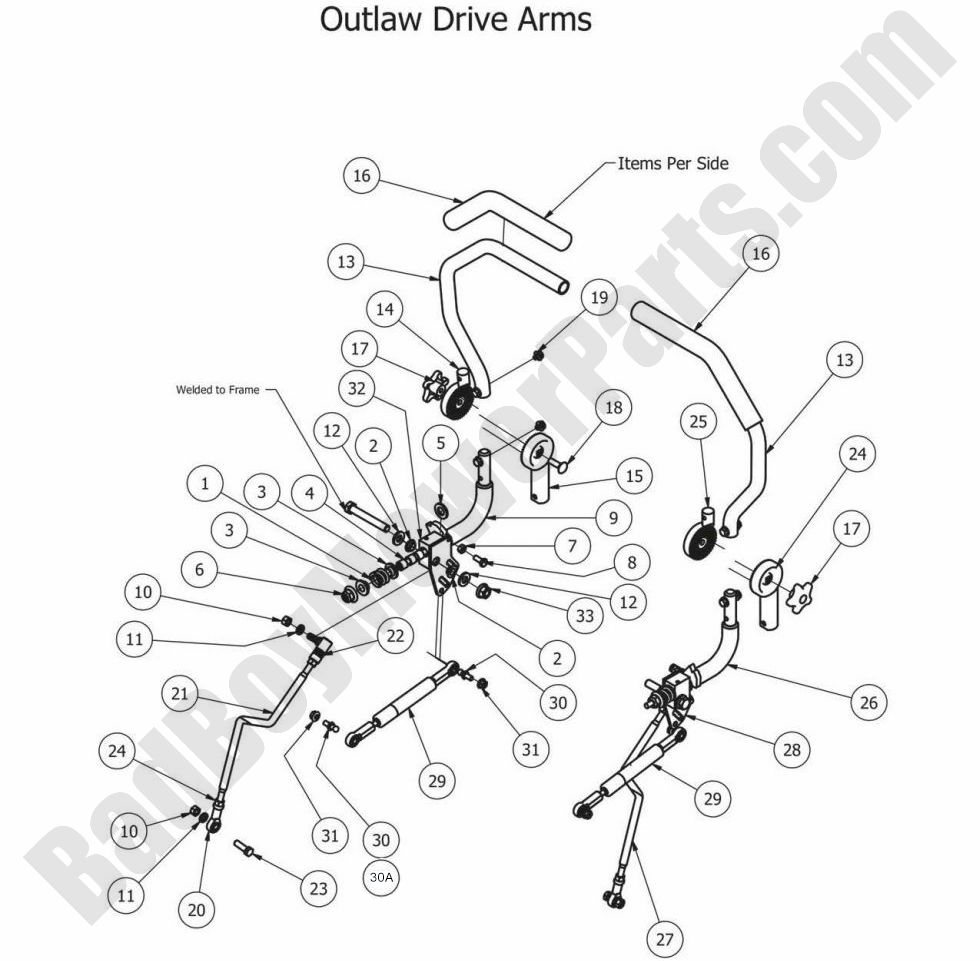

The Bad Boy Mower parts diagram for the 2013 Outlaw Drive Arm Assembly is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 Outlaw models. Find all of your Bad Boy mowers 2013 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 Outlaw Drive Arm Assembly. If you are not able to find the Bad Boy parts for your 2013 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 Outlaw & Outlaw Extreme Drive Arm Assembly
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$181.89
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washe
$2.99
4 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
5 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
8 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
9 031-9020-00 031-9020-00 - Left Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
10 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
11 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
12 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Wa sher for 2012 Drive Arm Blocks
$4.83
13 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
14 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24
15 031-9014-00 031-9014-00 - Left Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9014-70
$53.24
16 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
17 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$4.39
18 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
19 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt-Steerin g Arms
$2.99
20 048-3000-00 048-3000-00 - Spherical Rod End-Outlaw Only (See Models Used On For Details)
$14.19
21 035-2100-00 035-2100-00 - 2013-2014, 2018 Outlaw/Extreme Push Rod-Left
$36.08
22 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
23 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
24 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24
25 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
26 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-9025-70
$85.17
27 035-2110-00 035-2110-00 - 2013-2014, 2018 Outlaw/Extreme Push Rod-Right
$36.08
28 027-8901-00 027-8901-00 - 2013-2015 ZT/CZT, 2013-2016 Outlaw, 2016 Maverick Drive Lever Housing (Right)
$14.19
29 087-3000-00 087-3000-00 - Steering Damper for Outlaw
$62.40
30A 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper for Outlaw
$4.83
30 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
31 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
32 027-8900-00 027-8900-00 - Drive Lever Housing (Left)2013 cZT, ZT, (obsolete)
use part #031-0017-98
$31.23
33 013-0085-00 013-0085-00 - 1/2-13 HEX FLANGE (GR.G) ZC

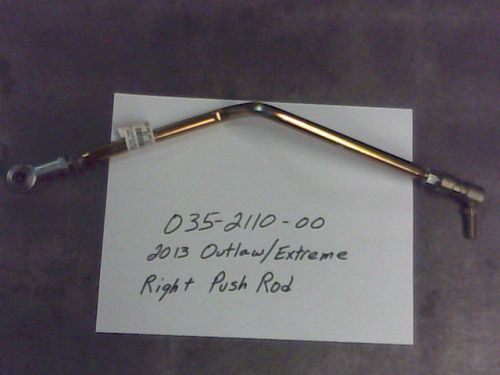

$2.99
