2011 Lightning and Pup Engine - 32Hp Briggs

Engine - 32Hp Briggs

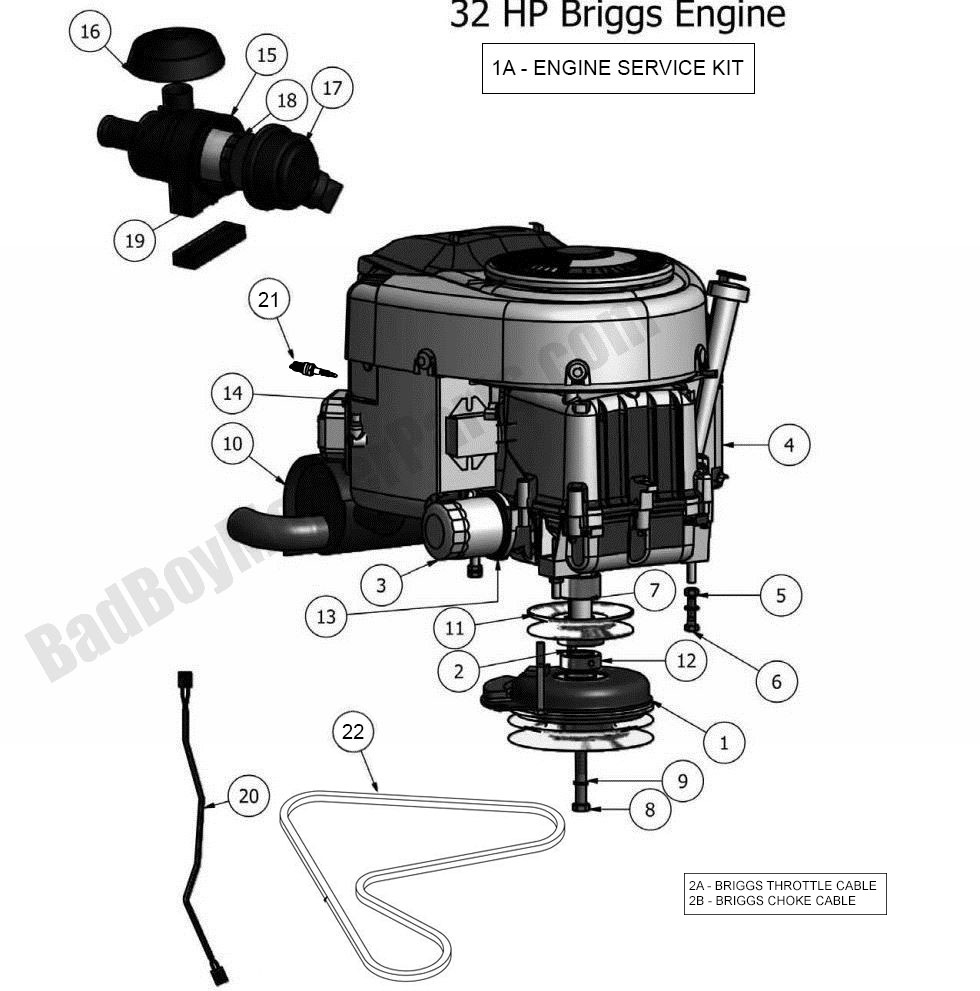

The Bad Boy Mower parts diagram for the 2011 Lightning and Pup Engine (32Hp Briggs) is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 Lightning and Pup models. Find all of your Bad Boy mowers 2011 Lightning and Pup parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 Lightning and Pup Engine (32Hp Briggs). If you are not able to find the Bad Boy parts for your 2011 Lightning and Pup please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2011 Lightning and Pup Engine - 32Hp Briggs
  Position Number SKU Product Title Price
1A 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc Engine Service Kit
$127.15
1 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
2 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
3 063-8018-00 063-8018-00 - Oil Filter
$21.39
4 015-0032-00 015-0032-00 - 32hp Vanguard Engine
$3632.65
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
6 018-2071-00 018-2071-00 - 3/8 x 2 1/2 Hex Tap Bolt - Ful l Thread - ACS
$2.99
7 025-5032-00 025-5032-00 - 1.130 ID X 1.75 OD X 1 Length Spacer Zinc Countersunk
$11.34
8 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
9 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
10 015-0034-00 015-0034-00 - Exhaust-32/36hp Vanguard Engine
$198.76
11 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Key way IS NOT included. (See Models Used On For Details)
$35.48
12 025-5000-00 025-5000-00 - 1.125 ID X 1.750 OD X.625 THK Spacer Zinc
$6.51
13 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
14 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19

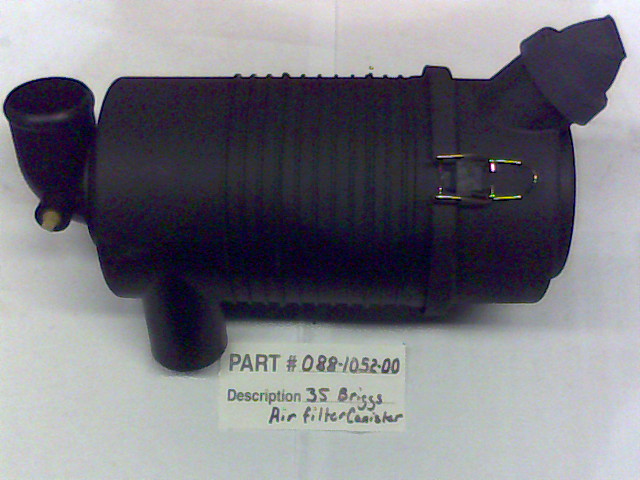

15 088-1052-00 088-1052-00 - 35 Briggs Air Filter Canister
$159.43
16 088-1066-00 088-1066-00 - 32hp Vanguard Rain Cap
$96.29

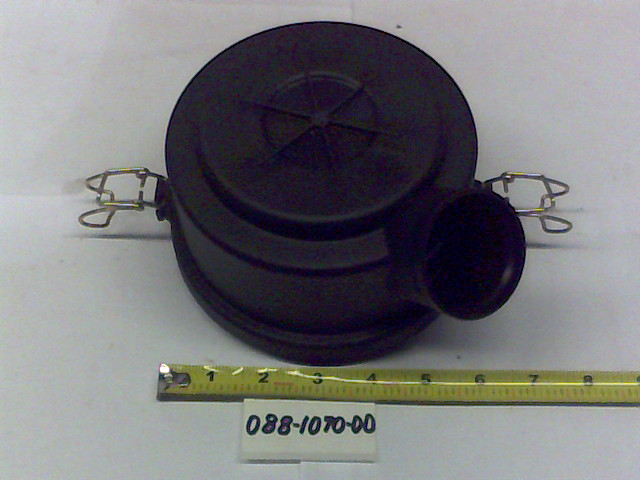

17 088-1070-00 088-1070-00 - Canister End Cap
$96.29
18 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
19 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
20 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
21 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
22 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
