2010 CZT Engine - Briggs

Engine - Briggs

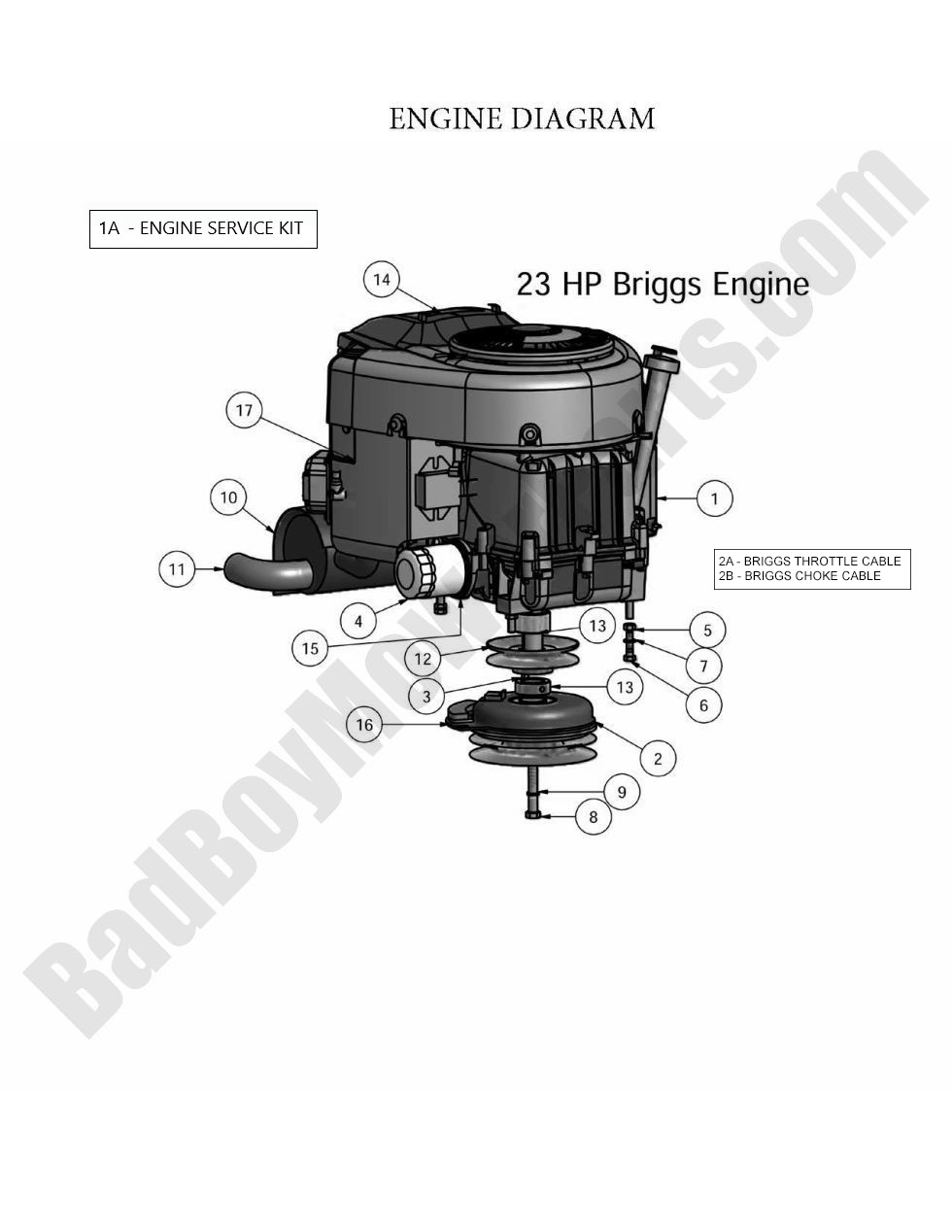

The Bad Boy Mower parts diagram for the 2010 CZT Engine is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 CZT models. Find all of your Bad Boy mowers 2010 CZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 CZT Engine. If you are not able to find the Bad Boy parts for your 2010 CZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2010 CZT Engine - Briggs
  Position Number SKU Product Title Price
1A 063-2000-03 063-2000-03 - Briggs Vanguard 23hp Service Kit
$189.64
2 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
3 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
4 063-8018-00 063-8018-00 - Oil Filter
$21.39
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
7 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
8 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
10 015-0033-00 015-0033-00 - Exhaust - 23hp Vanguard Engine
$220.06
11 015-5400-00 015-5400-00 - Exhaust Extension
$21.28
12 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Key way IS NOT included. (See Models Used On For Details)
$35.48
13 025-5000-00 025-5000-00 - 1.125 ID X 1.750 OD X.625 THK Spacer Zinc
$6.51
14 063-8050-00 063-8050-00 - Canister Air Filter-23 Vanguar
$48.14
15 015-5401-00 015-5401-00 - Kohler/Briggs Oil Drain Valve
$35.48
16 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
17 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
