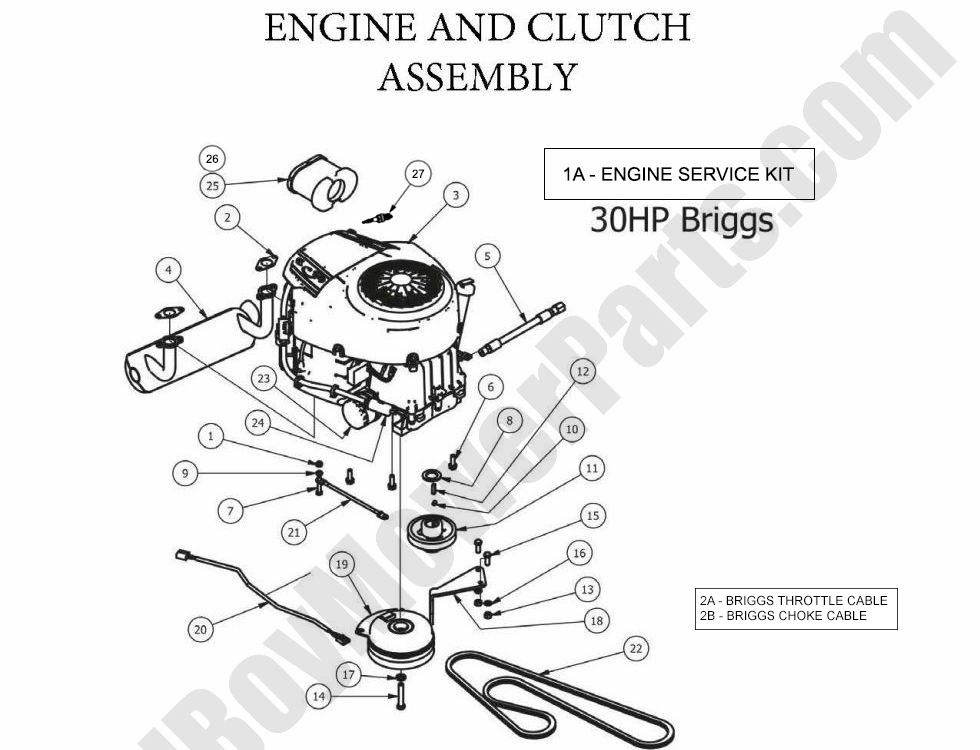

2013 Outlaw & Outlaw Extreme Engine - 30Hp Briggs

Engine - 30Hp Briggs

The Bad Boy Mower parts diagram for the 2013 Outlaw Engine & Clutch (30Hp Briggs) is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 Outlaw models. Find all of your Bad Boy mowers 2013 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 Outlaw Engine & Clutch (30Hp Briggs). If you are not able to find the Bad Boy parts for your 2013 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 Outlaw & Outlaw Extreme Engine - 30Hp Briggs
  Position Number SKU Product Title Price
1A 063-2000-04 063-2000-04 - Briggs 30hp & CXI Engine Service Kit
$92.93
1 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
2 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
4 015-3031-00 015-3031-00 - Exhaust for 30hp Briggs Engine 2011-2015
$184.56
5 015-5401-00 015-5401-00 - Kohler/Briggs Oil Drain Valve
$35.48
6 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
7 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
8 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
9 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
10 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
11 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
12 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
13 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
14 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
15 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
16 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
17 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
18 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
19 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
20 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
21 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
22 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
23 063-8018-00 063-8018-00 - Oil Filter
$21.39
24 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
25.0 063-3003-00 063-3003-00 - 30hp & CXI Briggs Air Filter
$32.58
26 063-1000-00 063-1000-00 - Pre-Cleaner for 063-3003-00
$12.83
27 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
