2013 Outlaw & Outlaw Extreme Engine - 30Hp Kohler

Engine - 30Hp Kohler

The Bad Boy Mower parts diagram for the 2013 Outlaw Engine & Clutch (30Hp Kohler) is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 Outlaw models. Find all of your Bad Boy mowers 2013 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 Outlaw Engine & Clutch (30Hp Kohler). If you are not able to find the Bad Boy parts for your 2013 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 Outlaw & Outlaw Extreme Engine - 30Hp Kohler
  Position Number SKU Product Title Price
1A 063-2000-09 063-2000-09 - Kohler Command and Kohler ECV749
$121.25
1 015-0030-00 015-0030-00 - 27hp Kohler Engine 810cc
$3632.65
2 015-0039-00 015-0039-00 - Exhaust 30 Kohler
$641.99
3 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
4 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
5 015-5401-00 015-5401-00 - Kohler/Briggs Oil Drain Valve
$35.48
6 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
7 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
8 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
9 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
10 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
11 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
12 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
13 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
14 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
15 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
16 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
17 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
18 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
19 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
20 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
21 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
22 015-5400-00 015-5400-00 - Exhaust Extension
$21.28
23 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
24 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
25 063-5400-00 063-5400-00 - Bad Boy Oil Filter (Long) - Kohler Engines
$20.32

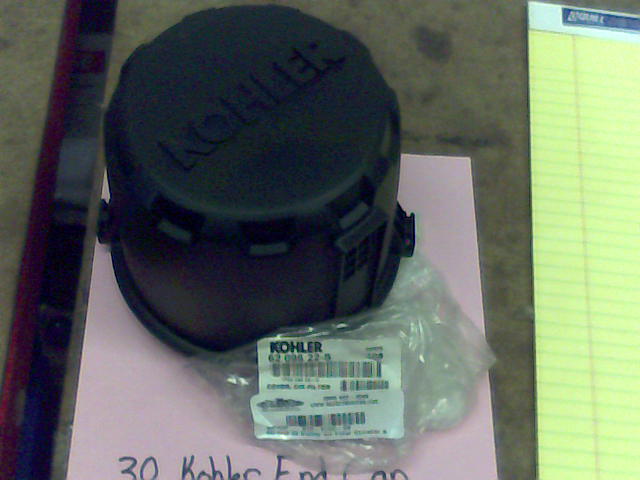

26 015-2704-00 015-2704-00 - 30 Kohler End Cap - New Style
$32.09

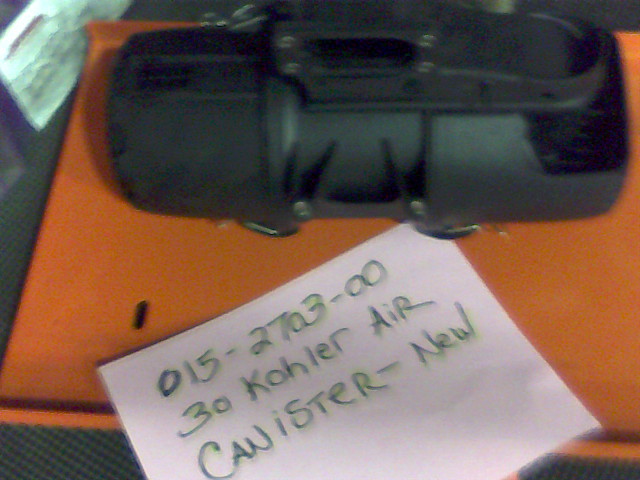

27 015-2703-00 015-2703-00 - Kohler Air Canister
$397.54
28 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
29 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
30 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
31 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
