2013 Outlaw & Outlaw Extreme Engine - 36Hp Vanguard

Engine - 36Hp Vanguard

The Bad Boy Mower parts diagram for the 2013 Outlaw Engine & Clutch (36Hp Vanguard) is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 Outlaw models. Find all of your Bad Boy mowers 2013 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 Outlaw Engine & Clutch (36Hp Vanguard). If you are not able to find the Bad Boy parts for your 2013 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

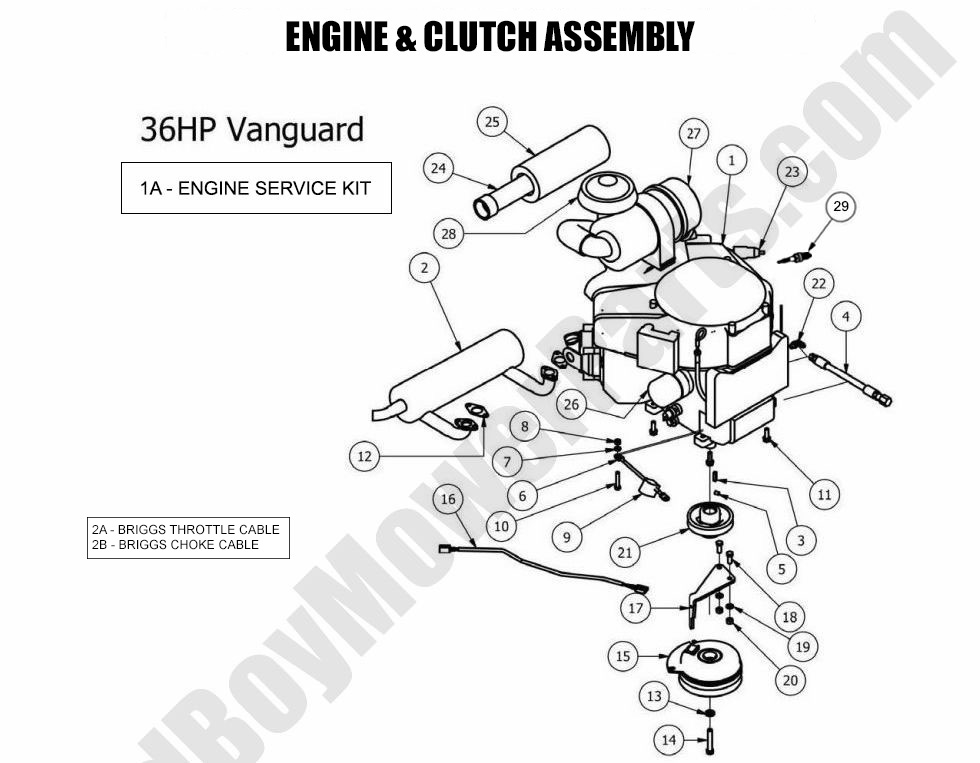

2013 Outlaw & Outlaw Extreme Engine - 36Hp Vanguard
  Position Number SKU Product Title Price
1A 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc Engine Service Kit
$127.15
1 015-3600-00 015-3600-00 - 36hp Briggs Vanguard Engine
$4686.00
2 015-0034-00 015-0034-00 - Exhaust-32/36hp Vanguard Engine
$198.76
3 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
4 051-5400-00 051-5400-00 - Oil Drain Hose-35/31hp Briggs
$24.12
5 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
6 064-8061-00 064-8061-00 - 30 Black Battery Cable (See Models Used On For Details)
$22.92
7 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
8 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
9 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
10 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
11 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
12 015-2708-00 015-2708-00 - Exhaust Gasket - 36hp Vanguard
$16.04
13 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
14 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
15 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
16 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
17 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
18 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
19 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
20 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
21 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
22 036-5400-00 036-5400-00 - Adaptor for 35/31hp Briggs Oil Drain
$32.05
23 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
24 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
25 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
26 063-8018-00 063-8018-00 - Oil Filter
$21.39
27 015-2705-00 015-2705-00 - 30KO pre-2010/26KA complete canis.
$288.89
28 063-2045-00 063-2045-00 - Rain Cap-Fits all Canisters (obsolete)
use part #088-3060-00
$53.49
29 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
