2013 Outlaw & Outlaw Extreme Engine - Kawasaki FS730V

Engine - Kawasaki FS730V

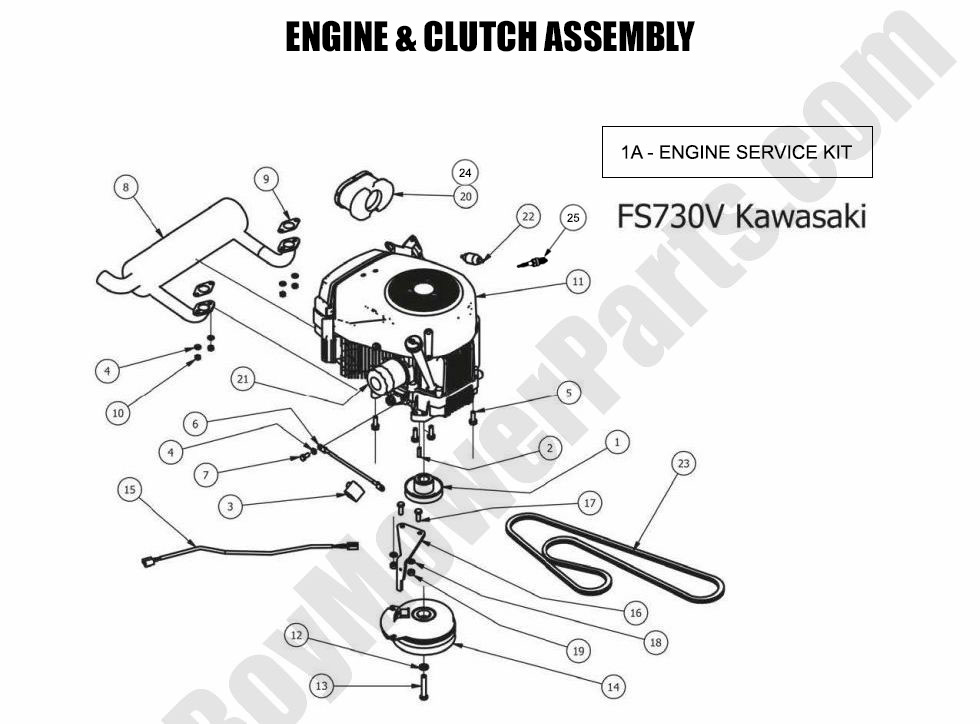

The Bad Boy Mower parts diagram for the 2013 Outlaw Engine & Clutch (Kaw. FS730V) is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 Outlaw models. Find all of your Bad Boy mowers 2013 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 Outlaw Engine & Clutch (Kaw. FS730V). If you are not able to find the Bad Boy parts for your 2013 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 Outlaw & Outlaw Extreme Engine - Kawasaki FS730V
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
2 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
3 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
4 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
5 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
6 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
7 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
8 015-0048-00 015-0048-00 - Exhaust for FS730V Outlaw 2013-2016
$140.57
9 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
10 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
11 015-0045-00 015-0045-00 - 26hp FS730V Engine FS730V-S14-R CZT Mowers
$2460.99
12 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
13 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
14 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
15 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
16 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
17 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
18 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
19 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
20 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
21 063-2096-00 063-2096-00 - Oil Filter Kawasaki FR/FS/FX691/FX730/FX751
$18.18
22.0 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
23 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
24 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
25 015-8001-00 015-8001-00 - Spark plug-Kawasaki (NGK or Equivalent)
$8.79
