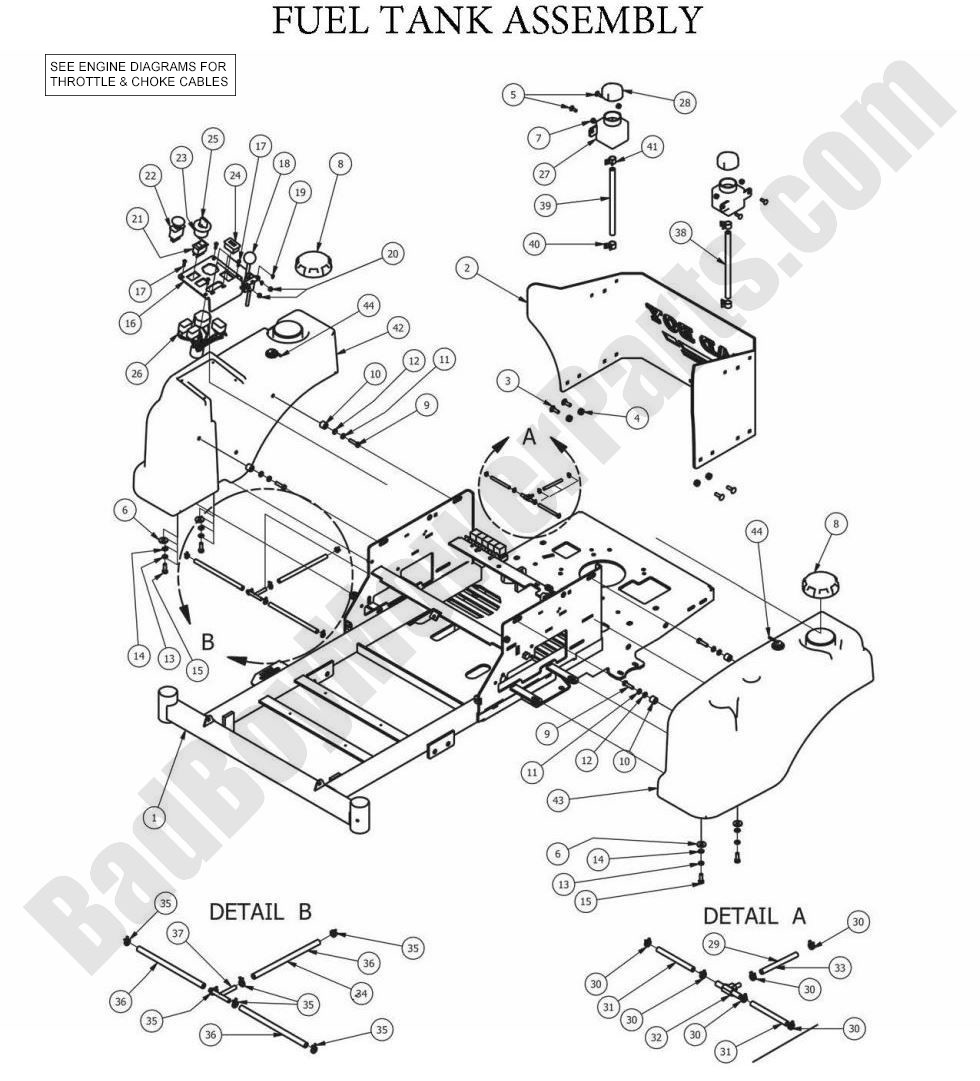

2013 ZT Elite Fuel Tank Assembly

Fuel Tank Assembly

The Bad Boy Mower parts diagram for the 2013 ZT Elite Fuel Tank Assembly is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 ZT Elite models. Find all of your Bad Boy mowers 2013 ZT Elite parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 ZT Elite Fuel Tank Assembly. If you are not able to find the Bad Boy parts for your 2013 ZT Elite please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 ZT Elite Fuel Tank Assembly
  Position Number SKU Product Title Price
1 070-5410-00 070-5410-00 - 2013-2015 CZT, 2013-2016 ZT Frame
$1283.99

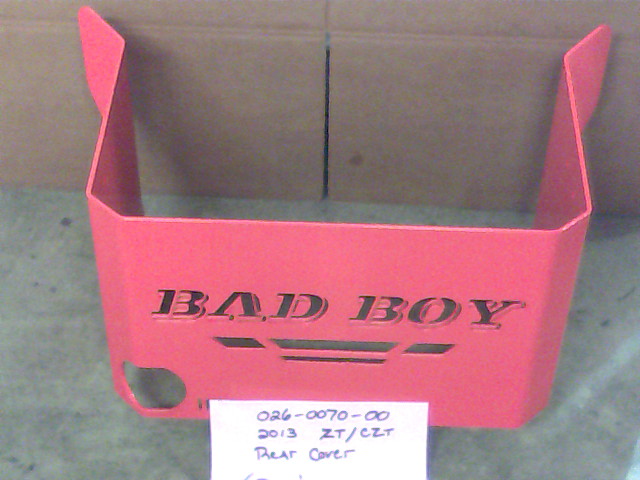

2 026-0070-00 026-0070-00 -Rear-Cover (See Models Used On For Details)
$192.99
3 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 018-8040-00 018-8040-00 - 1/4"X3/4" CARRIAGE BOLT
$2.99
6 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
7 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
8 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$21.23
9 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 GR 5 Hex Bolt
$2.99
10 025-2000-00 025-2000-00 -.380x.735x.470 Nylon Spacer
$2.99
11 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
12 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
15 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
16 079-3450-00 079-3450-00 - 2013-2017 Control Panel (See Models Used On For Details)
$31.22
17 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
18 055-8020-00 055-8020-00 - Throttle-53" (See Models Used On For Details)
$38.97
19 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
20 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
21 078-3000-00 078-3000-00 - Rocker Deck Lift Switch
$37.41
22 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
23 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
24 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
25 042-9000-00 042-9000-00 - Ignition Key
$4.06
26 086-3050-00 086-3050-00 - Wiring Harness- ZT 2007 and Up (obsolete)
use part #086-3050-17
$388.88
27 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
28 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60

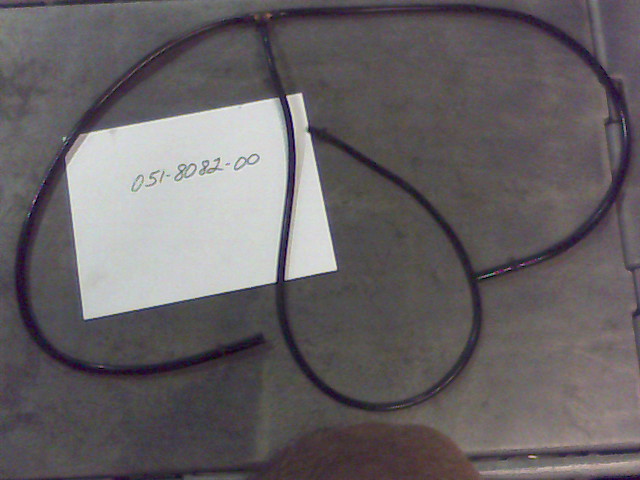

29 051-8082-00 051-8082-00 - 2013 ZT Air Hose Assembly
$11.76
30 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 Vinyl Hose (See Models Used On For Detail)
$2.99
31 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
32 073-2000-00 073-2000-00 - Brass Fuel Line T - Diesels
$10.21
33 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99

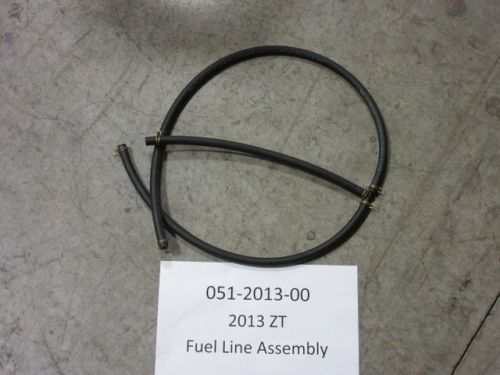

34 051-2013-00 051-2013-00 - 2013 ZT, 2013-2015 CZT Fuel Line Assembly
$36.84
35 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
36 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
37 073-8068-00 073-8068-00 - Fuel Line T
$9.70
38 051-6098-00 051-6098-00 - 2013-2014 ZT/CZT Hydraulic Hose Assembly
$7.28
39 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
40 072-8066-00 072-8066-00 - 1/2 Hose Clamp
$2.99

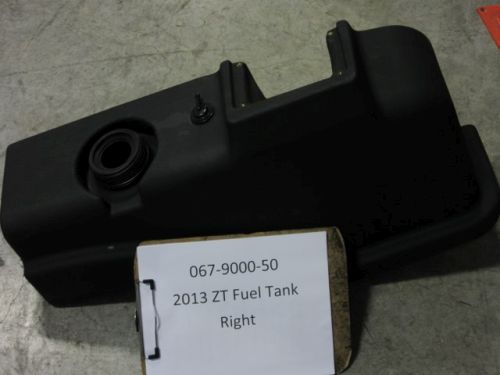

42 067-9000-50 067-9000-50 - 2013 ZT Fuel Tank-Right
$256.99
43A 067-4025-00 067-4025-00 - Fuel Gauge and Grommet (See Models Used On For Details)
$54.56

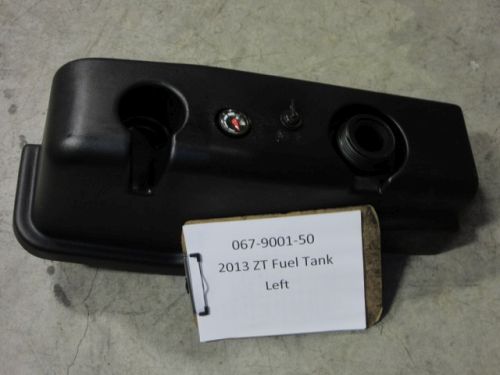

43 067-9001-50 067-9001-50 - 2013 ZT Fuel Tank-Left
$331.99
44 067-6052-00 067-6052-00 - Rollover Valve-White (obsolete)
use part #067-6070-00
$24.60
