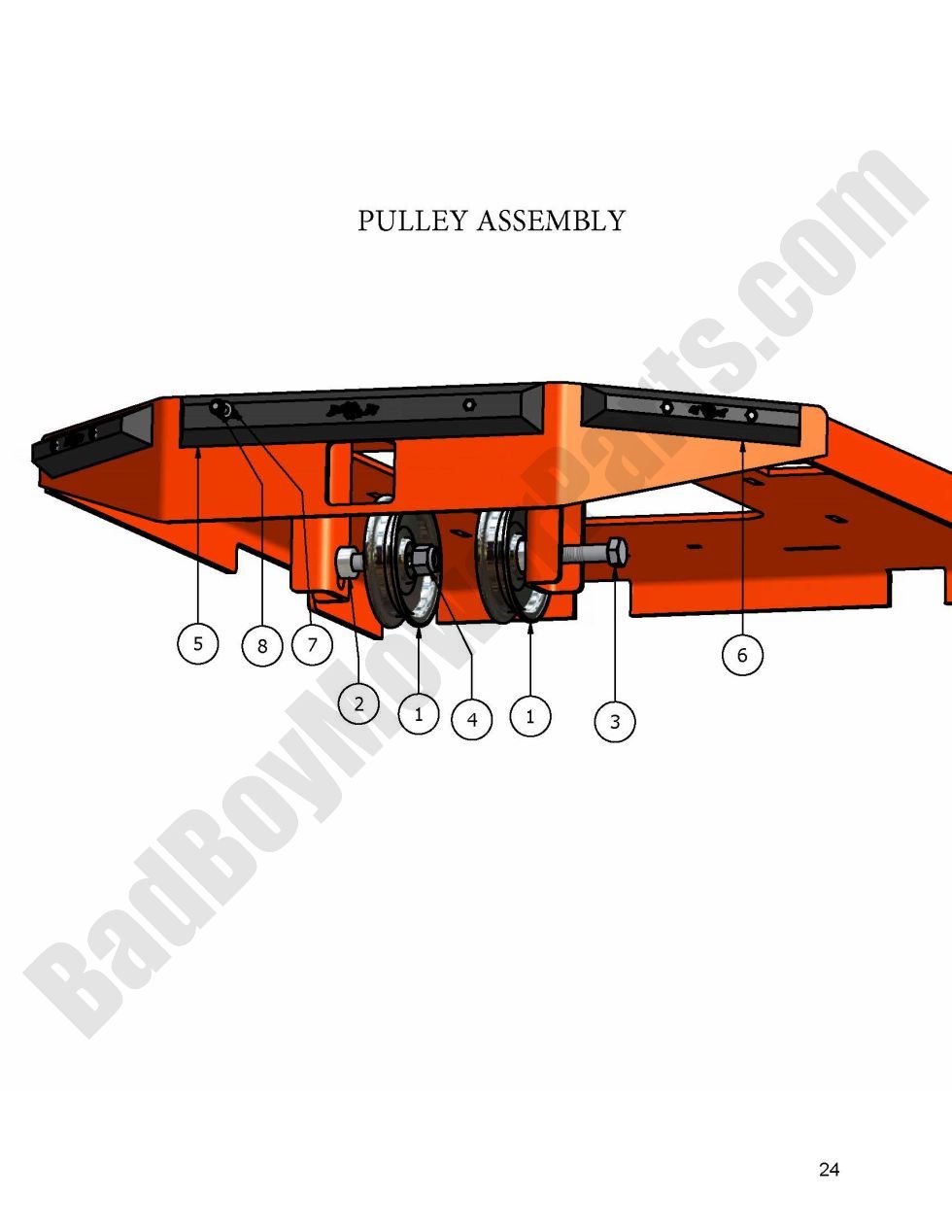

The Bad Boy Mower parts diagram for the 2007 AOS Pulley Assembly is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the badboy zero turn parts diagrams for the 2007 AOS models. Find all of your Bad Boy mowers 2007 AOS parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2007 AOS Pulley Assembly. If you are not able to find the Bad Boy parts for your 2007 AOS please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 033-7025-00 | 033-7025-00 - 5 V Idler Pulley - BCVI-81 Frame Mounted AOS/Diesel |
$28.39
|
||
2 | 025-7020-00 | 025-7020-00 - 5/8 Set Collar W/One Set Screw |
$4.37
|
||
3 | 018-6059-00 | 018-6059-00 - 5/8-11 X 2-1/2 GR 5 Hex Bolts |
$2.99
|
||
4 | 013-7021-00 | 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon |
$2.99
|
||
5 | 029-7037-00 | 029-7037-00 - 14 Bumper |
$42.79
|
||
6 | 029-7038-00 | 029-7038-00 - 8 Bumper |
$28.32
|
||
7 | 019-7040-00 | 019-7040-00 - 1/4 USS Flat Washer Zinc |
$2.99
|
||
8 | 030-7039-00 | 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc |
$2.99
|
