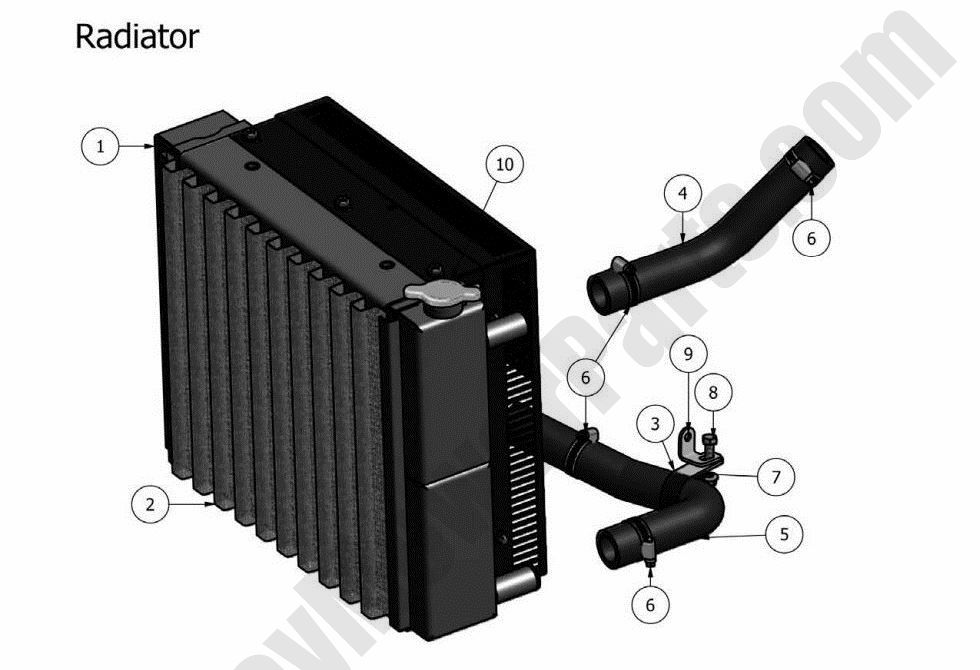

2011 Diesels Radiator

Radiator

The Bad Boy Mower parts diagram for the 2011 Diesels Radiator is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 Diesels models. Find all of your Bad Boy mowers 2011 Diesels parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 Diesels Radiator. If you are not able to find the Bad Boy parts for your 2011 Diesels please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2011 Diesels Radiator
  Position Number SKU Product Title Price
1 061-5000-00 061-5000-00 - Radiator - Diesel Models
$624.70
2 094-5088-00 094-5088-00 - Radiator Screen Diesel
$139.09
3 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
4 051-3000-00 051-3000-00 - Top Radiator Hose - Diesel
$22.03
5 051-3001-00 051-3001-00 - Diesel Radiator Hose - Bottom
$28.09
6 072-2003-00 072-2003-00 - 1 1/8 Hose Clamp
$5.82
7 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
9 039-1015-00 039-1015-00 - Radiator Hose Clamp Bracket
$2.99
10 015-0104-00 015-0104-00 - Cat Diesel Radiator Cap
$31.22
