2011 Lightning and Pup Rear Suspension

Rear Suspension

The Bad Boy Mower parts diagram for the 2011 Lightning and Pup Rear Suspension is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 Lightning and Pup models. Find all of your Bad Boy mowers 2011 Lightning and Pup parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 Lightning and Pup Rear Suspension. If you are not able to find the Bad Boy parts for your 2011 Lightning and Pup please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

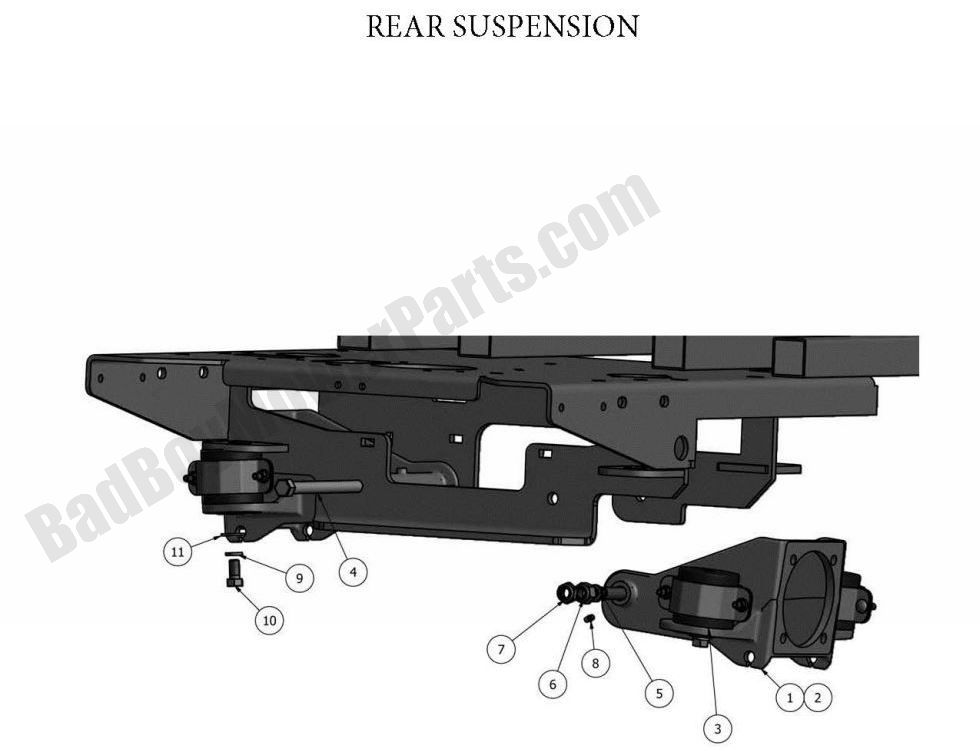

2011 Lightning and Pup Rear Suspension
  Position Number SKU Product Title Price
1 070-8000-00 070-8000-00 - 60 Suspension Kit Wheel Motor
$312.34
2 070-8001-00 070-8001-00 - 72 Suspension Kit Wheel Motor
$283.95
3 032-9000-00 032-9000-00 - Isolator - Green Dot
$70.97
4 018-2051-00 018-2051-00 - 5/8 x 10 Bolt Grade 8
$15.61
5 032-5051-00 032-5051-00 - Bronze Bushing - SF2024-24 Wheel Motor Cage
$4.37
6 013-5020-00 013-5020-00 - 5/8-11 Hex Nuts Zinc
$3.51
7 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
8 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
9 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
10 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 GR 5 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
11 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
