2011 ZT Transaxle

Transaxle

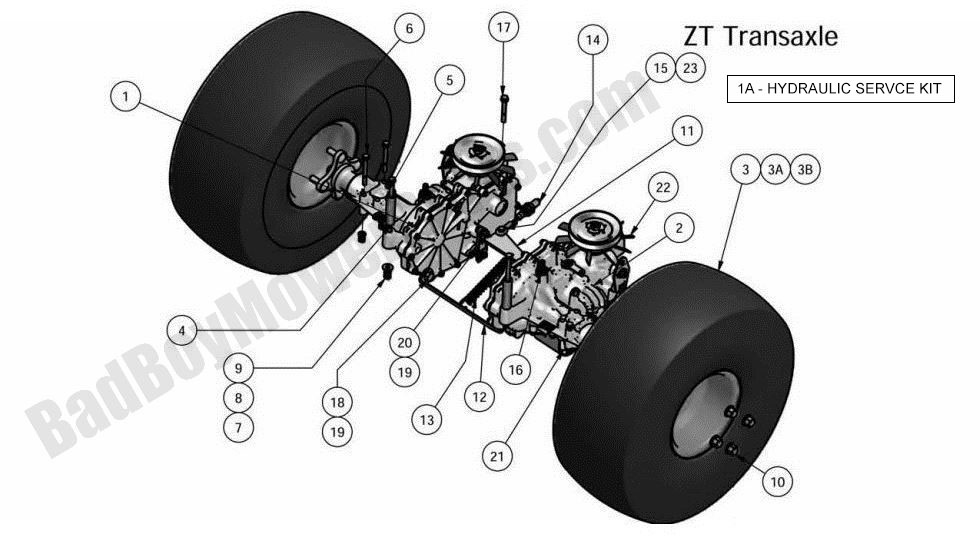

The Bad Boy Mower parts diagram for the 2011 ZT Transaxle is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 ZT models. Find all of your Bad Boy mowers 2011 ZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 ZT Transaxle. If you are not able to find the Bad Boy parts for your 2011 ZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2011 ZT Transaxle
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - 2020 Models and Older - ZT2800 - ZT3100 - ZT3200 & ALL ZT3400 Hydro Service Package With Expansion Tanks
$104.74
1 050-2081-00 050-2081-00 - Left ZT Transaxle ZL-KCEE-3BKC-1RXX (obsolete)
use part #050-2096-01
$781.09
2 050-2080-00 050-2080-00 - Right ZT Transaxle ZL-GCEE-3BKV-1RXX (obsolete)
use part #050-2095-01
$781.09
3A 022-6001-00 022-6001-00 - 20x10-8 Turf Tire Kenda (One Tire Only)
$128.99
3B 022-6002-00 022-6002-00 - 8 inch Wheel for ZT Wheel for a 022-6000-00 (One Rim Only)
$96.29
3 022-6000-00 022-6000-00 - 20x10.50-8 Tire/Wheel Assy Carlisle Tire (Priced Per Assembly) for 022-6002-00
$186.99
4 025-5340-00 025-5340-00 -.365 ID X.752 OD X 3.313Lengt h Spacer Zinc
$8.74
5 018-5355-00 018-5355-00 - 5/16-18 X 6 GR 5 Hex Bolt Zinc
$2.99
6 018-4701-00 018-4701-00 - 5/16-18 X 3 GR 5 Hex Bolt Zinc
$2.99
7 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
8 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
9 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
10 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
11 039-0053-00 039-0053-00 - Crossover Brake Bracket
$14.19
12 028-4801-00 028-4801-00 - Crossover Bar (See Models Used On For Detail)
$28.10
13 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
14 064-8055-00 064-8055-00 - Short Brake Cable
$51.47
15 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
16 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
17 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
18 018-3000-00 018-3000-00 - 3/8-16 X 2 GR 5 Hex Bolts Zinc
$2.99
19 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
20 018-4007-00 018-4007-00 - 1/4-20 X 1 GR 5 Hex Bolts Zinc
$2.99
21 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
22 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
23 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
