2013 Outlaw & Outlaw Extreme Transaxle

Transaxle

The Bad Boy Mower parts diagram for the 2013 Outlaw Transaxle is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 Outlaw models. Find all of your Bad Boy mowers 2013 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 Outlaw Transaxle. If you are not able to find the Bad Boy parts for your 2013 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

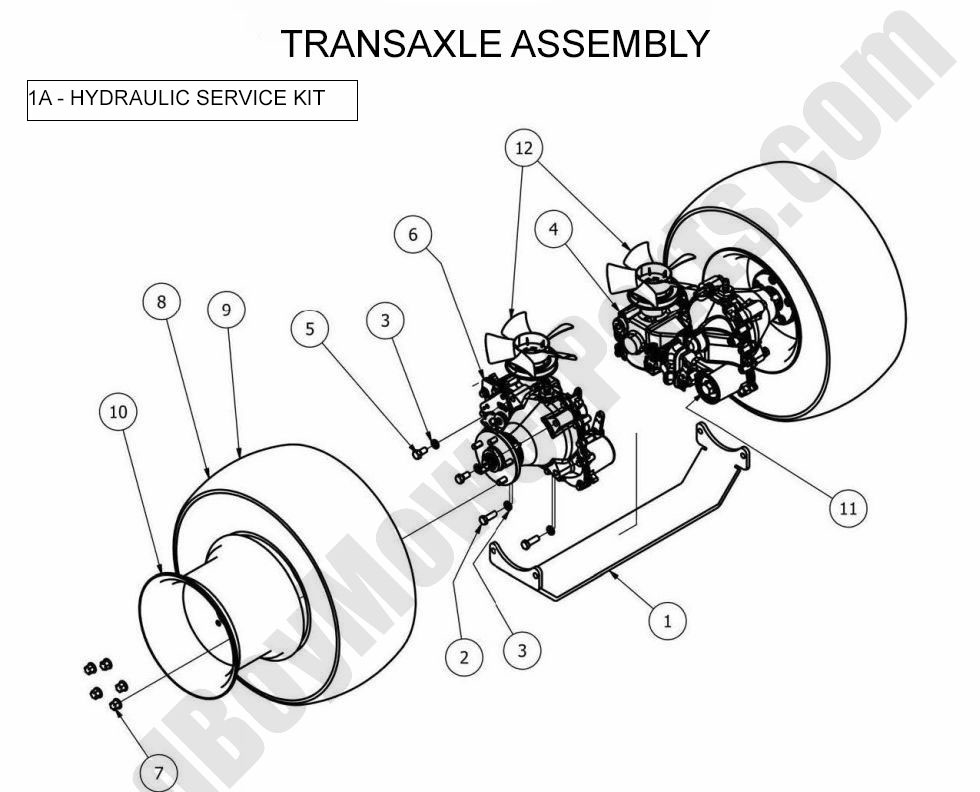

2013 Outlaw & Outlaw Extreme Transaxle
  Position Number SKU Product Title Price
1A 085-4050-01 085-4050-01 - Hydro-Gear ZT5400 Hydro Service Kit
$159.92
1 203-0100-00 203-0100-00 - Outlaw Transaxle Cross Brace
$64.19
2 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 GR 5 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
3 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
4 050-7001-00 050-7001-00 - 5400 Transaxle - Right - 2015-2018 Outlaw Extreme and 2014 & Older Outlaw/Outlaw Extreme
$909.49
5 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
6 050-7000-00 050-7000-00 - 5400 Transaxle - Left - 2015-2018 Outlaw Extreme and 2014 & Older Outlaw/Outlaw Extreme
$962.99
7 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
8 022-4000-00 022-4000-00 - 24 x 12.00 - 10 Tire and Wheel Assembly
$281.99
9 022-4005-00 022-4005-00 - 24 x 12.00 - 10 Outlaw Tire Premium Brand (Not NHS)
$224.99
10 022-4010-00 022-4010-00 - 10 inch Wheel for Outlaw (One Rim Only)
$128.39
11 063-1060-00 063-1060-00 - Hydro Filter for Outlaw ZT5400 Transaxles
$28.88
12 050-2073-00 050-2073-00 - Fan/Pulley Kit for Outlaw with ZT-5400 Transaxle See Product Details for More Info
$127.99
