2013 Stand-On Transaxle

Transaxle

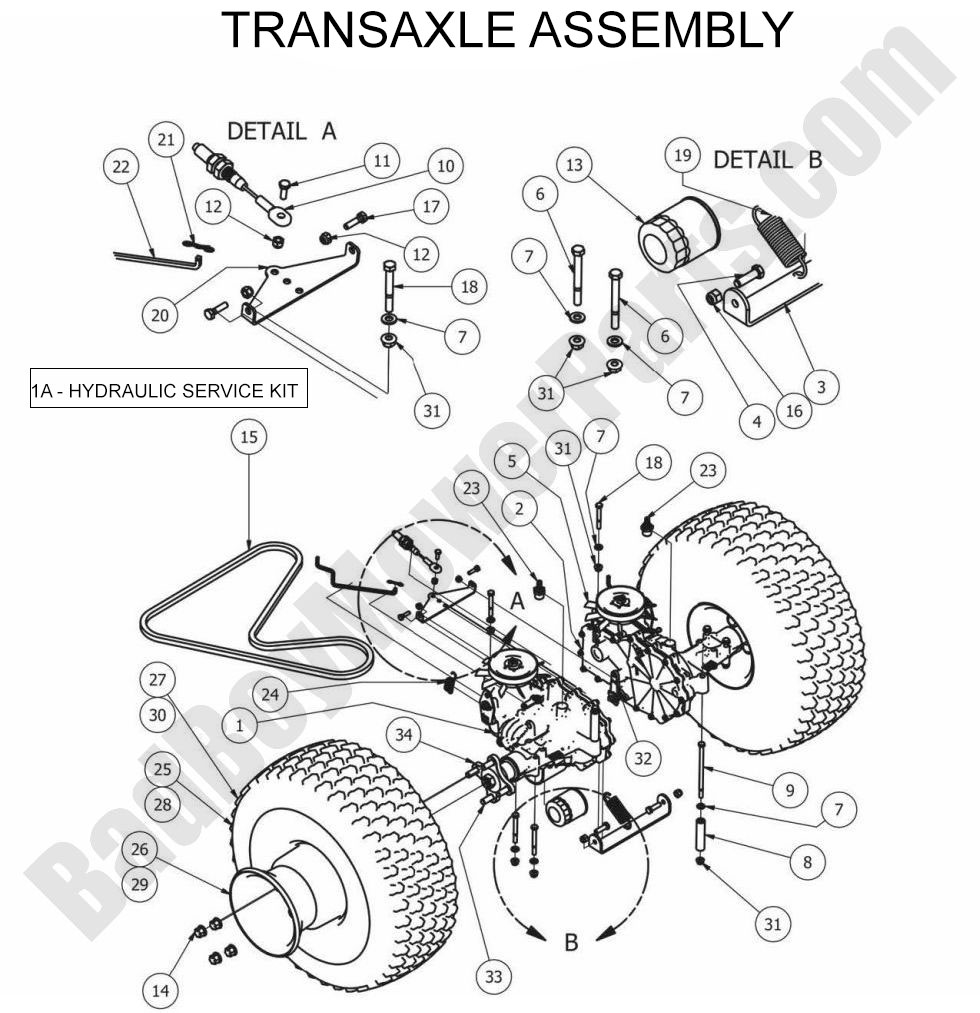

The Bad Boy Mower parts diagram for the 2013 Stand-On Transaxle is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 Stand-On models. Find all of your Bad Boy mowers 2013 Stand-On parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 Stand-On Transaxle. If you are not able to find the Bad Boy parts for your 2013 Stand-On please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 Stand-On Transaxle
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - 2020 Models and Older - ZT2800 - ZT3100 - ZT3200 & ALL ZT3400 Hydro Service Package With Expansion Tanks
$104.74
1 050-6000-00 050-6000-00 - ZT3400 Transaxle - Left (obsolete)
use part #050-6000-01
$877.39
2 050-6001-00 050-6001-00 - ZT3400 Transaxle - Right (obsolete)
use part #050-6001-01
$877.39
3 028-4801-00 028-4801-00 - Crossover Bar (See Models Used On For Detail)
$28.10
4 018-3000-00 018-3000-00 - 3/8-16 X 2 GR 5 Hex Bolts Zinc
$2.99
5 050-2072-00 050-2072-00 - Fan/Pulley Kit for CZT
$63.96
6 018-4701-00 018-4701-00 - 5/16-18 X 3 GR 5 Hex Bolt Zinc
$2.99
7 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
8 025-5340-00 025-5340-00 -.365 ID X.752 OD X 3.313Lengt h Spacer Zinc
$8.74
9 018-5355-00 018-5355-00 - 5/16-18 X 6 GR 5 Hex Bolt Zinc
$2.99
10 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
11 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
12 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
13 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
14 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
15 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
16 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
17 018-4007-00 018-4007-00 - 1/4-20 X 1 GR 5 Hex Bolts Zinc
$2.99
18 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
19 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
20 039-0212-00 039-0212-00 - Brake Bracket Stand On Model
$25.54
21 044-2004-00 044-2004-00 - Bow Pin
$2.99
22 028-0060-00 028-0060-00 - Brake Release Bar (See Models Used On For Detail)
$7.28
23 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
24 034-1050-00 034-1050-00 - Spring for Stand On Models ISC-6349
$7.28
25 022-5460-00 022-5460-00 - 23 x 10.50 -12 Assembly w/Negative Offset Wheel 54"CZT (One Tire & Rim Assy)
$266.99
26 022-7061-00 022-7061-00 - 12x8.5 Orange Wheel - Solid (One Rim Only)
$195.99
27 022-5351-00 022-5351-00 - 23 x 10.50 - 12 Tire (One Tire Only)
$192.99
28 022-3000-00 022-3000-00 - 23x8.50-12 Tire Assembly (obsolete)
use part #022-3010-00
$265.99
29 022-3026-00 022-3026-00 - 12x7 Wheel-23 x 8.50 - 12 Tire
$74.89
30 022-3025-00 022-3025-00 - 23 x 8.50 - 12 Turf Tire
$224.99
31 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
32 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28
33 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
34 050-2076-00 050-2076-00 - ZT Transaxle Wheel Hub
$90.56
