2014 ZT Elite Spindle Assembly

Spindle Assembly

BadBoyMowerParts.com has the parts diagrams for the 2014 ZT Elite models. Find all of your Bad Boy mowers 2014 ZT Elite parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2014 ZT Elite Spindle Assembly. If you are not able to find the Bad Boy parts for your 2014 ZT Elite please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

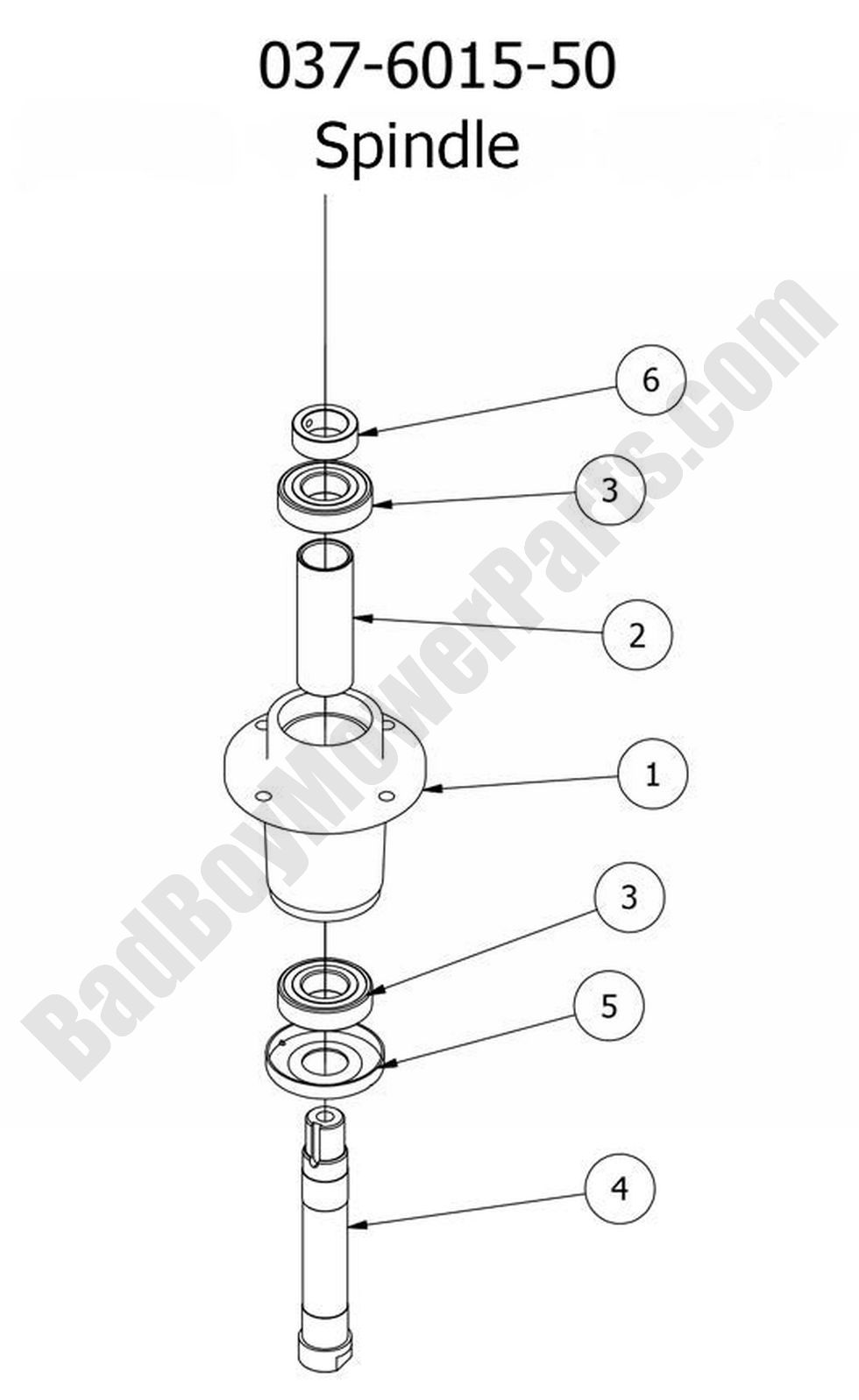

2014 ZT Elite Spindle Assembly
  Position Number SKU Product Title Price

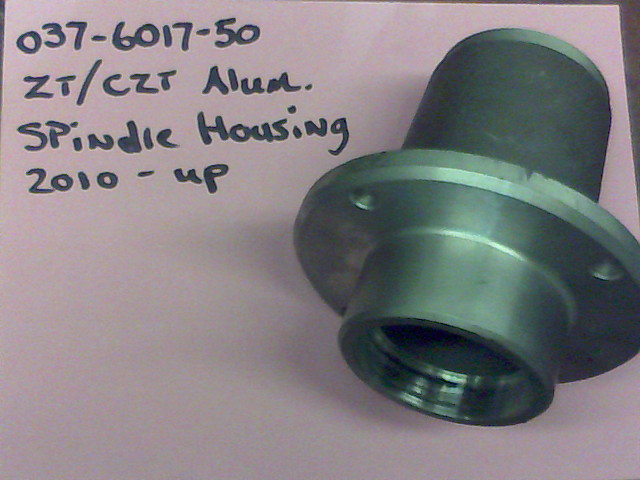

1 037-6017-50 037-6017-50 - Compact Outlaw / Maverick / Walkbehind / ZT & 2007 Pup Aluminum Spindle Housing (obsolete)
use part #037-6015-50
$213.99

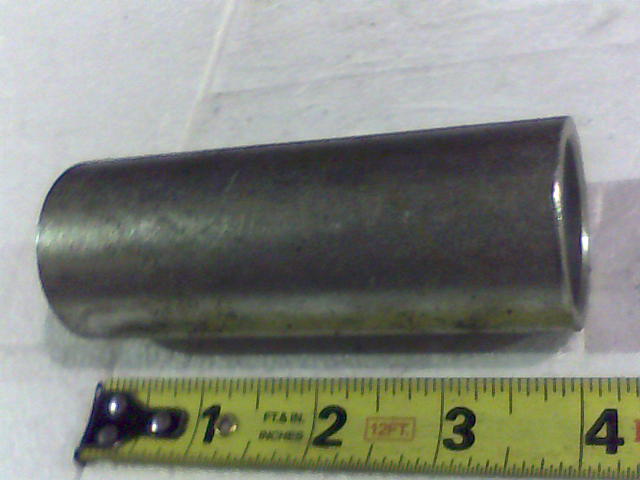

2 037-8050-00 037-8050-00 - Tube Spacer For Spindle Shaft - Small Spindle
$8.69
3 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
4 037-6026-00 037-6026-00 - Short Spindle Shaft w/Locking Collar - No Grooved Shaft
$83.77
5 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
6 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
