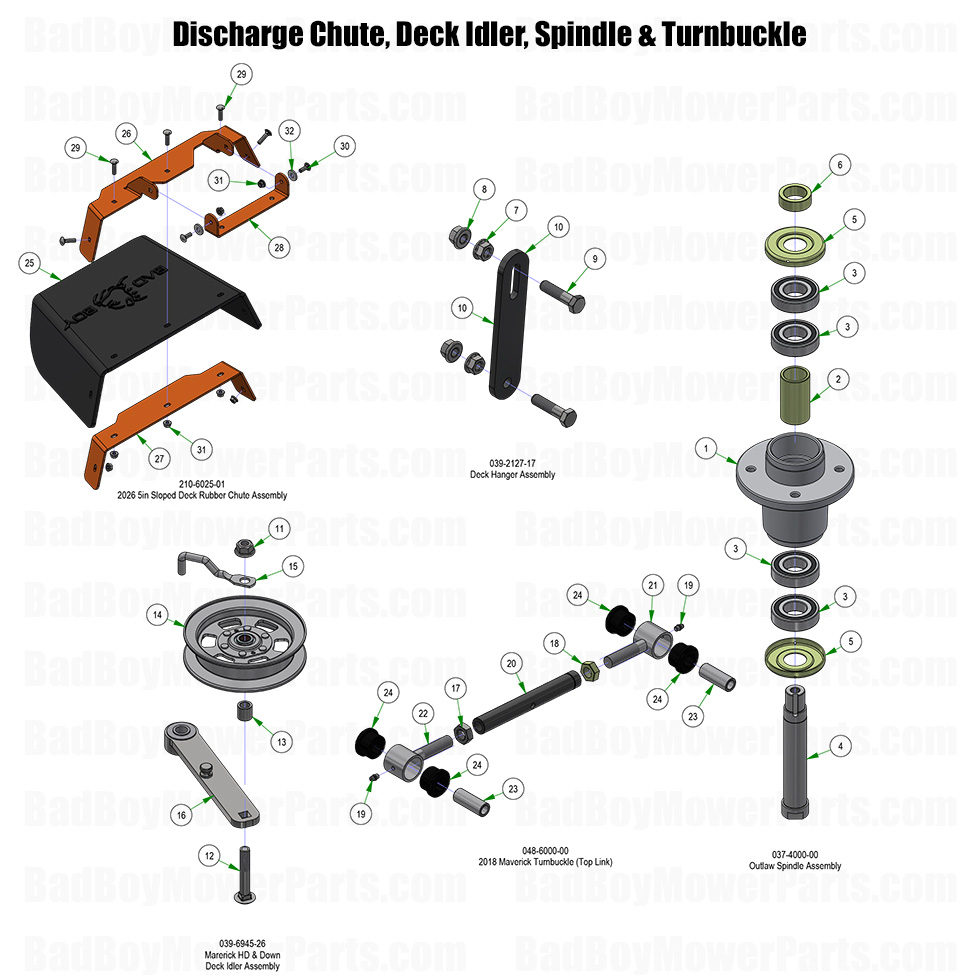

2026 > Maverick HD > Chute, Idler, Spindle & Turnbuckle
037-4000-01 - Bad Boy Mower Parts
037-4000-01

037-4000-01 - Obsolete

Usually ship in 1-3 days
Newer version is available. Click to see 037-4000-00
1
037-4000-00 - Bad Boy Mower Parts
037-4000-00

In stock

037-4000-00 - Commercial Spindle Assembly

$291.91 Usually ship in 1-3 days

In stock

1.1
037-4002-00 - Bad Boy Mower Parts
037-4002-00

In stock

037-4002-00 - Spindle Spacer for 037-4000-00

$7.28 Usually ship in 1-3 days

In stock

2
037-6023-00
037-6023-00

037-6023-00 - Obsolete

Usually ship in 1-3 days
Newer version is available. Click to see 037-6029-00
3
037-6026-00 - Bad Boy Mower Parts
037-6026-00

In stock

037-6026-00 - Short Spindle Shaft - No Grooved Shaft

$83.77 Usually ship in 1-3 days

In stock

4
037-8002-00 - Bad Boy Mower Parts
037-8002-00

In stock

037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)

$11.76 Usually ship in 1-3 days

In stock

5
037-9050-00 - Bad Boy Mower Parts
037-9050-00

In stock

037-9050-00 - Collar Spacer - Top of Spindle

$7.28 Usually ship in 1-3 days

In stock

6
013-5201-00 - Bad Boy Mower Parts
013-5201-00

In stock

013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations

$2.99 Usually ship in 1-3 days

In stock

7
039-2127-17 - Bad Boy Mower Parts
039-2127-17

In stock

039-2127-17 - Deck Hanger Assy.

$15.60 Usually ship in 1-3 days

In stock

7.1
013-5202-00 - Bad Boy Mower Parts
013-5202-00

In stock

013-5202-00 - 3/8 Nylock Flange Nut

$2.99 Usually ship in 1-3 days

In stock

8
018-6012-00 - Bad Boy Mower Parts
018-6012-00

In stock

018-6012-00 - 3/8 - 1 1/2 Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

9
039-2127-00 - Bad Boy Mower Parts
039-2127-00

039-2127-00 - Obsolete

Usually ship in 1-3 days
Newer version is available. Click to see 039-2127-17
10
013-8050-00 - Bad Boy Mower Parts
013-8050-00

In stock

013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$2.99 Usually ship in 1-3 days

In stock

11
039-6945-26 - Bad Boy Mower Parts
039-6945-26

039-6945-26 - Deck Idler Assembly

$106.99 Usually ship in 1-3 days
11.1
018-0067-00 - Bad Boy Mower Parts
018-0067-00

In stock

018-0067-00 - 1/2-13 - 3 Carriage Bolt Grade 5

$3.29 Usually ship in 1-3 days

In stock

12
025-5203-00 - Bad Boy Mower Parts
025-5203-00

In stock

025-5203-00 - Spacer 3/4" OD - 1/2" ID - 0.75"

$3.29 Usually ship in 1-3 days

In stock

13
033-8050-00 - Bad Boy Mower Parts
033-8050-00

In stock

033-8050-00 - 5" Split Idler Pulley-Tensioner Only

$35.48 Usually ship in 1-3 days

In stock

14
039-0401-00 - Bad Boy Mower Parts
039-0401-00

In stock

039-0401-00 - Small Belt Retainer

$5.49 Usually ship in 1-3 days

In stock

15
039-7002-00 - Bad Boy Mower Parts
039-7002-00

039-7002-00 - 2025 Tensioner Arm With Bearings

$22.46 Usually ship in 1-3 days
16
013-0019-00 - Bad Boy Mower Parts
013-0019-00

In stock

013-0019-00 - Nut, 5/8-18 RH

$4.39 Usually ship in 1-3 days

In stock

17
048-6000-00 - Bad Boy Mower Parts
048-6000-00

In stock

048-6000-00 - Maverick/Compact Outlaw Toplink

$80.24 Usually ship in 1-3 days

In stock

17.1
013-0020-00 - Bad Boy Mower Parts
013-0020-00

In stock

013-0020-00 - Nut, 5/8-18 LH

$4.39 Usually ship in 1-3 days

In stock

18
024-0001-00 - 1/4-28 Threaded Grease Fitting
024-0001-00

In stock

024-0001-00 - 1/4-28 Threaded Grease Fitting

$2.99 Usually ship in 1-3 days

In stock

19
048-6001-00 - Maverick/Compact Outlaw Toplink Body
048-6001-00

In stock

048-6001-00 - Maverick/Compact Outlaw Toplink Body

$28.32 Usually ship in 1-3 days

In stock

20
048-6002-00 – Maverick/Compact Outlaw Topllink Bushing Retainer
048-6002-00

In stock

048-6002-00 - Maverick/Compact Outlaw Topllink Bushing Retainer

$28.32 Usually ship in 1-3 days

In stock

21
048-6003-00 – Maverick/Compact Outlaw Toplink Bushing Retainer
048-6003-00

In stock

048-6003-00 - Maverick/Compact Outlaw Toplink Bushing Retainer

$28.32 Usually ship in 1-3 days

In stock

22
048-6004-00 – Maverick/Compact Outlaw Toplink Bushing Sleeve
048-6004-00

In stock

048-6004-00 - Maverick/Compact Outlaw Topllink Bushing Sleeve

$11.29 Usually ship in 1-3 days

In stock

23
048-6005-00 – Maverick/Compact Outlaw Toplink Bushing
048-6005-00

In stock

048-6005-00 - Maverick/Compact Outlaw Toplink Bushing

$32.09 Usually ship in 1-3 days

In stock

24
210-6025-00 - Bad Boy Mower Parts
210-6025-00

In stock

210-6025-00 - Belted Chute with Logo 2019-2022 Rebel, Revolt, Renegade - Rogue

$62.40 Usually ship in 1-3 days

In stock

25
206-6018-00 - Bad Boy Mower Parts
206-6018-00

In stock

206-6018-00 - Chute Hanger 2019-2022 Rebel, Revolt, Renegade - Rogue

$9.67 Usually ship in 1-3 days

In stock

28
018-4703-00 – 5/16-18 - 1-1/4 Carriage Bolt
018-4703-00

In stock

018-4703-00 - 5/16-18 - 1-1/4 Carriage Bolt

$2.99 Usually ship in 1-3 days

In stock

29
018-8066-00 - Bad Boy Mower Parts
018-8066-00

In stock

018-8066-00 - 5/16 - 7/8 Carriage Bolt

$2.99 Usually ship in 1-3 days

In stock

30
013-8049-00 - 5/16-18 Nylon Flange Nut
013-8049-00

013-8049-00 – 5/16-18 Nylon Flange Nut

$2.99 Usually ship in 1-3 days
31
019-6042-00 - Bad Boy Mower Parts
019-6042-00

In stock

019-6042-00 -.36" ID Plastic Washer

$2.99 Usually ship in 1-3 days

In stock

32
