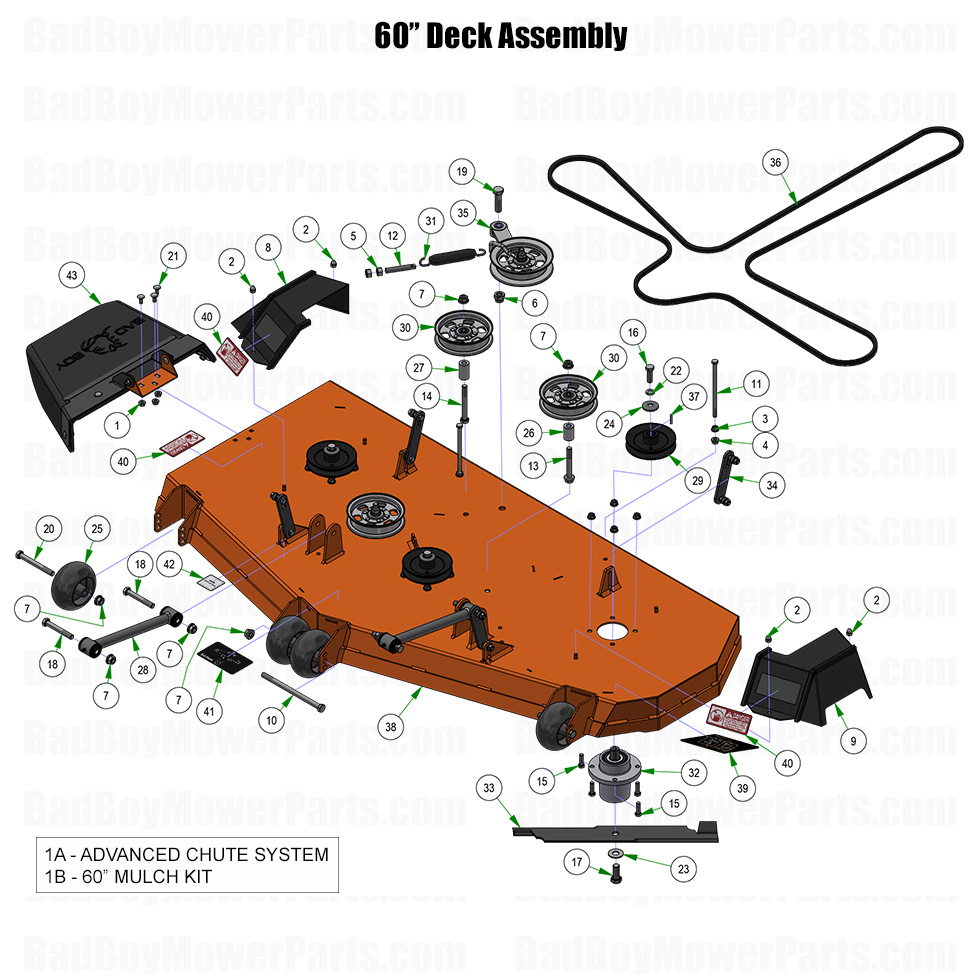

2026 > MZ Magnum > 60\" Deck Assembly
013-8049-00 - 5/16-18 Nylon Flange Nut
013-8049-00

013-8049-00 – 5/16-18 Nylon Flange Nut

$2.99 Usually ship in 1-3 days
1
088-4842-00 - Bad Boy Mower Parts
088-4842-00

In stock

088-4842-00 - Advanced Chute System for all MZ, MZ Magnum - ZT Avenger decks

$249.00 Usually ship in 1-3 days

In stock

1A
210-0160-50 - Bad Boy Mower Parts
210-0160-50

In stock

210-0160-50 - Mulch Kit w/blades

$318.45 Usually ship in 1-3 days

In stock

1B
013-0004-00 - Bad Boy Mower Parts
013-0004-00

In stock

013-0004-00 - Acorn Nut-Pulley Cover

$3.29 Usually ship in 1-3 days

In stock

2
013-5201-00 - Bad Boy Mower Parts
013-5201-00

In stock

013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations

$2.99 Usually ship in 1-3 days

In stock

3
013-5202-00 - Bad Boy Mower Parts
013-5202-00

In stock

013-5202-00 - 3/8 Nylock Flange Nut

$2.99 Usually ship in 1-3 days

In stock

4
013-7018-00 - Bad Boy Mower Parts
013-7018-00

In stock

013-7018-00 - 1/2-13 Hex Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

5
013-7021-00 - Bad Boy Mower Parts
013-7021-00

In stock

013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc

$2.99 Usually ship in 1-3 days

In stock

6
013-8050-00 - Bad Boy Mower Parts
013-8050-00

In stock

013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$2.99 Usually ship in 1-3 days

In stock

7
014-5020-00 - 2021-2022 Maverick 54"/60" RH Pulley Cover
014-5020-00

In stock

014-5020-00 - 54"/60" RH Pulley Cover

$28.39 Usually ship in 1-3 days

In stock

8
014-5021-00 - 2021-2022 Maverick 54"/60" LH Pulley Cover
014-5021-00

In stock

014-5021-00 - 54"/60" LH Pulley Cover

$28.39 Usually ship in 1-3 days

In stock

9
018-0046-00 - Bad Boy Mower Parts
018-0046-00

In stock

018-0046-00 - 1/2-13 - 8" Grade - Hex Bolt

$4.06 Usually ship in 1-3 days

In stock

10
018-0073-00 - Bad Boy Mower Parts
018-0073-00

In stock

018-0073-00 - 3/8-16 - 6.5 Hex Head GR.5

$3.29 Usually ship in 1-3 days

In stock

11
018-2004-50 - Bad Boy Mower Parts
018-2004-50

In stock

018-2004-50 - All Thread

$12.94 Usually ship in 1-3 days

In stock

12
018-2018-00 - Bad Boy Mower Parts
018-2018-00

In stock

018-2018-00 - 1/2 - 3 1/2 Flange Bolt - Gr 8

$3.62 Usually ship in 1-3 days

In stock

13
018-5019-00 - Bad Boy Mower Parts
018-5019-00

In stock

018-5019-00 - 1/2-13 - 4 GR - Hex Bolt

$4.39 Usually ship in 1-3 days

In stock

14
018-5040-00 - Bad Boy Mower Parts
018-5040-00

In stock

018-5040-00 - 3/8-16 - 1-1/4 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

15
018-6019-00 - Bad Boy Mower Parts
018-6019-00

In stock

018-6019-00 - 1/2-20 - 1-1/2 GR - Bolt Zinc, Fine Thread Bolt

$2.99 Usually ship in 1-3 days

In stock

16
018-6020-00 - Bad Boy Mower Parts
018-6020-00

In stock

018-6020-00 - 5/8-18 - 1-1/2 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

17
018-6054-00 - Bad Boy Mower Parts
018-6054-00

In stock

018-6054-00 - 1/2-13 - 3-1/2 GR - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

18
018-6058-00 - Bad Boy Mower Parts
018-6058-00

In stock

018-6058-00 - 5/8-11 - 2-1/4 GR - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

19
018-7050-00 - Bad Boy Mower Parts
018-7050-00

In stock

018-7050-00 - 1/2-13 - 4-1/2 GR 5 - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

20
018-8062-00 - Bad Boy Mower Parts
018-8062-00

In stock

018-8062-00 - 5/16-18 - 3/4 Carriage Bolts

$2.99 Usually ship in 1-3 days

In stock

21
019-5007-00 - Bad Boy Mower Parts
019-5007-00

In stock

019-5007-00 - 1/2 Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

22
019-5038-00 - Bad Boy Mower Parts
019-5038-00

In stock

019-5038-00 - 5/8 Flat Washer

$2.99 Usually ship in 1-3 days

In stock

23
019-6020-00 - Bad Boy Mower Parts
019-6020-00

In stock

019-6020-00 - 1/2 Belleville Washer #K2000-G -150

$5.16 Usually ship in 1-3 days

In stock

24
022-1001-00 - Bad Boy Mower Parts
022-1001-00

In stock

022-1001-00 - Deck Wheel

$17.11 Usually ship in 1-3 days

In stock

25
025-5338-00 - Bad Boy Mower Parts
025-5338-00

In stock

025-5338-00 -.502 ID X.750 OD - 1.500" Spacer Zinc

$3.62 Usually ship in 1-3 days

In stock

26
025-5339-00 - Bad Boy Mower Parts
025-5339-00

In stock

025-5339-00 - .502 ID - 1.00 OD - 1.750 Length Spacer Zinc

$5.36 Usually ship in 1-3 days

In stock

27
028-0004-22 - Bad Boy Mower Parts
028-0004-22

In stock

028-0004-22 - Hybrid Turnbuckle/Deck Locator

$46.84 Usually ship in 1-3 days

In stock

28
033-4301-00 - Bad Boy Mower Parts
033-4301-00

In stock

033-4301-00 - Spindle Pulley

$42.58 Usually ship in 1-3 days

In stock

29
033-7201-25 - Bad Boy Mower Idler Pulley
033-7201-25

In stock

033-7201-25 - 5 3/4 Idler Pulley-Capitol Stampings

$35.48 Usually ship in 1-3 days

In stock

30
034-2020-00 - Bad Boy Mower deck springs
034-2020-00

In stock

034-2020-00 - Idler Spring

$17.11 Usually ship in 1-3 days

In stock

31
037-2000-00 - Bad Boy Mower Parts
037-2000-00

In stock

037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2017 36" Stand-On

$204.33 * Usually ship in 1-3 days

In stock

32
038-0013-00 - Bad Boy Mower Parts
038-0013-00

In stock

038-0013-00 - 60" MZ High Lift Blade

$22.99 Usually ship in 1-3 days

In stock

33
038-1025-00 - Bad Boy Mower Parts
038-1025-00

In stock

038-1025-00 - 60" Fusion Blade - 6-Pack (038-6060-00) - 2023-2025 Revolt SD 42"

$119.99 * Usually ship in 1-3 days

In stock

33.1
038-6003-00 - Bad Boy Mower Parts
038-6003-00

In stock

038-6003-00 - 60" Gator Mulching Blade - 2023-2025 Revolt SD 42"

$22.99 * Usually ship in 1-3 days

In stock

33.2
038-1045-00 - Bad Boy Mower Parts
038-1045-00

In stock

038-1045-00 - 60" Fusion Gator Mulching Blades - 6-Pack (038-6003-00) - 2023-2025 Revolt SD 42"

$119.99 * Usually ship in 1-3 days

In stock

33.3
039-2127-17 - Bad Boy Mower Parts
039-2127-17

In stock

039-2127-17 - Deck Hanger Assy.

$15.60 Usually ship in 1-3 days

In stock

34
039-6945-26 - Bad Boy Mower Parts
039-6945-26

039-6945-26 - Deck Idler Assembly

$106.99 Usually ship in 1-3 days
35
041-1650-00 - Bad Boy Mower Parts
041-1650-00

In stock

041-1650-00 - B165 Deck Belt

$90.94 Usually ship in 1-3 days

In stock

36
042-0010-00 - Bad Boy Mower Parts
042-0010-00

In stock

042-0010-00 - 3/16 - 1 Square Machine Key

$4.81 Usually ship in 1-3 days

In stock

37
091-4044-00 - Bad Boy Mower Parts
060-2506-00

060-2506-00 - 2025 60"x4" Deck - Orange

$1,199.99 Usually ship in 1-3 days
38
091-0534-00 - Bad Boy Mower Parts
091-0534-00

091-0534-00 - 60" Grip Deck Decal

$10.99 Usually ship in 1-3 days
39
091-3012-00 - Bad Boy Mower Parts
091-3012-00

In stock

091-3012-00 - Danger Decal-Spindle/Discharge

$2.99 Usually ship in 1-3 days

In stock

40
091-3309-00 - Bad Boy Mower Parts
091-3309-00

In stock

091-3309-00 - Deck Belt Route Decal

$6.41 Usually ship in 1-3 days

In stock

41
091-8001-00 - Bad Boy Mower Parts
091-8001-00

In stock

091-8001-00 - Impact Absorption Patent Decal

$2.99 Usually ship in 1-3 days

In stock

42
210-6015-98 - Discharge Chute Assembly
210-6015-98

In stock

210-6015-98 - Discharge Chute Assembly

$145.95 Usually ship in 1-3 days

In stock

43
