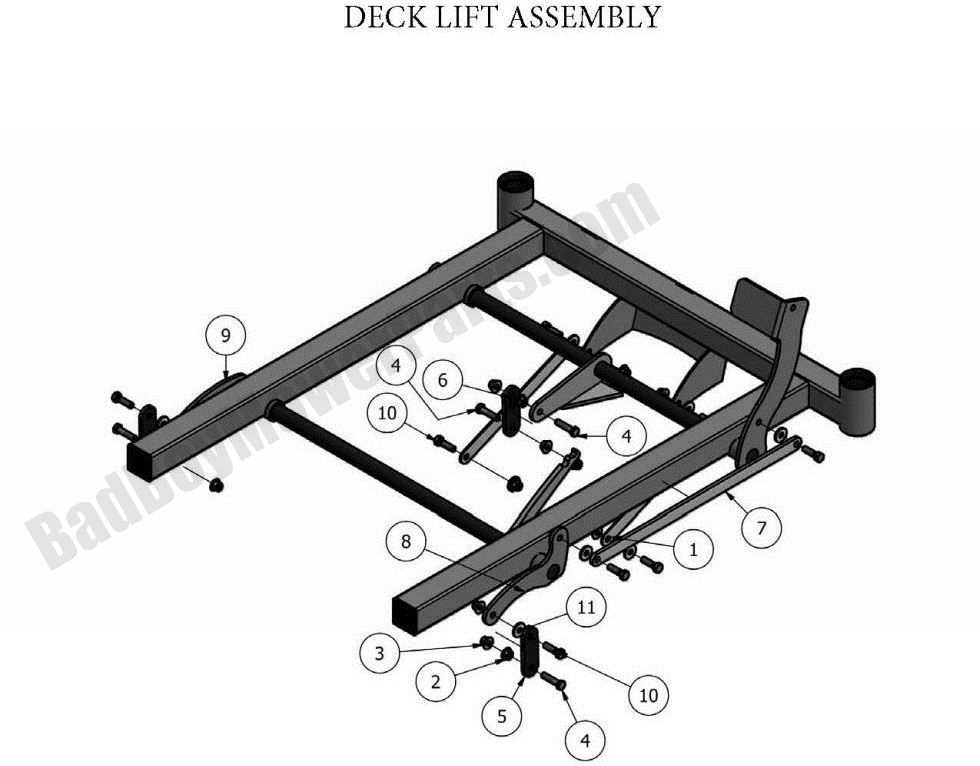

2011 MZ Deck Lift Assembly

Deck Lift Assembly

The Bad Boy Mower parts diagram for the 2011 MZ Deck Lift Assembly is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 MZ models. Find all of your Bad Boy mowers 2011 MZ parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 MZ Deck Lift Assembly. If you are not able to find the Bad Boy parts for your 2011 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2011 MZ Deck Lift Assembly
  Position Number SKU Product Title Price
1 031-1010-00 031-1010-00 - MZ Front Arm
$25.54
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
5 025-0010-00 025-0010-00 - 2010-2016 MZ/MZ Magnum Deck Spacer - Rear Hanger Tab
$18.94
6 025-0020-00 025-0020-00 - 42/48 Deck Spacer MZ (Front) 2014 54 MZ
$18.94
7 028-0050-00 028-0050-00 - MZ Deck Linkage Rod
$7.28
8 031-1020-00 031-1020-00 - MZ Deck Pivot Lever
$7.28
9 031-1030-00 031-1030-00 - MZ Deck Pivot Lever 2
$7.28
10 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
11 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
