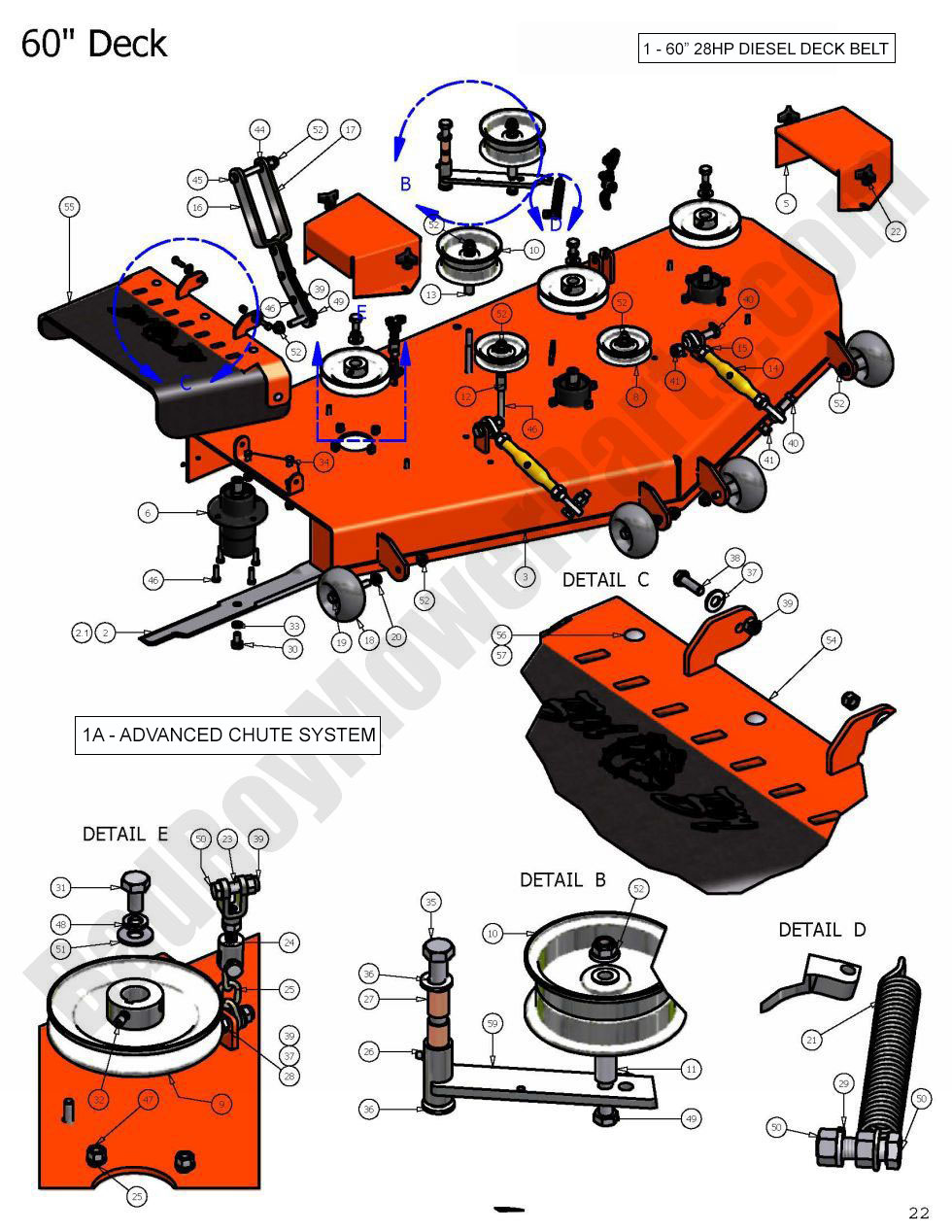

430 - Bad Boy Mower Parts Lookup > 2009 > Diesel > 60\" Deck Assembly
041-0222-00 - Bad Boy Mower Parts
041-0222-00

In stock

041-0222-00 - B222 Deck Belt for 60" 28hp/1100cc Diesels (Not AOS Diesels) - 61" Renegade Gas/Diesel

$122.06 Usually ship in 1-3 days

In stock

1
088-6000-00 - Bad Boy Mower Parts
088-6000-00

In stock

088-6000-00 - Advanced Chute System

$249.00 Usually ship in 1-3 days

In stock

1A
038-6060-00 - Bad Boy Mower Parts
038-6060-00

In stock

038-6060-00 - 60" High Lift Blade - 2023-2025 Revolt SD 42"

$22.99 * Usually ship in 1-3 days

In stock

2
038-1025-00 - Bad Boy Mower Parts
038-1025-00

In stock

038-1025-00 - 60" Fusion Blade - 6-Pack (038-6060-00) - 2023-2025 Revolt SD 42"

$119.99 * Usually ship in 1-3 days

In stock

2.1
038-6003-00 - Bad Boy Mower Parts
038-6003-00

In stock

038-6003-00 - 60" Gator Mulching Blade - 2023-2025 Revolt SD 42"

$22.99 * Usually ship in 1-3 days

In stock

2.2
038-1045-00 - Bad Boy Mower Parts
038-1045-00

In stock

038-1045-00 - 60" Fusion Gator Mulching Blades - 6-Pack (038-6003-00) - 2023-2025 Revolt SD 42"

$119.99 * Usually ship in 1-3 days

In stock

2.3
060-5403-00 - Bad Boy Mower Parts
060-5403-00

In stock

060-5403-00 - 2007-2011 60" Deck AOS/PUP - Shell Only

$1,199.99 Usually ship in 1-3 days

In stock

3
014-6004-00 - Bad Boy Mower Parts
014-6004-00

In stock

014-6004-00 - Metal Spindle Cover

$42.58 Usually ship in 1-3 days

In stock

5
037-8000-00 - Bad Boy Mower Parts
037-8000-00

037-8000-00 - Obsolete

Usually ship in 1-3 days
Newer version is available. Click to see 037-4000-00
6
033-6001-00 - Bad Boy Mower Parts
033-6001-00

In stock

033-6001-00 - 4 3/4 Idler Pulley

$31.22 Usually ship in 1-3 days

In stock

8
033-6005-00 - Bad Boy Mower Parts
033-6004-00

In stock

033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw)

$35.48 Usually ship in 1-3 days

In stock

9
033-5001-00 - Bad Boy Mower Parts
033-5001-00

In stock

033-5001-00 - 5 3/4" Flat Idler Double Width Pulley

$63.73 Usually ship in 1-3 days

In stock

10
025-5337-00 - Bad Boy Mower Parts
025-5337-00

In stock

025-5337-00 -.502x.750x1.125 Length Spacer

$4.39 Usually ship in 1-3 days

In stock

11
025-5338-00 - Bad Boy Mower Parts
025-5338-00

In stock

025-5338-00 -.502 ID X.750 OD - 1.500" Spacer Zinc

$3.62 Usually ship in 1-3 days

In stock

12
025-5339-00 - Bad Boy Mower Parts
025-5339-00

In stock

025-5339-00 - .502 ID - 1.00 OD - 1.750 Length Spacer Zinc

$5.36 Usually ship in 1-3 days

In stock

13
048-6056-00 - Bad Boy Mower Parts
048-6056-00

In stock

048-6056-00 - Toplink/Turnbuckle-Deck Adjust

$53.49 Usually ship in 1-3 days

In stock

14
013-6058-00 - Bad Boy Mower Parts
013-6058-00

In stock

013-6058-00 - 3/4-10 Left Hand Thread Hex Nu ts Zinc GR5

$3.52 Usually ship in 1-3 days

In stock

15
031-6027-00 - Bad Boy Mower Parts
031-6027-00

031-6027-00 - Obsolete

Usually ship in 1-3 days
Newer version is available. Click to see 031-6020-00
16
031-6028-00 - Bad Boy Mower Parts
031-6028-00

031-6028-00 - Obsolete

Usually ship in 1-3 days
Newer version is available. Click to see 031-6020-00
17
Bad Boy Mower Parts - 022-1000-00
022-1000-00

In stock

022-1000-00 - Deck Wheel Only

$17.11 Usually ship in 1-3 days

In stock

18
018-0010-00 - Bad Boy Mower Parts
018-0010-00

In stock

018-0010-00 - Deck Wheel Bolt

$6.48 Usually ship in 1-3 days

In stock

19
Bad Boy Mower Parts - 022-1000-98
022-1000-98

In stock

022-1000-98 - Deck Wheel Assembly

$25.99 Usually ship in 1-3 days

In stock

20
034-2009-00 - Bad Boy Mower Parts
034-2009-00

In stock

034-2009-00 - Deck/Pump Idler Spring

$18.18 Usually ship in 1-3 days

In stock

21
045-6043-00 - Bad Boy Mower Parts
045-6043-00

In stock

045-6043-00 - Black Plastic Knob Spindle Cover

$4.39 Usually ship in 1-3 days

In stock

22
046-6044-00 - Bad Boy Mower Parts
046-6044-00

In stock

046-6044-00 - Female Yoke

$10.77 Usually ship in 1-3 days

In stock

23
046-6048-00 - Bad Boy Mower Parts
046-6048-00

In stock

046-6048-00 - Male Yoke

$15.60 Usually ship in 1-3 days

In stock

24
047-6047-00 - Bad Boy Mower Parts
047-6047-00

In stock

047-6047-00 - 3 Chain

$2.99 Usually ship in 1-3 days

In stock

25
024-6034-00 - Bad Boy Mower Parts
024-6034-00

In stock

024-6034-00 - 1/4 Drive-in Grease Fitting

$2.99 Usually ship in 1-3 days

In stock

26
032-6033-00 - Bad Boy Mower Parts
032-6033-00

In stock

032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms

$3.84 Usually ship in 1-3 days

In stock

27
018-6049-00 - Bad Boy Mower Parts
018-6049-00

In stock

018-6049-00 - 3/8-16 - 1 GR - Hex Bolts Zinc

$2.99 Usually ship in 1-3 days

In stock

28
019-5037-00 - Bad Boy Mower Parts
019-5037-00

In stock

019-5037-00 - 3/8" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

29
018-6021-00 - Bad Boy Mower Parts
018-6021-00

018-6021-00 - Obsolete

Usually ship in 1-3 days
Newer version is available. Click to see 018-6020-00
30
018-5006-00 - Bad Boy Mower Parts
018-5006-00

In stock

018-5006-00 - 1/2-13 - 1-1/2 GR - Hex Bolt, Coarse Thread Bolt

$2.99 Usually ship in 1-3 days

In stock

31
030-6029-00 - Bad Boy Mower Parts
030-6029-00

In stock

030-6029-00 - 3/8-16x1/2 Set Screw

$2.99 Usually ship in 1-3 days

In stock

32
019-4807-00 - Bad Boy Mower Parts
019-4807-00

In stock

019-4807-00 - 5/8" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

33
018-5250-00 - Bad Boy Mower Parts
018-5250-00

In stock

018-5250-00 - 3/8-16 - 3/4 GR - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

34
018-5311-00 - Bad Boy Mower Parts
018-5311-00

In stock

018-5311-00 - 5/8-11 - 4" GR - Hex Bolts Zinc

$4.06 Usually ship in 1-3 days

In stock

35
019-6017-00 - Bad Boy Mower Parts
019-6017-00

In stock

019-6017-00 -.630 ID - 1.122 OD X.142 THK Flat Washer Nylon

$2.99 Usually ship in 1-3 days

In stock

36
019-6042-00 - Bad Boy Mower Parts
019-6042-00

In stock

019-6042-00 -.36" ID Plastic Washer

$2.99 Usually ship in 1-3 days

In stock

37
018-5015-00 - Bad Boy Mower Parts
018-5015-00

In stock

018-5015-00 - 5/16-18 - 1 Button Head Bolt

$2.99 Usually ship in 1-3 days

In stock

38
013-7021-00 - Bad Boy Mower Parts
013-7021-00

In stock

013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc

$2.99 Usually ship in 1-3 days

In stock

39
018-6059-00 - Bad Boy Mower Parts
018-6059-00

In stock

018-6059-00 - 5/8-11 - 2-1/2 GR - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

40
013-7021-00 - Bad Boy Mower Parts
013-7021-00

In stock

013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc

$2.99 Usually ship in 1-3 days

In stock

41
018-7050-00 - Bad Boy Mower Parts
018-7050-00

In stock

018-7050-00 - 1/2-13 - 4-1/2 GR 5 - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

44
018-5040-00 - Bad Boy Mower Parts
018-5040-00

In stock

018-5040-00 - 3/8-16 - 1-1/4 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

45
018-5040-00 - Bad Boy Mower Parts
018-5040-00

In stock

018-5040-00 - 3/8-16 - 1-1/4 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

46
018-6059-00 - Bad Boy Mower Parts
018-6059-00

In stock

018-6059-00 - 5/8-11 - 2-1/2 GR - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

46A
019-5007-00 - Bad Boy Mower Parts
019-5007-00

In stock

019-5007-00 - 1/2 Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

47
018-6036-00 - Bad Boy Mower Parts
018-6036-00

In stock

018-6036-00 - 1/2-13 - 2-3/4 GR - Bolt Zinc

$2.99 Usually ship in 1-3 days

In stock

48
018-6012-00 - Bad Boy Mower Parts
018-6012-00

In stock

018-6012-00 - 3/8 - 1 1/2 Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

49
018-6012-00 - Bad Boy Mower Parts
018-6012-00

In stock

018-6012-00 - 3/8 - 1 1/2 Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

50
019-6020-00 - Bad Boy Mower Parts
019-6020-00

In stock

019-6020-00 - 1/2 Belleville Washer #K2000-G -150

$5.16 Usually ship in 1-3 days

In stock

51
013-8050-00 - Bad Boy Mower Parts
013-8050-00

In stock

013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$2.99 Usually ship in 1-3 days

In stock

52
210-6005-00 - Bad Boy Mower Parts
210-6005-00

In stock

210-6005-00 - Rubber Discharge Chute

$59.91 Usually ship in 1-3 days

In stock

54
210-6005-00 - Bad Boy Mower Parts
210-6005-00

In stock

210-6005-00 - Rubber Discharge Chute

$59.91 Usually ship in 1-3 days

In stock

55
013-8049-00 - 5/16-18 Nylon Flange Nut
013-8049-00

013-8049-00 – 5/16-18 Nylon Flange Nut

$2.99 Usually ship in 1-3 days
56
018-7016-00 - Bad Boy Mower Parts
018-7016-00

In stock

018-7016-00 - 1/2-13 - 3 GR 5 - Hex Bolts Zinc

$2.99 Usually ship in 1-3 days

In stock

57
039-6936-00 - Bad Boy Mower Parts
039-6936-00

In stock

039-6936-00 - Deck Idler Bracket

$39.74 Usually ship in 1-3 days

In stock

59

At BadBoyMowerParts.com, we offer the perfect replacement for your 2009 Diesel 60" Deck Assembly, designed to keep your mower cutting smoothly. A well-maintained deck is crucial for your mower’s efficiency, and we provide high-quality Bad Boy Mower Parts that ensure durability and performance. Our comprehensive Bad Boy Mower Part Diagrams help you easily find the deck assembly and related components you need for your mower. Whether you’re looking for a full deck replacement or specific Bad Boy Lawn Mower Parts like pulleys, spindles, or blades, we have everything you need. Ordering Bad Boy Parts Online is fast and straightforward on our website, where you can quickly browse for the parts that fit your model. Plus, enjoy Free Shipping On Orders Over $100 to get your parts delivered without extra cost, making it even easier to keep your 2009 Diesel Bad Boy Mower running at its best.
