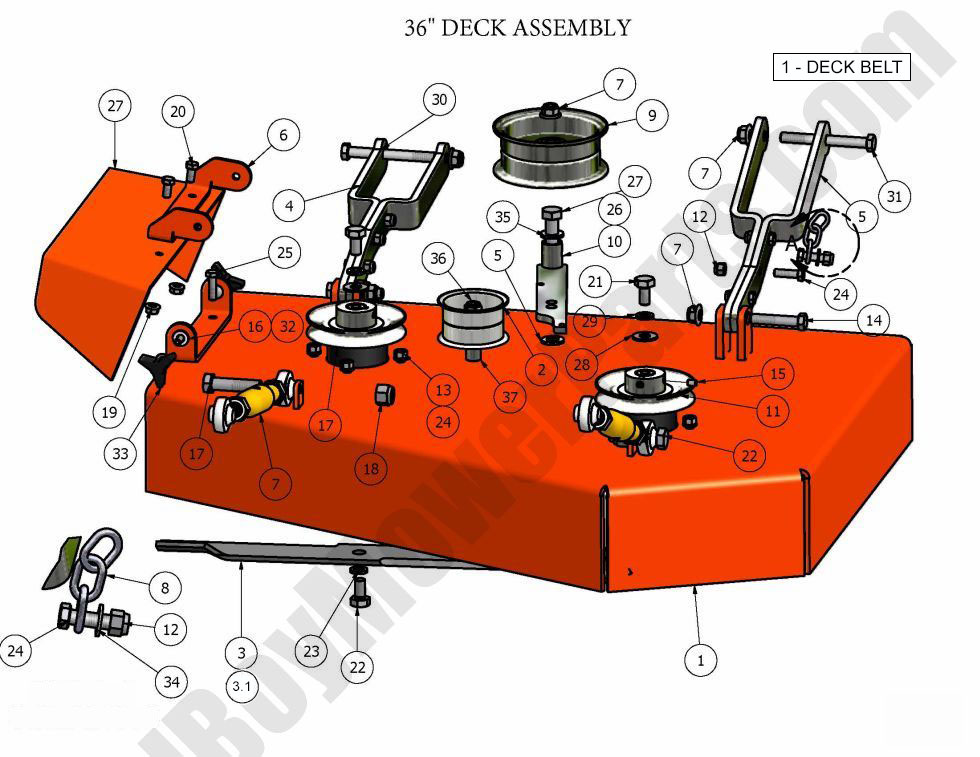

464 - Bad Boy Mower Parts Lookup > 2009 > ZT > 36\" Deck Assembly
041-5200-00 - Bad Boy Mower Parts
041-5200-00

In stock

041-5200-00 - Deck Belt (Not for 48"/50" ZT)

$80.24 Usually ship in 1-3 days

In stock

1
033-4000-00 - Bad Boy Mower Parts
033-4000-00

In stock

033-4000-00 - Flat Idler-36" ZT-26FI-64

$42.58 Usually ship in 1-3 days

In stock

2
038-3010-00 - Bad Boy Mower Parts
038-3010-00

In stock

038-3010-00 - 36 - 52" High Lift Fusion Blade

$22.99 * Usually ship in 1-3 days

In stock

3
038-1015-00 - Bad Boy Mower Parts
038-1015-00

In stock

038-1015-00 - 36" - 52" Fusion Blade - 6-Pack (038-3010-00)

$123.99 * Usually ship in 1-3 days

In stock

3.1
038-5203-00 - Bad Boy Mower Parts
038-5203-00

In stock

038-5203-00 - 36" - 52" Gator Mulching Blade

$22.99 Usually ship in 1-3 days

In stock

3.2
038-1040-00 - Bad Boy Mower Parts
038-1040-00

In stock

038-1040-00 - 36" - 52" Fusion Gator Mulching Blades - 6-Pack (038-5203-00)

$119.99 Usually ship in 1-3 days

In stock

3.3
031-6020-00 - Bad Boy Mower Parts
031-6020-00

In stock

031-6020-00 - Deck Hanger-Black

$132.68 Usually ship in 1-3 days

In stock

4
031-6000-00 - Bad Boy Mower Parts
031-6000-00

031-6000-00 - Obsolete

Usually ship in 1-3 days
Newer version is available. Click to see 031-6020-00
5
086-0017-00 - 2019 Deck Actuator Adaptor
039-4860-00

In stock

039-4860-00 - Deck Chute Bracket for 36 ZT

$16.04 Usually ship in 1-3 days

In stock

6
013-8050-00 - Bad Boy Mower Parts
013-8050-00

In stock

013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$2.99 Usually ship in 1-3 days

In stock

7
047-6047-00 - Bad Boy Mower Parts
047-6047-00

In stock

047-6047-00 - 3 Chain

$2.99 Usually ship in 1-3 days

In stock

8
033-5001-00 - Bad Boy Mower Parts
033-5001-00

In stock

033-5001-00 - 5 3/4" Flat Idler Double Width Pulley

$63.73 Usually ship in 1-3 days

In stock

9
039-6936-00 - Bad Boy Mower Parts
039-6936-00

In stock

039-6936-00 - Deck Idler Bracket

$39.74 Usually ship in 1-3 days

In stock

10
033-6003-00 - Bad Boy Mower Parts
033-6003-00

In stock

033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw)

$42.58 Usually ship in 1-3 days

In stock

11
Bad Boy Part Number 013-5041-00
013-5041-00

In stock

013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc

$2.99 Usually ship in 1-3 days

In stock

12
013-6014-00 - Bad Boy Mower Parts
013-6014-00

In stock

013-6014-00 - 3/8-16 Hex Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

13
018-6036-00 - Bad Boy Mower Parts
018-6036-00

In stock

018-6036-00 - 1/2-13 - 2-3/4 GR - Bolt Zinc

$2.99 Usually ship in 1-3 days

In stock

14
030-6029-00 - Bad Boy Mower Parts
030-6029-00

In stock

030-6029-00 - 3/8-16x1/2 Set Screw

$2.99 Usually ship in 1-3 days

In stock

15
019-6042-00 - Bad Boy Mower Parts
019-6042-00

In stock

019-6042-00 -.36" ID Plastic Washer

$2.99 Usually ship in 1-3 days

In stock

16
018-6059-00 - Bad Boy Mower Parts
018-6059-00

In stock

018-6059-00 - 5/8-11 - 2-1/2 GR - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

17
013-7021-00 - Bad Boy Mower Parts
013-7021-00

In stock

013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc

$2.99 Usually ship in 1-3 days

In stock

18
013-5201-00 - Bad Boy Mower Parts
013-5201-00

In stock

013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations

$2.99 Usually ship in 1-3 days

In stock

19
018-5250-00 - Bad Boy Mower Parts
018-5250-00

In stock

018-5250-00 - 3/8-16 - 3/4 GR - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

20
018-5006-00 - Bad Boy Mower Parts
018-5006-00

In stock

018-5006-00 - 1/2-13 - 1-1/2 GR - Hex Bolt, Coarse Thread Bolt

$2.99 Usually ship in 1-3 days

In stock

21
018-6021-00 - Bad Boy Mower Parts
018-6021-00

018-6021-00 - Obsolete

Usually ship in 1-3 days
Newer version is available. Click to see 018-6020-00
22
019-4807-00 - Bad Boy Mower Parts
019-4807-00

In stock

019-4807-00 - 5/8" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

23
019-5037-00 - Bad Boy Mower Parts
019-5037-00

In stock

019-5037-00 - 3/8" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

24
018-5040-00 - Bad Boy Mower Parts
018-5040-00

In stock

018-5040-00 - 3/8-16 - 1-1/4 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

25
032-6033-00 - Bad Boy Mower Parts
032-6033-00

In stock

032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms

$3.84 Usually ship in 1-3 days

In stock

26
018-5311-00 - Bad Boy Mower Parts
018-5311-00

In stock

018-5311-00 - 5/8-11 - 4" GR - Hex Bolts Zinc

$4.06 Usually ship in 1-3 days

In stock

27
019-6020-00 - Bad Boy Mower Parts
019-6020-00

In stock

019-6020-00 - 1/2 Belleville Washer #K2000-G -150

$5.16 Usually ship in 1-3 days

In stock

28
019-5007-00 - Bad Boy Mower Parts
019-5007-00

In stock

019-5007-00 - 1/2 Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

29
019-5010-00 - Bad Boy Mower Parts
019-5010-00

In stock

019-5010-00 -.565x1.25x.095 Washer Brass

$2.99 Usually ship in 1-3 days

In stock

30
018-7050-00 - Bad Boy Mower Parts
018-7050-00

In stock

018-7050-00 - 1/2-13 - 4-1/2 GR 5 - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

31
018-8065-00 - Bad Boy Mower Parts
018-8065-00

In stock

018-8065-00 - 5/16-18 - 1 Carriage Bolt Zinc

$2.99 Usually ship in 1-3 days

In stock

32
045-6043-00 - Bad Boy Mower Parts
045-6043-00

In stock

045-6043-00 - Black Plastic Knob Spindle Cover

$4.39 Usually ship in 1-3 days

In stock

33
019-5050-00 - Bad Boy Mower Parts
019-5050-00

In stock

019-5050-00 - 3/8 - 2-1/4 OD Fiber Washer

$2.99 Usually ship in 1-3 days

In stock

34
019-6017-00 - Bad Boy Mower Parts
019-6017-00

In stock

019-6017-00 -.630 ID - 1.122 OD X.142 THK Flat Washer Nylon

$2.99 Usually ship in 1-3 days

In stock

35
019-5050-00 - Bad Boy Mower Parts
019-5050-00

In stock

019-5050-00 - 3/8 - 2-1/4 OD Fiber Washer

$2.99 Usually ship in 1-3 days

In stock

36
025-5000-00 - Bad Boy Mower Parts
025-5000-00

In stock

025-5000-00 - 1.125 ID - 1.750 OD X.625 THK Spacer Zinc

$7.69 Usually ship in 1-3 days

In stock

37
210-3600-00 - Bad Boy Mower Parts
210-3600-00

In stock

210-3600-00 - 2007-2009 ZT 36" Deck Discharge Chute

$74.89 Usually ship in 1-3 days

In stock

38

The 2009 ZT 36" Deck Assembly is a crucial component of your mower, ensuring precision cutting and durability. If you need replacement deck parts, BadBoyMowerParts.com has you covered with a full selection of Bad Boy Mower Parts designed for optimal performance. Our Bad Boy Mower Part Diagrams make it easy to find the correct deck assembly components, including spindles, belts, and pulleys. Whether you need to replace a damaged deck or upgrade for better efficiency, we offer high-quality Bad Boy Lawn Mower Parts to keep your 2009 ZT in excellent condition. Ordering Bad Boy Parts Online is fast and convenient, so you can get back to mowing without unnecessary delays. Plus, enjoy Free Shipping On Orders Over $100, making it even more affordable to maintain your mower. Get the best replacement parts for your 2009 ZT 36" Deck Assembly today and experience superior cutting performance.
