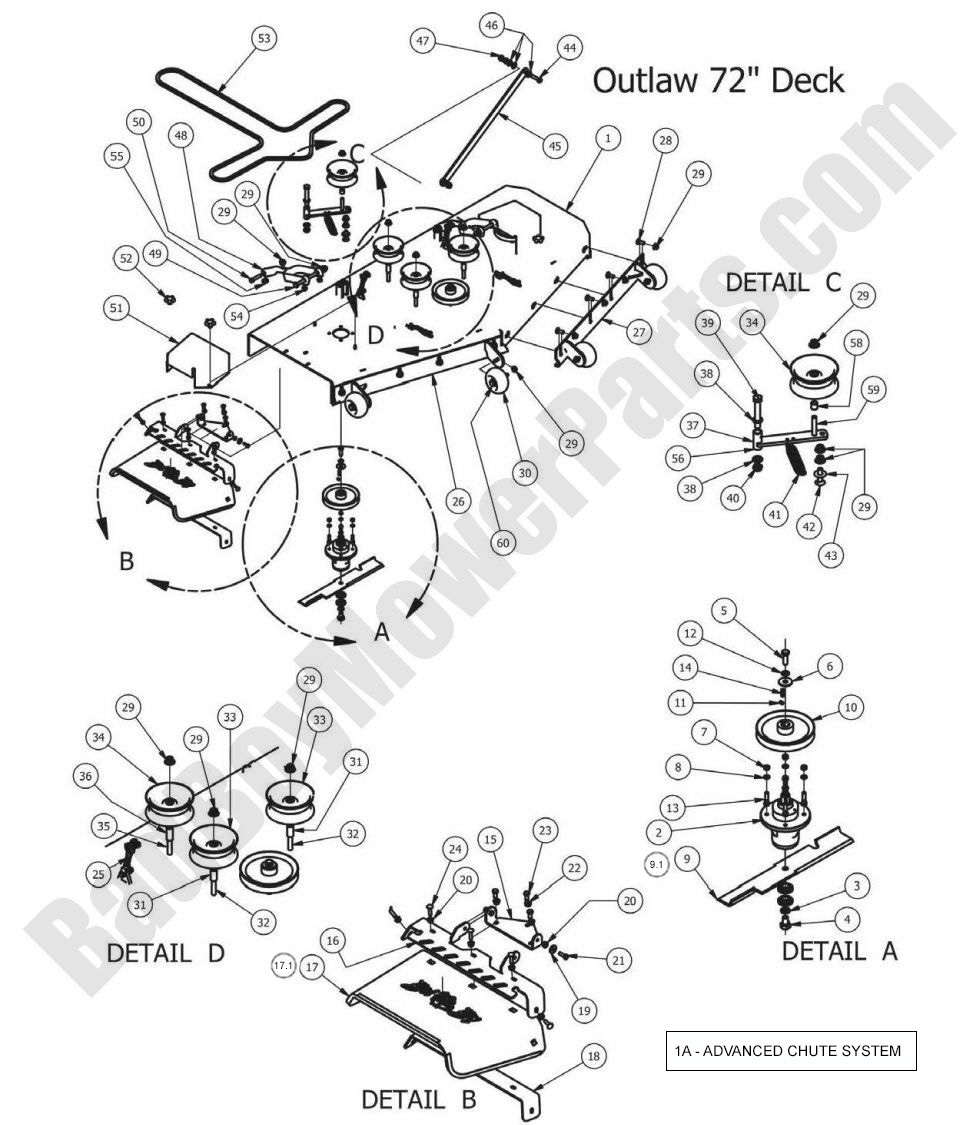

$852 - Bad Boy Mower Parts Lookup > 2013 > Outlaw & Outlaw Extreme > 72\" Deck Assembly$

060-7230-00

In stock

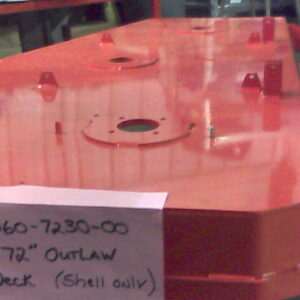

060-7230-00 - 2010-2014 Outlaw/Outlaw XP 72" Deck Shell

$1,461.53 Usually ship in 1-3 days

In stock

088-6000-00

In stock

088-6000-00 - Advanced Chute System

$249.00 Usually ship in 1-3 days

In stock

037-8000-50

037-8000-50 - Obsolete

Usually ship in 1-3 days

Newer version is available. Click to see 037-4000-00

019-4807-00

In stock

019-4807-00 - 5/8" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

018-6020-00

In stock

018-6020-00 - 5/8-18 - 1-1/2 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

018-6019-00

In stock

018-6019-00 - 1/2-20 - 1-1/2 GR - Bolt Zinc, Fine Thread Bolt

$2.99 Usually ship in 1-3 days

In stock

019-6020-00

In stock

019-6020-00 - 1/2 Belleville Washer #K2000-G -150

$5.16 Usually ship in 1-3 days

In stock

013-6014-00

In stock

013-6014-00 - 3/8-16 Hex Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

019-5037-00

In stock

019-5037-00 - 3/8" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

038-7230-00

In stock

038-7230-00 - 72" High Lift Fusion Blade

$24.99 * Usually ship in 1-3 days

In stock

038-5400-00

In stock

038-5400-00 - 72" Gator Mulching Blade

$24.99 Usually ship in 1-3 days

In stock

9.1

038-1030-00

In stock

038-1030-00 - 72" Fusion Blade- 6-Pack (038-7230-00)

$139.99 * Usually ship in 1-3 days

In stock

9.2

038-1050-00

In stock

038-1050-00 - 72" Fusion Gator Mulching Blades - 6-Pack (038-5400-00)

$119.99 Usually ship in 1-3 days

In stock

9.3

033-7203-00

In stock

033-7203-00 - 7" Spindle Deck Pulley 72" Decks - DB-112

$35.48 Usually ship in 1-3 days

In stock

030-6029-00

In stock

030-6029-00 - 3/8-16x1/2 Set Screw

$2.99 Usually ship in 1-3 days

In stock

019-5007-00

In stock

019-5007-00 - 1/2 Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

018-6012-00

In stock

018-6012-00 - 3/8 - 1 1/2 Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

042-6030-00

In stock

042-6030-00 - 1/4" - 1" Square Key

$4.81 Usually ship in 1-3 days

In stock

206-6017-00

In stock

206-6017-00 - Discharge Chute Hanger-Deck

$39.03 Usually ship in 1-3 days

In stock

039-4864-00

In stock

039-4864-00 - Discharge Chute Upper Hanger Plate

$42.52 Usually ship in 1-3 days

In stock

210-6005-00

In stock

210-6005-00 - Rubber Discharge Chute

$59.91 Usually ship in 1-3 days

In stock

210-6005-98

In stock

210-6005-98 - Chute Assembly

$149.99 Usually ship in 1-3 days

In stock

17.1

039-4863-00

In stock

039-4863-00 - Discharge Lower Bracket Rubber Chute

$32.65 Usually ship in 1-3 days

In stock

019-6042-00

In stock

019-6042-00 -.36" ID Plastic Washer

$2.99 Usually ship in 1-3 days

In stock

013-9002-00

In stock

013-9002-00 - 5/16-18 Hex Flange Nuts Zinc - /Serrations

$2.99 Usually ship in 1-3 days

In stock

018-2007-00

In stock

018-2007-00 - 5/16-18 - 1 GR - Hex Bolt Zinc

$2.99 Usually ship in 1-3 days

In stock

013-5201-00

In stock

013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations

$2.99 Usually ship in 1-3 days

In stock

018-5250-00

In stock

018-5250-00 - 3/8-16 - 3/4 GR - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

018-4703-00

In stock

018-4703-00 - 5/16-18 - 1-1/4 Carriage Bolt

$2.99 Usually ship in 1-3 days

In stock

047-2000-00

047-2000-00 - Obsolete

Usually ship in 1-3 days

Newer version is available. Click to see 046-6048-98

060-7211-00

In stock

060-7211-00 - 72" Deck Adjustable Front (Right Gate)

$103.99 Usually ship in 1-3 days

In stock

060-7210-00

In stock

060-7210-00 - 72" Deck Adjustable Front (Left Gate)

$103.99 Usually ship in 1-3 days

In stock

018-3003-00

In stock

018-3003-00 - 1/2 - 1 1/4 Carriage Bolt

$2.99 Usually ship in 1-3 days

In stock

013-8050-00

In stock

013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$2.99 Usually ship in 1-3 days

In stock

022-1000-00

In stock

022-1000-00 - Deck Wheel Only

$17.11 Usually ship in 1-3 days

In stock

022-1000-98

In stock

022-1000-98 - Deck Wheel Assembly

$25.99 Usually ship in 1-3 days

In stock

30A

025-5338-00

In stock

025-5338-00 -.502 ID X.750 OD - 1.500" Spacer Zinc

$3.62 Usually ship in 1-3 days

In stock

018-2018-00

In stock

018-2018-00 - 1/2 - 3 1/2 Flange Bolt - Gr 8

$3.62 Usually ship in 1-3 days

In stock

033-7201-00

In stock

033-7201-00 - 5 3/4 Idler Pulley

$35.48 Usually ship in 1-3 days

In stock

033-5001-00

In stock

033-5001-00 - 5 3/4" Flat Idler Double Width Pulley

$63.73 Usually ship in 1-3 days

In stock

018-5019-00

In stock

018-5019-00 - 1/2-13 - 4 GR - Hex Bolt

$4.39 Usually ship in 1-3 days

In stock

025-5339-00

In stock

025-5339-00 - .502 ID - 1.00 OD - 1.750 Length Spacer Zinc

$5.36 Usually ship in 1-3 days

In stock

039-6945-00

In stock

039-6945-00 - Idler Arm Bracket

$40.53 Usually ship in 1-3 days

In stock

019-6017-00

In stock

019-6017-00 -.630 ID - 1.122 OD X.142 THK Flat Washer Nylon

$2.99 Usually ship in 1-3 days

In stock

018-5311-00

In stock

018-5311-00 - 5/8-11 - 4" GR - Hex Bolts Zinc

$4.06 Usually ship in 1-3 days

In stock

013-5301-00

In stock

013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc

$2.99 Usually ship in 1-3 days

In stock

034-2009-00

In stock

034-2009-00 - Deck/Pump Idler Spring

$18.18 Usually ship in 1-3 days

In stock

018-1050-00

In stock

018-1050-00 - 1/2 - 2 Carriage Bolt

$2.99 Usually ship in 1-3 days

In stock

019-2040-00

In stock

019-2040-00 - 1/2 Flat Washer

$2.99 Usually ship in 1-3 days

In stock

018-5049-00

In stock

018-5049-00 - 1/2-13 - 2 GR - Hex Bolts Zinc

$2.99 Usually ship in 1-3 days

In stock

028-6060-00

In stock

028-6060-00 - Panhard Linkage Bar Outlaw and Diesel Decks

$12.77 Usually ship in 1-3 days

In stock

019-8054-00

In stock

019-8054-00 - .505 ID - 1 OD X.128 THK Flat Washer Nylon

$2.99 Usually ship in 1-3 days

In stock

013-5300-00

In stock

013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations

$2.99 Usually ship in 1-3 days

In stock

031-6010-00

031-6010-00 - Obsolete

Usually ship in 1-3 days

Newer version is available. Click to see 031-6020-00

018-1090-00

In stock

018-1090-00 - 1/2-13x5 1/2 Hex Bolt Grade 5

$3.29 Usually ship in 1-3 days

In stock

018-6037-00

In stock

018-6037-00 - 1/2-13 - 2-1/4 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

014-7204-00

In stock

014-7204-00 - 2007-2020 72" Spindle Cover

$42.58 Usually ship in 1-3 days

In stock

045-6043-00

In stock

045-6043-00 - Black Plastic Knob Spindle Cover

$4.39 Usually ship in 1-3 days

In stock

041-0202-00

In stock

041-0202-00 - B202 Deck Belt for 72"

$109.40 Usually ship in 1-3 days

In stock

032-5056-00

In stock

032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted

$5.82 Usually ship in 1-3 days

In stock

032-5057-00

In stock

032-5057-00 - Flange for Lower Deck Arm SF-1622-5

$14.11 Usually ship in 1-3 days

In stock

039-6945-98

In stock

039-6945-98 - Deck Idler Assy

$78.08 Usually ship in 1-3 days

In stock

025-5203-00

In stock

025-5203-00 - Spacer 3/4" OD - 1/2" ID - 0.75"

$3.29 Usually ship in 1-3 days

In stock

018-7016-00

In stock

018-7016-00 - 1/2-13 - 3 GR 5 - Hex Bolts Zinc

$2.99 Usually ship in 1-3 days

In stock

018-0010-00

In stock

018-0010-00 - Deck Wheel Bolt

$6.48 Usually ship in 1-3 days

In stock

The 72" Deck Assembly on the 2013 Outlaw & Outlaw Extreme is built for large areas, delivering high efficiency and a clean cut. If you need replacement parts or maintenance items for your deck, BadBoyMowerParts.com has you covered. Our comprehensive Bad Boy Mower Part diagrams provide a clear visual guide for locating the correct Bad Boy Lawn Mower Parts. Whether you need a blade, spindle, or deck assembly component, our inventory is fully stocked. Shopping for Bad Boy Parts Online is convenient and secure, allowing you to get your parts quickly. Plus, enjoy Free Shipping On Orders Over $100, so you can order everything you need without additional shipping costs. When it comes to maintaining the 2013 Outlaw & Outlaw Extreme, we provide the best parts to keep your mower operating at peak performance.
