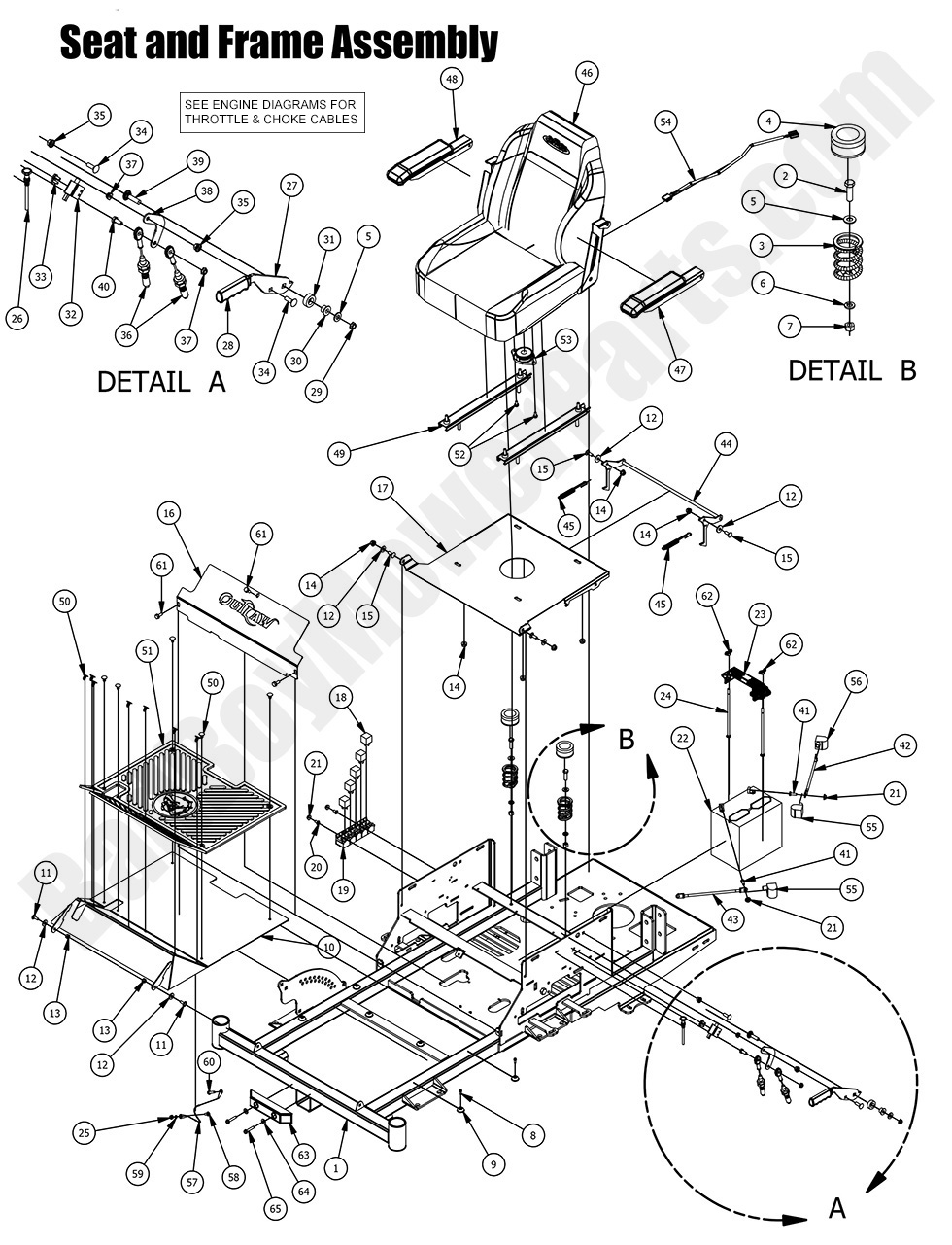

1324 - Bad Boy Mower Parts Lookup > 2016 > Compact Outlaw > Seat & Frame Assembly
086-0017-00 - 2019 Deck Actuator Adaptor
070-5500-00

In stock

070-5500-00 - 2016 Compact Outlaw Frame

$1,049.99 Usually ship in 1-3 days

In stock

1
018-5040-00 - Bad Boy Mower Parts
018-5040-00

In stock

018-5040-00 - 3/8-16 - 1-1/4 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

2
034-8045-00 - Bad Boy Mower Parts
034-8045-00

In stock

034-8045-00 - Seat Spring

$20.49 Usually ship in 1-3 days

In stock

3
014-8047-00 - Bad Boy Mower Parts
014-8047-00

In stock

014-8047-00 - Rubber Cap Cover

$2.99 Usually ship in 1-3 days

In stock

4
019-5029-00 - Bad Boy Mower Parts
019-5029-00

In stock

019-5029-00 - 3/8 USS Flat Washer Zinc

$2.99 Usually ship in 1-3 days

In stock

5
019-5037-00 - Bad Boy Mower Parts
019-5037-00

In stock

019-5037-00 - 3/8" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

6
013-6014-00 - Bad Boy Mower Parts
013-6014-00

In stock

013-6014-00 - 3/8-16 Hex Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

7
030-3050-00 - Bad Boy Mower Parts
030-3050-00

In stock

030-3050-00 - 10 - 1/2 Pan Phil - T/S Zinc

$2.99 Usually ship in 1-3 days

In stock

8
029-4010-00 - Bad Boy Mower Parts
029-4010-00

In stock

029-4010-00 - Button Bumper

$2.99 Usually ship in 1-3 days

In stock

9
079-3120-00 - Bad Boy Mower Parts
079-3120-00

In stock

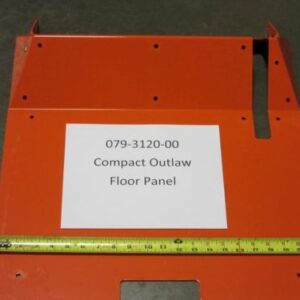

079-3120-00 - 2016-2017 Compact Outlaw Floor Panel Assembly

$106.99 Usually ship in 1-3 days

In stock

10
019-8040-00 - Bad Boy Mower Parts
019-8040-00

In stock

019-8040-00 - 1/4 - 3/4 Carriage Bolt

$2.99 Usually ship in 1-3 days

In stock

11
019-6042-00 - Bad Boy Mower Parts
019-6042-00

In stock

019-6042-00 -.36" ID Plastic Washer

$2.99 Usually ship in 1-3 days

In stock

12
013-8073-00 - Bad Boy Mower Parts
013-8073-00

In stock

013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc

$2.99 Usually ship in 1-3 days

In stock

13
013-8049-00 - 5/16-18 Nylon Flange Nut
013-8049-00

013-8049-00 – 5/16-18 Nylon Flange Nut

$2.99 Usually ship in 1-3 days
14
018-8066-00 - Bad Boy Mower Parts
018-8066-00

In stock

018-8066-00 - 5/16 - 7/8 Carriage Bolt

$2.99 Usually ship in 1-3 days

In stock

15
014-3500-00 - Bad Boy Mower Parts
014-3500-00

In stock

014-3500-00 - Compact Outlaw Cooler Cover

$64.19 Usually ship in 1-3 days

In stock

16
026-1016-00 - Bad Boy Mower Parts
026-1016-00

In stock

026-1016-00 - Seat Plate

$112.99 Usually ship in 1-3 days

In stock

17
086-1201-00 - Bad Boy Mower Parts
086-1201-00

In stock

086-1201-00 - Relay Terminal

$24.97 Usually ship in 1-3 days

In stock

18
086-3050-00 - Bad Boy Mower Parts
086-3050-00

086-3050-00 - Obsolete

Usually ship in 1-3 days
Newer version is available. Click to see 086-3050-17
19
018-2012-00 - Bad Boy Mower Parts
018-2012-00

In stock

018-2012-00 - 1/4-20 - 1/2 BS C/S 18-8 SS

$2.99 Usually ship in 1-3 days

In stock

20
013-9001-00 - Bad Boy Mower Parts
013-9001-00

In stock

013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations

$2.99 Usually ship in 1-3 days

In stock

21
043-8929-00 - Bad Boy Mower Parts
043-8929-00

In stock

043-8929-00 - Battery Hold Down Kit

$17.49 Usually ship in 1-3 days

In stock

23
018-8050-00 - Bad Boy Mower Parts
018-8050-00

In stock

018-8050-00 - 1/4-20 - 8 Carriage Bolts Zinc Bolt for Battery Hold Down

$2.99 Usually ship in 1-3 days

In stock

24
013-8039-00 - Bad Boy Mower Parts
013-8039-00

In stock

013-8039-00 - 1/4-20 Hex Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

25
069-1000-00 - Bad Boy Mower Parts
069-1000-00

In stock

069-1000-00 - Brake Handle Cam Over

$7.28 Usually ship in 1-3 days

In stock

27
069-7000-00 - Bad Boy Mower Parts
069-7000-00

In stock

069-7000-00 - Rubber Brake Grip

$6.41 Usually ship in 1-3 days

In stock

28
013-0012-00 - Bad Boy Mower Parts
013-0012-00

In stock

013-0012-00 - 3/8-16 Centerlock Half Nut

$3.29 Usually ship in 1-3 days

In stock

29
032-5053-00 - Bad Boy Mower Parts
032-5053-00

In stock

032-5053-00 - Bronze Bushing SF-1220-8 2013 - UP CZT/ZT Brake Bushing

$2.99 Usually ship in 1-3 days

In stock

30
025-0001-00 - Bad Boy Mower Parts
025-0001-00

In stock

025-0001-00 - Brake Lever Spacer

$8.01 Usually ship in 1-3 days

In stock

31
077-8073-00 - Bad Boy safety switches
077-8073-00

In stock

077-8073-00 - Safety Switch

$10.99 Usually ship in 1-3 days

In stock

32
018-1080-00 - Bad Boy Mower Parts
018-1080-00

In stock

018-1080-00 - 12-24 - 1/2 HWH Bolt - Safety Switch

$2.99 Usually ship in 1-3 days

In stock

33
018-8065-00 - Bad Boy Mower Parts
018-8065-00

In stock

018-8065-00 - 5/16-18 - 1 Carriage Bolt Zinc

$2.99 Usually ship in 1-3 days

In stock

34
013-9002-00 - Bad Boy Mower Parts
013-9002-00

In stock

013-9002-00 - 5/16-18 Hex Flange Nuts Zinc - /Serrations

$2.99 Usually ship in 1-3 days

In stock

35
064-3000-00 - Bad Boy Mower Parts
064-3000-00

In stock

064-3000-00 - 44" Brake Cable

$53.49 Usually ship in 1-3 days

In stock

36
013-9005-00 - Bad Boy Mower Parts
013-9005-00

In stock

013-9005-00 - 5/16-18 Nylock Jam Nut

$2.99 Usually ship in 1-3 days

In stock

37
039-0150-00 - Bad Boy Mower Parts
039-0150-00

In stock

039-0150-00 - Brake Cable Adapter Bracket2015 Outlaws/XP

$18.72 Usually ship in 1-3 days

In stock

38
018-4706-00 - Bad Boy Mower Parts
018-4706-00

In stock

018-4706-00 - 3/8 - 1 1/2 Carriage Bolt

$2.99 Usually ship in 1-3 days

In stock

39
018-8063-00 - Bad Boy Mower Parts
018-8063-00

In stock

018-8063-00 - 5/16-18 - 3/4 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

40
018-8052-00 - Bad Boy Mower Parts
018-8052-00

In stock

018-8052-00 - 1/4-20 - 3/4 GR 5 - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

41
064-5300-00 – 24″ Red Battery Cable
064-5300-00

In stock

064-5300-00 - 24" Red Battery Cable

$21.85 Usually ship in 1-3 days

In stock

42
064-8061-00 - Bad Boy Mower Parts
064-8061-00

In stock

064-8061-00 - 30 Black Battery Cable

$22.92 Usually ship in 1-3 days

In stock

43
028-0085-00 - Bad Boy Mower Parts
028-0085-00

In stock

028-0085-00 - Seat Latch Rod Assembly

$26.70 Usually ship in 1-3 days

In stock

44
034-1025-00 - Bad Boy Mower Parts
034-1025-00

In stock

034-1025-00 - Brake Spring

$12.48 Usually ship in 1-3 days

In stock

45
071-5055-00 - Bad Boy Mower Parts
071-5055-00

In stock

071-5055-00 - 2016-2018 Compact Outlaw Seat

$499.99 Usually ship in 1-3 days

In stock

46
071-5056-00 - Bad Boy Mower Parts
071-5056-00

In stock

071-5056-00 - Left Armrest w/Pad-071-5055-00

$149.99 Usually ship in 1-3 days

In stock

47
071-5057-00 - Bad Boy Mower Parts
071-5057-00

In stock

071-5057-00 - Righ Armrest w/Pad-071-5055-00

$110.99 Usually ship in 1-3 days

In stock

48
071-2020-50 - Bad Boy Mower Parts
071-2020-50

071-2020-50 - Obsolete

Usually ship in 1-3 days
Newer version is available. Click to see 071-2012-00
49
040-6090-00 - Bad Boy Mower Parts
040-6090-00

040-6090-00 - Obsolete

Usually ship in 1-3 days
Newer version is available. Click to see 040-6080-00
50
081-1000-00 - Bad Boy Mower Parts
081-1000-00

In stock

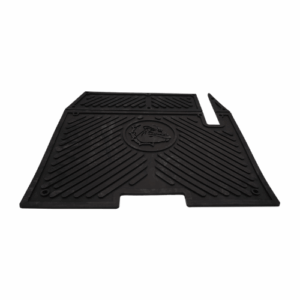

081-1000-00 - 2016-2017 Compact Outlaw Floor Mat

$53.49 Usually ship in 1-3 days

In stock

51
030-7041-00 - Bad Boy Mower Parts
030-7041-00

In stock

030-7041-00 - 1/4-20x1/2 HWH Bolt Slot Type

$2.99 Usually ship in 1-3 days

In stock

52
071-8061-00 - Bad Boy Mower Parts
071-8061-00

In stock

071-8061-00 - Seat Switch

$19.14 Usually ship in 1-3 days

In stock

53
036-5300-00 - Bad Boy Mower Parts
036-5300-00

In stock

036-5300-00 - Seat Switch Adaptor

$15.55 Usually ship in 1-3 days

In stock

54
103-5400-00 - Bad Boy Mower Parts
103-5400-00

In stock

103-5400-00 - Black Cable Boot

$4.37 Usually ship in 1-3 days

In stock

55
103-5300-00 - Bad Boy Mower Parts
103-5300-00

In stock

103-5300-00 - Red Lug Boot

$5.82 Usually ship in 1-3 days

In stock

56
064-2006-00 - Bad Boy Mower Parts
064-2006-00

In stock

064-2006-00 - Floorboard Cable

$15.55 Usually ship in 1-3 days

In stock

57
018-8064-00 - Bad Boy Mower Parts
018-8064-00

In stock

018-8064-00 - 1/4-20 - 5/8 BS C/S 18-8 SS

$2.99 Usually ship in 1-3 days

In stock

58
019-4008-00 - Bad Boy Mower Parts
019-4008-00

In stock

019-4008-00 - 1/4 Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

59
030-7040-00 - Bad Boy Mower Parts
030-7040-00

In stock

030-7040-00 - 1/4 - 1 Hex Head Tek Screw

$2.99 Usually ship in 1-3 days

In stock

60
030-7042-00 - Bad Boy Mower Parts
030-7042-00

In stock

030-7042-00 - 5/16 - 3/4 Hex Washer Type - Thread Cutting Screw

$2.99 Usually ship in 1-3 days

In stock

61
013-8051-00 - Bad Boy Mower Parts
013-8051-00

In stock

013-8051-00 - 1/4-20 Wing Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

62
029-7038-00 - Bad Boy Mower Parts
029-7038-00

In stock

029-7038-00 - 8 Bumper

$28.32 Usually ship in 1-3 days

In stock

63
019-8044-00 - Bad Boy Mower Parts
019-8044-00

In stock

019-8044-00 - 5/16 USS Flat Washer Zinc

$2.99 Usually ship in 1-3 days

In stock

64
030-7039-00 - Bad Boy Mower Parts
030-7039-00

In stock

030-7039-00 - 14 - 1-1/2 HWA - T/S Zinc

$2.99 Usually ship in 1-3 days

In stock

65

Improve operator comfort and safety with the 2016 Compact Outlaw Seat & Frame Assembly, designed for secure seating and robust support. This assembly combines a quality seat with a durable frame, engineered to provide stability and ergonomic support during long mowing sessions. Its design ensures a comfortable ride while withstanding regular use, reducing fatigue and enhancing control. Ideal for replacing worn parts or upgrading your setup, the assembly offers balanced strength and comfort. Every element is crafted and tested to meet strict quality standards for long-lasting performance and maintenance. Its seamless integration with the mower’s design contributes to safety and a better riding experience. Visit BadBoyMowerParts.com for replacement parts and expert support. Enhance your mower’s operator comfort with Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 for full technical assistance and quality components. Upgrade your seat and frame assembly now. Order yours today.
