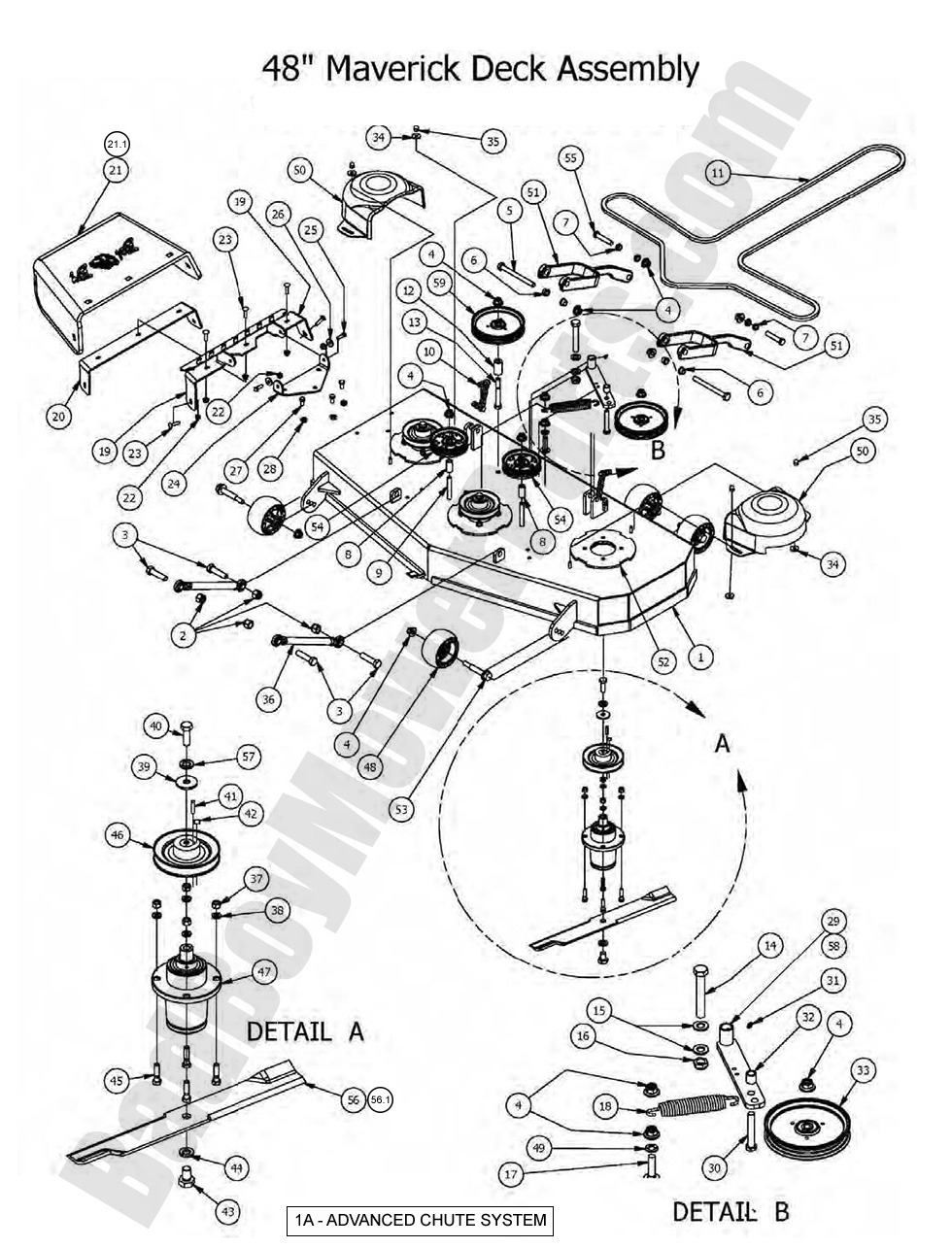

$1328 - Bad Boy Mower Parts Lookup > 2016 > Maverick > 48\" Deck Assembly$

060-6048-00

In stock

060-6048-00 - 2013-2015 CZT, 2014-2016 ZT, 2016-2017 Maverick 48" Deck Shell

$1,196.14 Usually ship in 1-3 days

In stock

088-6006-00

In stock

088-6006-00 - Advanced Chute System

$249.00 Usually ship in 1-3 days

In stock

013-7021-00

In stock

013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc

$2.99 Usually ship in 1-3 days

In stock

018-6059-00

In stock

018-6059-00 - 5/8-11 - 2-1/2 GR - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

013-8050-00

In stock

013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$2.99 Usually ship in 1-3 days

In stock

018-1090-00

In stock

018-1090-00 - 1/2-13x5 1/2 Hex Bolt Grade 5

$3.29 Usually ship in 1-3 days

In stock

032-5056-00

In stock

032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted

$5.82 Usually ship in 1-3 days

In stock

032-5057-00

In stock

032-5057-00 - Flange for Lower Deck Arm SF-1622-5

$14.11 Usually ship in 1-3 days

In stock

025-5338-00

In stock

025-5338-00 -.502 ID X.750 OD - 1.500" Spacer Zinc

$3.62 Usually ship in 1-3 days

In stock

018-2018-00

In stock

018-2018-00 - 1/2 - 3 1/2 Flange Bolt - Gr 8

$3.62 Usually ship in 1-3 days

In stock

047-8000-00

In stock

047-8000-00 - 2016-2017 Maverick Deck Hanger Chain

$8.74 Usually ship in 1-3 days

In stock

041-1470-00

In stock

041-1470-00 - B147 Deck Belt

$87.39 Usually ship in 1-3 days

In stock

025-5339-00

In stock

025-5339-00 - .502 ID - 1.00 OD - 1.750 Length Spacer Zinc

$5.36 Usually ship in 1-3 days

In stock

018-5019-00

In stock

018-5019-00 - 1/2-13 - 4 GR - Hex Bolt

$4.39 Usually ship in 1-3 days

In stock

018-5311-00

In stock

018-5311-00 - 5/8-11 - 4" GR - Hex Bolts Zinc

$4.06 Usually ship in 1-3 days

In stock

019-6017-00

In stock

019-6017-00 -.630 ID - 1.122 OD X.142 THK Flat Washer Nylon

$2.99 Usually ship in 1-3 days

In stock

013-5301-00

In stock

013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc

$2.99 Usually ship in 1-3 days

In stock

018-1050-00

In stock

018-1050-00 - 1/2 - 2 Carriage Bolt

$2.99 Usually ship in 1-3 days

In stock

034-2009-00

In stock

034-2009-00 - Deck/Pump Idler Spring

$18.18 Usually ship in 1-3 days

In stock

039-4870-00

In stock

039-4870-00 - Discharge Top Bracket, Rubber Chute Assembly

$42.52 Usually ship in 1-3 days

In stock

039-4871-00

In stock

039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute

$32.65 Usually ship in 1-3 days

In stock

210-6005-00

In stock

210-6005-00 - Rubber Discharge Chute

$59.91 Usually ship in 1-3 days

In stock

210-6005-48

In stock

210-6005-48 - Chute Assembly

$169.99 Usually ship in 1-3 days

In stock

21.1

013-8049-00

013-8049-00 – 5/16-18 Nylon Flange Nut

$2.99 Usually ship in 1-3 days

018-4703-00

In stock

018-4703-00 - 5/16-18 - 1-1/4 Carriage Bolt

$2.99 Usually ship in 1-3 days

In stock

206-6017-00

In stock

206-6017-00 - Discharge Chute Hanger-Deck

$39.03 Usually ship in 1-3 days

In stock

018-2007-00

In stock

018-2007-00 - 5/16-18 - 1 GR - Hex Bolt Zinc

$2.99 Usually ship in 1-3 days

In stock

019-6042-00

In stock

019-6042-00 -.36" ID Plastic Washer

$2.99 Usually ship in 1-3 days

In stock

018-5250-00

In stock

018-5250-00 - 3/8-16 - 3/4 GR - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

013-5201-00

In stock

013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations

$2.99 Usually ship in 1-3 days

In stock

039-6945-00

In stock

039-6945-00 - Idler Arm Bracket

$40.53 Usually ship in 1-3 days

In stock

018-7016-00

In stock

018-7016-00 - 1/2-13 - 3 GR 5 - Hex Bolts Zinc

$2.99 Usually ship in 1-3 days

In stock

024-6034-00

In stock

024-6034-00 - 1/4 Drive-in Grease Fitting

$2.99 Usually ship in 1-3 days

In stock

025-5203-00

In stock

025-5203-00 - Spacer 3/4" OD - 1/2" ID - 0.75"

$3.29 Usually ship in 1-3 days

In stock

033-7201-00

In stock

033-7201-00 - 5 3/4 Idler Pulley

$35.48 Usually ship in 1-3 days

In stock

019-6050-00

In stock

019-6050-00 -.360 ID Black Plastic Washer

$2.99 Usually ship in 1-3 days

In stock

013-0004-00

In stock

013-0004-00 - Acorn Nut-Pulley Cover

$3.29 Usually ship in 1-3 days

In stock

048-6060-00

In stock

048-6060-00 - CZT/ZT/Maverick/Stand-On Toplink/Turnbuckle

$56.77 Usually ship in 1-3 days

In stock

013-6014-00

In stock

013-6014-00 - 3/8-16 Hex Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

019-5037-00

In stock

019-5037-00 - 3/8" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

019-6020-00

In stock

019-6020-00 - 1/2 Belleville Washer #K2000-G -150

$5.16 Usually ship in 1-3 days

In stock

018-6019-00

In stock

018-6019-00 - 1/2-20 - 1-1/2 GR - Bolt Zinc, Fine Thread Bolt

$2.99 Usually ship in 1-3 days

In stock

042-6030-00

In stock

042-6030-00 - 1/4" - 1" Square Key

$4.81 Usually ship in 1-3 days

In stock

030-0050-00

In stock

030-0050-00 - 5/16 Set Screw

$2.99 Usually ship in 1-3 days

In stock

018-6020-00

In stock

018-6020-00 - 5/8-18 - 1-1/2 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

019-4807-00

In stock

019-4807-00 - 5/8" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

018-6012-00

In stock

018-6012-00 - 3/8 - 1 1/2 Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

033-6003-00

In stock

033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw)

$42.58 Usually ship in 1-3 days

In stock

037-6015-50

In stock

037-6015-50 - Spindle Assembly

$199.99 Usually ship in 1-3 days

In stock

022-1000-00

In stock

022-1000-00 - Deck Wheel Only

$17.11 Usually ship in 1-3 days

In stock

019-0007-00

In stock

019-0007-00 -.517 Square Hole Round Washer

$2.99 Usually ship in 1-3 days

In stock

014-4000-00

In stock

014-4000-00 - Pulley Cover

$28.39 Usually ship in 1-3 days

In stock

031-6020-00

In stock

031-6020-00 - Deck Hanger-Black

$132.68 Usually ship in 1-3 days

In stock

026-0025-00

In stock

026-0025-00 - Deck Spindle Support Plate

$14.19 Usually ship in 1-3 days

In stock

018-0010-00

In stock

018-0010-00 - Deck Wheel Bolt

$6.48 Usually ship in 1-3 days

In stock

033-6001-00

In stock

033-6001-00 - 4 3/4 Idler Pulley

$31.22 Usually ship in 1-3 days

In stock

018-0015-00

In stock

018-0015-00 - 1/2-13 - 2 1/2 Hex Bolt Grade 5

$2.99 Usually ship in 1-3 days

In stock

038-5350-00

In stock

038-5350-00 - 48"/50" High Lift Fusion Blade

$22.99 * Usually ship in 1-3 days

In stock

038-5000-00

In stock

038-5000-00 - 48"/50" Gator Mulching Blade

$22.99 * Usually ship in 1-3 days

In stock

56.1

038-1000-00

In stock

038-1000-00 - 48/50" Fusion Blades - 6-Pack (038-5350-00)

$118.99 * Usually ship in 1-3 days

In stock

56.2

038-1035-00

In stock

038-1035-00 - 48/50" Fusion Gator Mulching Blades - 6-Pack

$122.99 * Usually ship in 1-3 days

In stock

56.3

019-5007-00

In stock

019-5007-00 - 1/2 Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

039-6945-01

In stock

039-6945-01 - Deck Idler Assembly

$40.65 Usually ship in 1-3 days

In stock

033-7201-25

In stock

033-7201-25 - 5 3/4 Idler Pulley-Capitol Stampings

$35.48 Usually ship in 1-3 days

In stock

Your 2016 Maverick 48" Deck Assembly is essential for delivering a clean, professional cut. At BadBoyMowerParts.com, we offer Bad Boy Mower Part diagrams to help you find everything from deck belts to spindles. Our collection of Bad Boy Mower Parts ensures your mower deck remains in top condition for optimal performance. Whether you need replacement pulleys, blades, or hardware, our high-quality Bad Boy Lawn Mower Parts guarantee a precise fit. Ordering Bad Boy Parts Online is simple with our well-organized website, allowing you to get the right components quickly and easily. We understand that maintaining your mower deck is key to extending the life of your machine, which is why we offer only the best parts available. Plus, enjoy Free Shipping On Orders Over $100, making maintenance even more convenient. Keep your 2016 Maverick 48" Deck Assembly in peak shape with parts from BadBoyMowerParts.com, your trusted source for mower repairs and upgrades.
