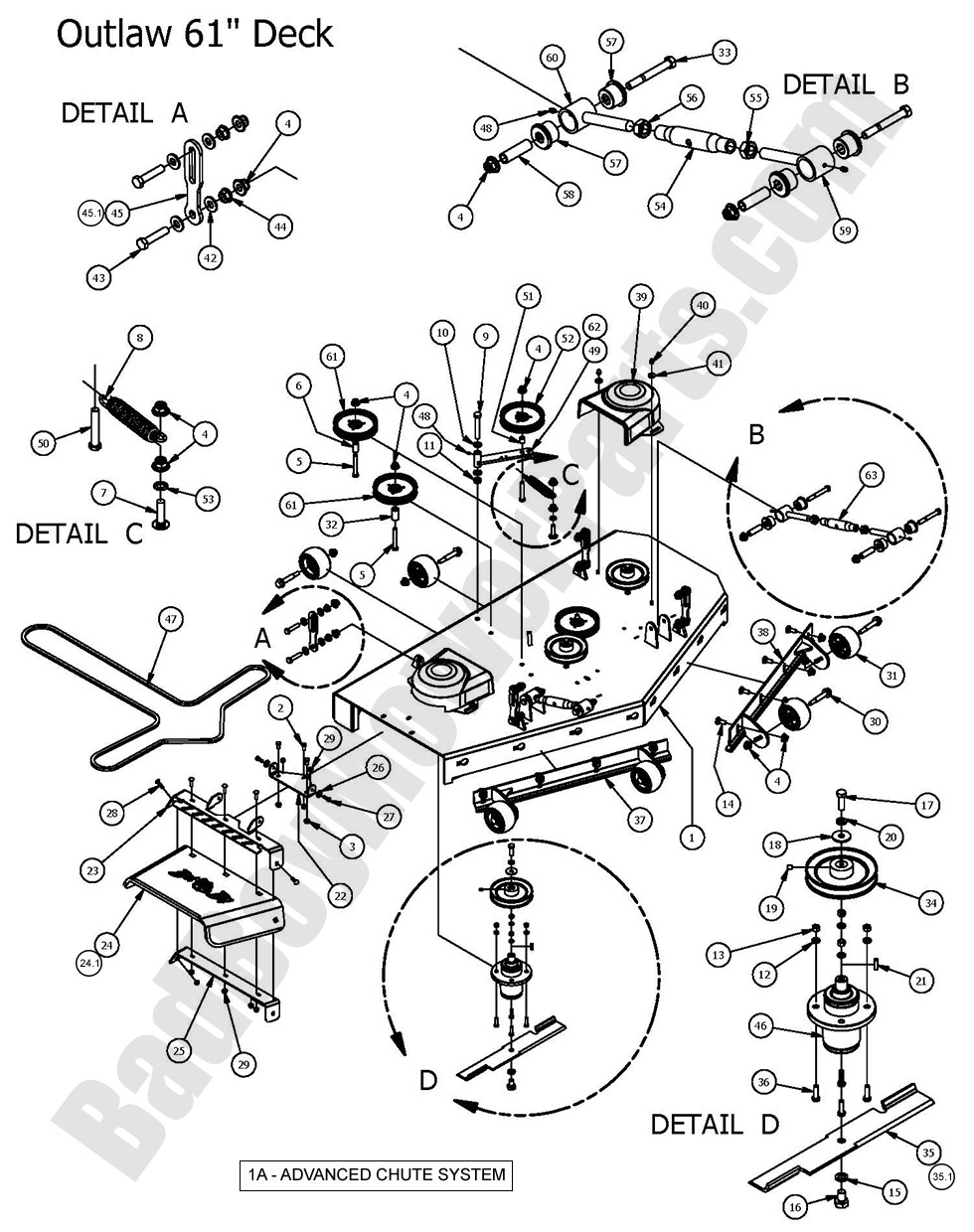

$1368 - Bad Boy Mower Parts Lookup > 2016 > Outlaw & Outlaw Extreme > 61\" Deck Assembly$

060-6150-00

In stock

060-6150-00 - 2015-2018 Outlaw/XP and Diesel/Compact Diesel (28hp/1100CC) 61" Deck Shell

$1,199.99 Usually ship in 1-3 days

In stock

088-6000-00

In stock

088-6000-00 - Advanced Chute System

$249.00 Usually ship in 1-3 days

In stock

018-5250-00

In stock

018-5250-00 - 3/8-16 - 3/4 GR - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

013-5201-00

In stock

013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations

$2.99 Usually ship in 1-3 days

In stock

013-8050-00

In stock

013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$2.99 Usually ship in 1-3 days

In stock

018-2018-00

In stock

018-2018-00 - 1/2 - 3 1/2 Flange Bolt - Gr 8

$3.62 Usually ship in 1-3 days

In stock

025-5338-00

In stock

025-5338-00 -.502 ID X.750 OD - 1.500" Spacer Zinc

$3.62 Usually ship in 1-3 days

In stock

018-1050-00

In stock

018-1050-00 - 1/2 - 2 Carriage Bolt

$2.99 Usually ship in 1-3 days

In stock

034-2020-00

In stock

034-2020-00 - Idler Spring

$17.11 Usually ship in 1-3 days

In stock

018-5311-00

In stock

018-5311-00 - 5/8-11 - 4" GR - Hex Bolts Zinc

$4.06 Usually ship in 1-3 days

In stock

019-6017-00

In stock

019-6017-00 -.630 ID - 1.122 OD X.142 THK Flat Washer Nylon

$2.99 Usually ship in 1-3 days

In stock

013-5301-00

In stock

013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc

$2.99 Usually ship in 1-3 days

In stock

019-5037-00

In stock

019-5037-00 - 3/8" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

013-6014-00

In stock

013-6014-00 - 3/8-16 Hex Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

018-3003-00

In stock

018-3003-00 - 1/2 - 1 1/4 Carriage Bolt

$2.99 Usually ship in 1-3 days

In stock

019-4807-00

In stock

019-4807-00 - 5/8" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

018-6020-00

In stock

018-6020-00 - 5/8-18 - 1-1/2 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

018-6019-00

In stock

018-6019-00 - 1/2-20 - 1-1/2 GR - Bolt Zinc, Fine Thread Bolt

$2.99 Usually ship in 1-3 days

In stock

019-6020-00

In stock

019-6020-00 - 1/2 Belleville Washer #K2000-G -150

$5.16 Usually ship in 1-3 days

In stock

030-0050-00

In stock

030-0050-00 - 5/16 Set Screw

$2.99 Usually ship in 1-3 days

In stock

019-5007-00

In stock

019-5007-00 - 1/2 Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

042-6030-00

In stock

042-6030-00 - 1/4" - 1" Square Key

$4.81 Usually ship in 1-3 days

In stock

206-6017-00

In stock

206-6017-00 - Discharge Chute Hanger-Deck

$39.03 Usually ship in 1-3 days

In stock

039-4864-00

In stock

039-4864-00 - Discharge Chute Upper Hanger Plate

$42.52 Usually ship in 1-3 days

In stock

210-6005-00

In stock

210-6005-00 - Rubber Discharge Chute

$59.91 Usually ship in 1-3 days

In stock

210-6005-98

In stock

210-6005-98 - Chute Assembly

$149.99 Usually ship in 1-3 days

In stock

24.1

039-4863-00

In stock

039-4863-00 - Discharge Lower Bracket Rubber Chute

$32.65 Usually ship in 1-3 days

In stock

019-6042-00

In stock

019-6042-00 -.36" ID Plastic Washer

$2.99 Usually ship in 1-3 days

In stock

018-2007-00

In stock

018-2007-00 - 5/16-18 - 1 GR - Hex Bolt Zinc

$2.99 Usually ship in 1-3 days

In stock

018-4703-00

In stock

018-4703-00 - 5/16-18 - 1-1/4 Carriage Bolt

$2.99 Usually ship in 1-3 days

In stock

013-8049-00

013-8049-00 – 5/16-18 Nylon Flange Nut

$2.99 Usually ship in 1-3 days

018-0010-00

In stock

018-0010-00 - Deck Wheel Bolt

$6.48 Usually ship in 1-3 days

In stock

022-1000-00

In stock

022-1000-00 - Deck Wheel Only

$17.11 Usually ship in 1-3 days

In stock

025-5339-00

In stock

025-5339-00 - .502 ID - 1.00 OD - 1.750 Length Spacer Zinc

$5.36 Usually ship in 1-3 days

In stock

018-5019-00

In stock

018-5019-00 - 1/2-13 - 4 GR - Hex Bolt

$4.39 Usually ship in 1-3 days

In stock

033-6004-00

In stock

033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw)

$35.48 Usually ship in 1-3 days

In stock

038-6080-00

In stock

038-6080-00 - 61" High Lift Fusion Blade

$22.99 * Usually ship in 1-3 days

In stock

038-6081-00

In stock

038-6081-00 - 61" Gator Blade for Outlaw

$22.99 * Usually ship in 1-3 days

In stock

35.1

038-6085-00

In stock

038-6085-00 - 61" High Lift Fusion Blade - 6-Pack (038-6080-00)

$131.99 * Usually ship in 1-3 days

In stock

35.2

038-6082-00

In stock

038-6082-00 - 61" Gator Blade - Outlaw - 6-Pack (038-6081-00)

$140.99 * Usually ship in 1-3 days

In stock

35.3

018-5040-00

In stock

018-5040-00 - 3/8-16 - 1-1/4 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

060-6220-00

In stock

060-6220-00 - 61 Adjustable Deck Front (Left Gate)

$103.99 Usually ship in 1-3 days

In stock

060-6210-00

In stock

060-6210-00 - 61 Adjustable Deck Front (Right Gate)

$103.99 Usually ship in 1-3 days

In stock

014-5000-00

In stock

014-5000-00 - Pulley Cover

$15.60 Usually ship in 1-3 days

In stock

013-0004-00

In stock

013-0004-00 - Acorn Nut-Pulley Cover

$3.29 Usually ship in 1-3 days

In stock

019-6050-00

In stock

019-6050-00 -.360 ID Black Plastic Washer

$2.99 Usually ship in 1-3 days

In stock

019-8054-00

In stock

019-8054-00 - .505 ID - 1 OD X.128 THK Flat Washer Nylon

$2.99 Usually ship in 1-3 days

In stock

018-6037-00

In stock

018-6037-00 - 1/2-13 - 2-1/4 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

013-5300-00

In stock

013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations

$2.99 Usually ship in 1-3 days

In stock

039-2125-00

039-2125-00 - Obsolete

Usually ship in 1-3 days

Newer version is available. Click to see 039-2125-17

039-2125-17

In stock

039-2125-17 - Deck Hanger Assembly

$15.60 Usually ship in 1-3 days

In stock

45.1

037-4000-50

037-4000-50 - Obsolete

Usually ship in 1-3 days

Newer version is available. Click to see 037-4000-00

041-0178-00

In stock

041-0178-00 - B178 Deck Belt For 61" Outlaw/Outlaw XP

$96.29 Usually ship in 1-3 days

In stock

024-6034-00

In stock

024-6034-00 - 1/4 Drive-in Grease Fitting

$2.99 Usually ship in 1-3 days

In stock

039-6945-00

In stock

039-6945-00 - Idler Arm Bracket

$40.53 Usually ship in 1-3 days

In stock

018-7016-00

In stock

018-7016-00 - 1/2-13 - 3 GR 5 - Hex Bolts Zinc

$2.99 Usually ship in 1-3 days

In stock

025-5203-00

In stock

025-5203-00 - Spacer 3/4" OD - 1/2" ID - 0.75"

$3.29 Usually ship in 1-3 days

In stock

033-7201-00

In stock

033-7201-00 - 5 3/4 Idler Pulley

$35.48 Usually ship in 1-3 days

In stock

019-0007-00

In stock

019-0007-00 -.517 Square Hole Round Washer

$2.99 Usually ship in 1-3 days

In stock

048-7020-00

048-7020-00 - Outlaw Toplink Body

Usually ship in 1-3 days

Newer version is available. Click to see 048-9000-00

013-0008-00

In stock

013-0008-00 - 11/16-12 Lefthand Hex Nut-Topl ink

$2.99 Usually ship in 1-3 days

In stock

013-0007-00

In stock

013-0007-00 - 11/16-12 Hex Nut Toplink

$2.99 Usually ship in 1-3 days

In stock

032-2000-00

In stock

032-2000-00 - Toplink Bushing

$10.99 Usually ship in 1-3 days

In stock

032-2001-00

In stock

032-2001-00 - Toplink Sleeve

$4.37 Usually ship in 1-3 days

In stock

048-7022-00

048-7022-00 - Obsolete

Usually ship in 1-3 days

Newer version is available. Click to see 048-9000-00

048-7021-00

048-7021-00 - Obsolete

Usually ship in 1-3 days

Newer version is available. Click to see 048-9000-00

033-7201-25

In stock

033-7201-25 - 5 3/4 Idler Pulley-Capitol Stampings

$35.48 Usually ship in 1-3 days

In stock

039-6945-01

In stock

039-6945-01 - Deck Idler Assembly

$40.65 Usually ship in 1-3 days

In stock

048-7000-00

048-7000-00 - Obsolete

Usually ship in 1-3 days

Newer version is available. Click to see 048-9000-00
