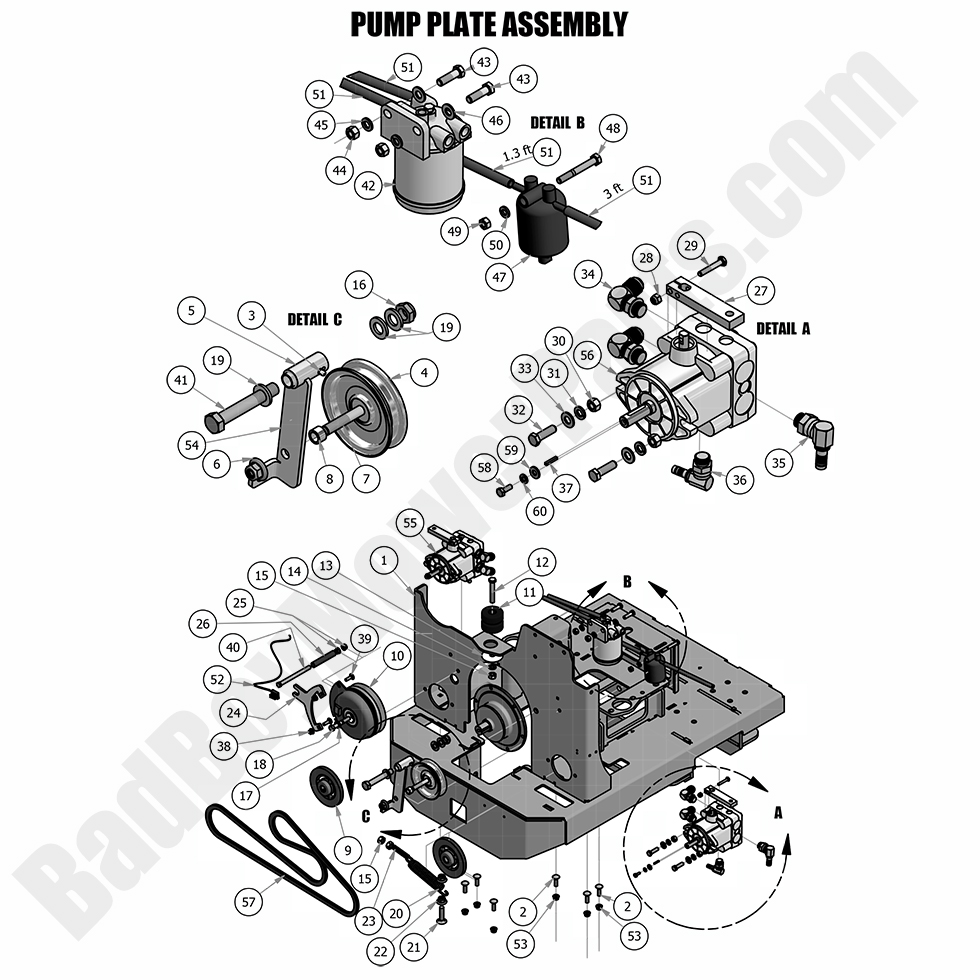

1822 - Bad Boy Mower Parts Lookup > 2018 > Diesel - 1100cc > Pump Plate Assembly
026-8030-00 - Bad Boy Mower Parts
026-8030-00

In stock

026-8030-00 - Pump Plate Diesel

$109.99 Usually ship in 1-3 days

In stock

1
018-5043-00 - Bad Boy Mower Parts
018-5043-00

In stock

018-5043-00 - 3/8-16 - 1-1/4 Carriage Bolt

$2.99 Usually ship in 1-3 days

In stock

2
024-3050-00 - Bad Boy Mower Parts
024-3050-00

In stock

024-3050-00 - 1/4" Drive-in Grease Fitting

$2.99 Usually ship in 1-3 days

In stock

3
033-6001-00 - Bad Boy Mower Parts
033-6001-00

In stock

033-6001-00 - 4 3/4 Idler Pulley

$31.22 Usually ship in 1-3 days

In stock

4
039-5950-00 - Bad Boy Mower Parts
039-5950-00

In stock

039-5950-00 - Pump Idler Bracket 60 Diesel

$32.65 Usually ship in 1-3 days

In stock

5
013-8050-00 - Bad Boy Mower Parts
013-8050-00

In stock

013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$2.99 Usually ship in 1-3 days

In stock

6
018-7016-00 - Bad Boy Mower Parts
018-7016-00

In stock

018-7016-00 - 1/2-13 - 3 GR 5 - Hex Bolts Zinc

$2.99 Usually ship in 1-3 days

In stock

7
025-7036-00 - Bad Boy Mower Parts
025-7036-00

In stock

025-7036-00 - 1/2 Set Collar w/set screw

$4.60 Usually ship in 1-3 days

In stock

8
033-5011-00 - Bad Boy Mower Parts
033-5011-00

In stock

033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models

$35.48 Usually ship in 1-3 days

In stock

9
070-5040-00 - Bad Boy Mower Parts
070-5040-00

In stock

070-5040-00 - Diesel/Vanguard PTO Clutch

$399.00 Usually ship in 1-3 days

In stock

10
032-4000-00 - Bad Boy Mower Parts
032-4000-00

In stock

032-4000-00 - Rubber for Rear Diesel Motor Mount

$76.53 Usually ship in 1-3 days

In stock

11
018-7016-00 - Bad Boy Mower Parts
018-7016-00

In stock

018-7016-00 - 1/2-13 - 3 GR 5 - Hex Bolts Zinc

$2.99 Usually ship in 1-3 days

In stock

12
032-4051-00 - Bad Boy Mower Parts
032-4051-00

In stock

032-4051-00 - Snubbing Washer-032-4050-00

$17.02 Usually ship in 1-3 days

In stock

13
019-5007-00 - Bad Boy Mower Parts
019-5007-00

In stock

019-5007-00 - 1/2 Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

14
013-7018-00 - Bad Boy Mower Parts
013-7018-00

In stock

013-7018-00 - 1/2-13 Hex Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

15
013-5301-00 - Bad Boy Mower Parts
013-5301-00

In stock

013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc

$2.99 Usually ship in 1-3 days

In stock

16
019-8053-00 - Bad Boy Mower Parts
019-8053-00

In stock

019-8053-00 - 7/16 Lockwasher zinc

$3.29 Usually ship in 1-3 days

In stock

17
018-5401-00 - Bad Boy Mower Parts
018-5401-00

In stock

018-5401-00 - 7/16 - 2 3/4 Fine Thread Bolt

$2.99 Usually ship in 1-3 days

In stock

18
019-6017-00 - Bad Boy Mower Parts
019-6017-00

In stock

019-6017-00 -.630 ID - 1.122 OD X.142 THK Flat Washer Nylon

$2.99 Usually ship in 1-3 days

In stock

19
034-2009-00 - Bad Boy Mower Parts
034-2009-00

In stock

034-2009-00 - Deck/Pump Idler Spring

$18.18 Usually ship in 1-3 days

In stock

20
018-1050-00 - Bad Boy Mower Parts
018-1050-00

In stock

018-1050-00 - 1/2 - 2 Carriage Bolt

$2.99 Usually ship in 1-3 days

In stock

21
013-8050-00 - Bad Boy Mower Parts
013-8050-00

In stock

013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$2.99 Usually ship in 1-3 days

In stock

22
018-2004-00 - Bad Boy Mower Parts
018-2004-00

In stock

018-2004-00 - All Thread-Pump Idler Tensioner

$12.94 Usually ship in 1-3 days

In stock

23
057-5910-10 - Bad Boy Mower Parts
057-5910-10

In stock

057-5910-10 - 2010-2020 Diesel PTO Engager Holder

$22.71 Usually ship in 1-3 days

In stock

24
013-5201-00 - Bad Boy Mower Parts
013-5201-00

In stock

013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations

$2.99 Usually ship in 1-3 days

In stock

25
051-8076-00 - Bad Boy Mower Parts
051-8076-00

In stock

051-8076-00 - 3/8 Fuel Line-Priced per Foot

$6.59 Usually ship in 1-3 days

In stock

26
031-5923-00 - Bad Boy Mower Parts
031-5923-00

In stock

031-5923-00 - Pump Arm

$30.07 Usually ship in 1-3 days

In stock

27
013-8073-00 - Bad Boy Mower Parts
013-8073-00

In stock

013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc

$2.99 Usually ship in 1-3 days

In stock

28
018-5005-00 - Bad Boy Mower Parts
018-5005-00

In stock

018-5005-00 - 1/4-20 - 1-1/2 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

29
013-6014-00 - Bad Boy Mower Parts
013-6014-00

In stock

013-6014-00 - 3/8-16 Hex Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

30
019-5037-00 - Bad Boy Mower Parts
019-5037-00

In stock

019-5037-00 - 3/8" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

31
018-6012-00 - Bad Boy Mower Parts
018-6012-00

In stock

018-6012-00 - 3/8 - 1 1/2 Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

32
019-5029-00 - Bad Boy Mower Parts
019-5029-00

In stock

019-5029-00 - 3/8 USS Flat Washer Zinc

$2.99 Usually ship in 1-3 days

In stock

33
024-2060-00 - Bad Boy Mower Parts
024-2060-00

In stock

024-2060-00 - 6801-LL-8-8 Fitting - Diesels

$26.53 Usually ship in 1-3 days

In stock

34
024-5002-00 - Bad Boy Mower Parts
024-5002-00

In stock

024-5002-00 - 90 Degree Fitting, 1/2 - 3/4, 986741

$17.63 Usually ship in 1-3 days

In stock

35
024-5206-00 - Bad Boy Mower Parts
024-5206-00

In stock

024-5206-00 - 90 Degree Fitting, 3/8 - 9/16, 4601-6-6

$12.42 Usually ship in 1-3 days

In stock

36
042-5012-00 - Bad Boy Mower Parts
042-5012-00

042-5012-00 - Obsolete

Usually ship in 1-3 days
Newer version is available. Click to see 042-5013-00
37
013-9002-00 - Bad Boy Mower Parts
013-9002-00

In stock

013-9002-00 - 5/16-18 Hex Flange Nuts Zinc - /Serrations

$2.99 Usually ship in 1-3 days

In stock

38
018-8065-00 - Bad Boy Mower Parts
018-8065-00

In stock

018-8065-00 - 5/16-18 - 1 Carriage Bolt Zinc

$2.99 Usually ship in 1-3 days

In stock

39
018-7055-00 - Bad Boy Mower Parts
018-7055-00

In stock

018-7055-00 - 3/8-16 - 5 Hex Bolt - Grade 5

$2.99 Usually ship in 1-3 days

In stock

40
018-5311-00 - Bad Boy Mower Parts
018-5311-00

In stock

018-5311-00 - 5/8-11 - 4" GR - Hex Bolts Zinc

$4.06 Usually ship in 1-3 days

In stock

41
063-2011-00 - Bad Boy Mower Parts
063-2011-00

In stock

063-2011-00 - CAT Fuel Filter - Big

$29.95 Usually ship in 1-3 days

In stock

42
018-5040-00 - Bad Boy Mower Parts
018-5040-00

In stock

018-5040-00 - 3/8-16 - 1-1/4 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

43
013-6014-00 - Bad Boy Mower Parts
013-6014-00

In stock

013-6014-00 - 3/8-16 Hex Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

44
019-5037-00 - Bad Boy Mower Parts
019-5037-00

In stock

019-5037-00 - 3/8" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

45
019-5029-00 - Bad Boy Mower Parts
019-5029-00

In stock

019-5029-00 - 3/8 USS Flat Washer Zinc

$2.99 Usually ship in 1-3 days

In stock

46
015-0007-00 - Bad Boy Mower Parts
015-0007-00

In stock

015-0007-00 - Caterpillar Fuel Bowl Kit

$273.41 Usually ship in 1-3 days

In stock

47
018-5344-00 - Bad Boy Mower Parts
018-5344-00

In stock

018-5344-00 - 5/16 - 2 1/2 Bolt

$2.99 Usually ship in 1-3 days

In stock

48
013-8043-00 - Bad Boy Mower Parts
013-8043-00

In stock

013-8043-00 - 5/16-18 Hex Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

49
019-8051-00 - Bad Boy Mower Parts
019-8051-00

In stock

019-8051-00 - 5/16" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

50
051-8075-00 - Bad Boy Mower Parts
051-8075-00

In stock

051-8075-00 - 5/16 Fuel Line Hose Priced per Foot

$7.69 Usually ship in 1-3 days

In stock

51
070-2000-00 - bad boy mower clutch pigtail
070-2000-00

In stock

070-2000-00 - Clutch Pigtail

$21.24 Usually ship in 1-3 days

In stock

52
013-5202-00 - Bad Boy Mower Parts
013-5202-00

In stock

013-5202-00 - 3/8 Nylock Flange Nut

$2.99 Usually ship in 1-3 days

In stock

53
039-5946-98 - Bad Boy Mower Parts
039-5946-98

In stock

039-5946-98 - Pump Idler Bracket Assy Diesel

$56.77 Usually ship in 1-3 days

In stock

54
050-5500-00 - Bad Boy Mower Parts
050-5500-00

In stock

050-5500-00 - PR Pumps w/Fan 16cc Left Compact Diesel PR-2KCC-GY1G

$599.99 Usually ship in 1-3 days

In stock

55
050-5501-00 - Bad Boy Mower Parts
050-5501-00

In stock

050-5501-00 - PR Pump w/Fan and Cover Right Compact Diesel PR2HCC-GY1G

$599.99 Usually ship in 1-3 days

In stock

56
041-5048-00 - Bad Boy Mower Parts
041-5048-00

In stock

041-5048-00 - Pump Belt

$60.98 Usually ship in 1-3 days

In stock

57
018-0024-00 - Bad Boy Mower Parts
018-0024-00

In stock

018-0024-00 - M6-1.0 - 16MM HEX BOLT

$2.99 Usually ship in 1-3 days

In stock

58
019-7040-00 - Bad Boy Mower Parts
019-7040-00

In stock

019-7040-00 - 1/4 USS Flat Washer Zinc

$2.99 Usually ship in 1-3 days

In stock

59
019-4008-00 - Bad Boy Mower Parts
019-4008-00

In stock

019-4008-00 - 1/4 Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

60

The pump plate assembly on the 2018 Diesel - 1100cc is responsible for maintaining proper hydraulic pressure and power distribution. If you notice loss of hydraulic power or leaks, it may be time for a replacement. At BadBoyMowerParts.com, we offer a complete inventory of Bad Boy Mower Parts to keep your pump system running at peak efficiency. Our Bad Boy Mower Part diagrams make it easy to find the correct pump plate assembly and related components. With our high-quality Bad Boy Lawn Mower Parts, you can extend the life of your hydraulic system. Shop Bad Boy Parts Online today and take advantage of Free Shipping On Orders Over $100 for added savings.
