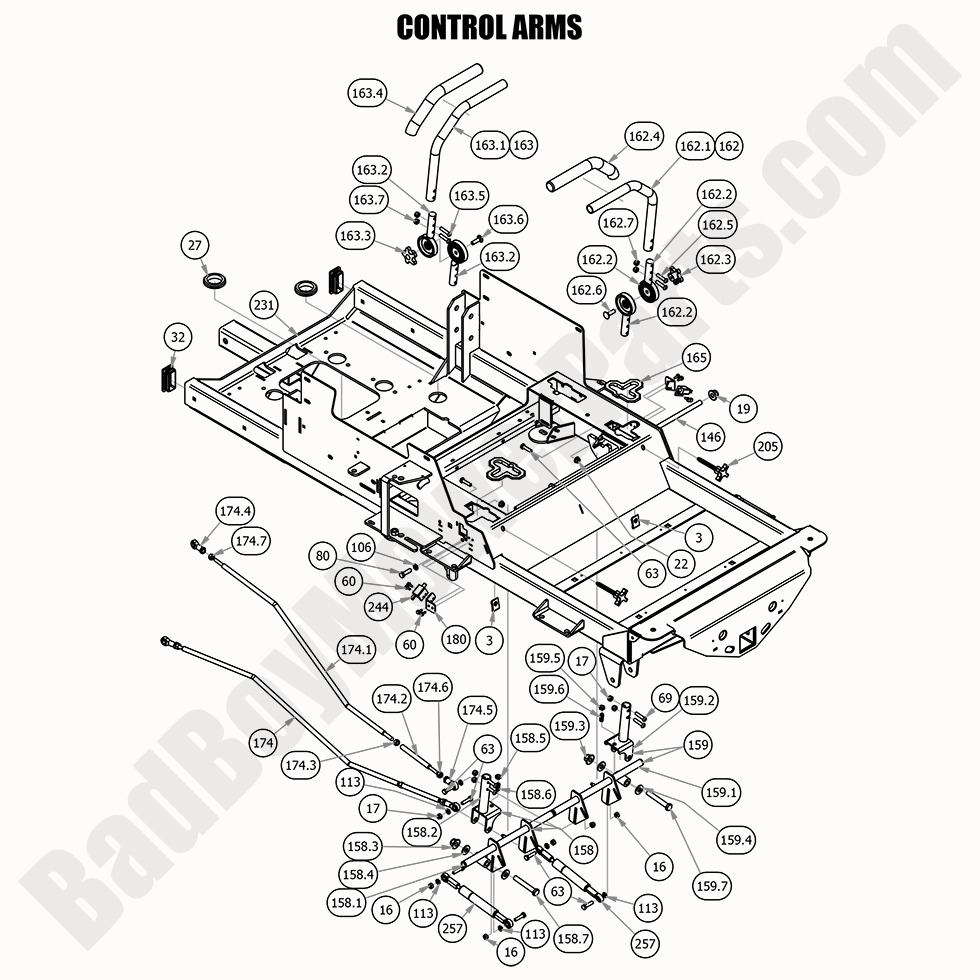

2386 - Bad Boy Mower Parts Lookup > 2020 > Renegade - Diesel > Control Arms

013-0021-00

In stock

013-0021-00 - Extruded Nut 3/8"-16 3/4" Hole Center With Patch

$4.39 Usually ship in 1-3 days

In stock

013-8043-00

In stock

013-8043-00 - 5/16-18 Hex Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

013-8047-00

In stock

013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc

$2.99 Usually ship in 1-3 days

In stock

013-8050-00

In stock

013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$2.99 Usually ship in 1-3 days

In stock

013-9002-00

In stock

013-9002-00 - 5/16-18 Hex Flange Nuts Zinc - /Serrations

$2.99 Usually ship in 1-3 days

In stock

014-2052-00

In stock

014-2052-00 - 2" x.25 Rubber Grommet 2019-2022 Renegade

$12.83 Usually ship in 1-3 days

In stock

014-9003-00

In stock

014-9003-00 - 1 1/2x - Frame Plug

$2.99 Usually ship in 1-3 days

In stock

018-1080-00

In stock

018-1080-00 - 12-24 - 1/2 HWH Bolt - Safety Switch

$2.99 Usually ship in 1-3 days

In stock

018-2006-00

In stock

018-2006-00 - 5/16-18 - 1-1/4 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

018-2020-18

In stock

018-2020-18 - 5/16-18 - 1 3/8" Button Head Torx Drive

$2.99 Usually ship in 1-3 days

In stock

018-5040-00

In stock

018-5040-00 - 3/8-16 - 1-1/4 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

019-5037-00

In stock

019-5037-00 - 3/8" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

106

019-8051-00

In stock

019-8051-00 - 5/16" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

113

028-0051-00

In stock

028-0051-00 - Steering Actuator Rod 2019-2022 Rebel, Renegade - Rogue

$23.41 Usually ship in 1-3 days

In stock

146

031-0030-19

In stock

031-0030-19 - R Series Right Arm Rod Assembly 2019-2022 Rebel, Renegade - Rogue

$85.17 Usually ship in 1-3 days

In stock

158

031-0030-00

In stock

031-0030-00 - Bad Boy Max Right Drive Arm Actuator

$46.78 Usually ship in 1-3 days

In stock

158.1

031-0014-00

In stock

031-0014-00 - Drive Arm Pivot

$24.92 Usually ship in 1-3 days

In stock

158.2

013-8050-00

In stock

013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$2.99 Usually ship in 1-3 days

In stock

158.3

019-8054-00

In stock

019-8054-00 - .505 ID - 1 OD X.128 THK Flat Washer Nylon

$2.99 Usually ship in 1-3 days

In stock

158.4

013-0017-00

In stock

013-0017-00 - 3/8-16 Half Jam Nut

$2.99 Usually ship in 1-3 days

In stock

158.5

018-0063-00

In stock

018-0063-00 - 3/8-16 - 1 SOCKET SET SCREW CUP POINT

$2.99 Usually ship in 1-3 days

In stock

158.6

018-0050-00

In stock

018-0050-00 - 1/2-13 - 3.25 Hex Bolt-Grade 5

$2.99 Usually ship in 1-3 days

In stock

158.7

031-0031-19

In stock

031-0031-19 - R Series Left Arm Rod Assembly

$85.17 Usually ship in 1-3 days

In stock

159.0

031-0031-00

In stock

031-0031-00 - Left Drive Arm Actuator 2019-2022 Rebel, Renegade - Rogue

$46.78 Usually ship in 1-3 days

In stock

159.1

031-0014-00

In stock

031-0014-00 - Drive Arm Pivot

$24.92 Usually ship in 1-3 days

In stock

159.2

013-8050-00

In stock

013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$2.99 Usually ship in 1-3 days

In stock

159.3

019-8054-00

In stock

019-8054-00 - .505 ID - 1 OD X.128 THK Flat Washer Nylon

$2.99 Usually ship in 1-3 days

In stock

159.4

013-0017-00

In stock

013-0017-00 - 3/8-16 Half Jam Nut

$2.99 Usually ship in 1-3 days

In stock

159.5

018-0063-00

In stock

018-0063-00 - 3/8-16 - 1 SOCKET SET SCREW CUP POINT

$2.99 Usually ship in 1-3 days

In stock

159.6

018-0050-00

In stock

018-0050-00 - 1/2-13 - 3.25 Hex Bolt-Grade 5

$2.99 Usually ship in 1-3 days

In stock

159.7

031-9005-70

In stock

031-9005-70 - Left Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade - Rogue

$132.68 Usually ship in 1-3 days

In stock

162.0

031-9006-00

In stock

031-9006-00 - Steering Arm Tube

$42.79 Usually ship in 1-3 days

In stock

162.1

031-9005-00

In stock

031-9005-00 - Upper/Lower Steering Arm Casting 2019-2022 Rebel, Renegade - Rogue

$28.39 Usually ship in 1-3 days

In stock

162.2

045-5000-00

In stock

045-5000-00 - Knob - Adjustable Steering Arm

$5.49 Usually ship in 1-3 days

In stock

162.3

069-4010-00

In stock

069-4010-00 - Black Steering Grip

$8.12 Usually ship in 1-3 days

In stock

162.4

018-2020-18

In stock

018-2020-18 - 5/16-18 - 1 3/8" Button Head Torx Drive

$2.99 Usually ship in 1-3 days

In stock

162.5

018-5043-00

In stock

018-5043-00 - 3/8-16 - 1-1/4 Carriage Bolt

$2.99 Usually ship in 1-3 days

In stock

162.6

013-8047-00

In stock

013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc

$2.99 Usually ship in 1-3 days

In stock

162.7

031-9055-70

In stock

031-9055-70 - Right Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade - Rogue

$115.31 Usually ship in 1-3 days

In stock

163.0

031-9006-00

In stock

031-9006-00 - Steering Arm Tube

$42.79 Usually ship in 1-3 days

In stock

163.1

045-5000-00

In stock

045-5000-00 - Knob - Adjustable Steering Arm

$5.49 Usually ship in 1-3 days

In stock

163.2

045-5000-00

In stock

045-5000-00 - Knob - Adjustable Steering Arm

$5.49 Usually ship in 1-3 days

In stock

163.3

069-4010-00

In stock

069-4010-00 - Black Steering Grip

$8.12 Usually ship in 1-3 days

In stock

163.4

018-2020-18

In stock

018-2020-18 - 5/16-18 - 1 3/8" Button Head Torx Drive

$2.99 Usually ship in 1-3 days

In stock

163.5

018-5043-00

In stock

018-5043-00 - 3/8-16 - 1-1/4 Carriage Bolt

$2.99 Usually ship in 1-3 days

In stock

163.6

013-8047-00

In stock

013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc

$2.99 Usually ship in 1-3 days

In stock

163.7

032-0002-00

In stock

032-0002-00 - Snap-In Bushing 2019-2022 Rebel, Renegade - Rogue

$15.55 Usually ship in 1-3 days

In stock

165

035-0005-00

In stock

035-0005-00 - Push Rod Assembly 2019-2025 Renegade

$46.84 Usually ship in 1-3 days

In stock

174.0

086-0017-00 - 2019 Deck Actuator Adaptor

035-0005-01

035-0005-01 - Obsolete

Usually ship in 1-3 days

Newer version is available. Click to see 035-0005-00

174.1

035-0006-00

In stock

035-0006-00 - 2019-2022 Renegade/Revolt Horizontal Push Rod Adjuster

$35.30 Usually ship in 1-3 days

In stock

174.2

013-6051-00

In stock

013-6051-00 - 3/8-24 Hex Jam Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

174.3

048-3003-00

In stock

048-3003-00 - Spherical Rod End - RH Thread - Rogue and Renegade

$21.28 Usually ship in 1-3 days

In stock

174.4

048-3002-00

In stock

048-3002-00 - Spherical Rod End - LH Thread - Rebel,Rogue,Renegade

$32.09 Usually ship in 1-3 days

In stock

174.5

013-6050-00

In stock

013-6050-00 - 5/16 LH Nut fits the 2019-2022 Outlaw Push Rods

$4.39 Usually ship in 1-3 days

In stock

174.6

013-6049-00

In stock

013-6049-00 - 5/16 RH Nut fits the 2019-2022 Outlaw Push Rods

$4.39 Usually ship in 1-3 days

In stock

174.7

039-2160-00

In stock

039-2160-00 - Arm Switch Bracket

$13.90 Usually ship in 1-3 days

In stock

180

057-5800-00

In stock

057-5800-00 - Speed Limiting Knob 3/8-16X 3"

$6.41 Usually ship in 1-3 days

In stock

205

070-5374-19

In stock

070-5374-19 - Horizontal Diesel Renegade Frame

$1,299.99 Usually ship in 1-3 days

In stock

231

077-8073-00

In stock

077-8073-00 - Safety Switch

$10.99 Usually ship in 1-3 days

In stock

244

087-0002-00

In stock

087-0002-00 - Steering Rod Damper With Spherical Rod Ends For Renegade/Rogue

$62.46 Usually ship in 1-3 days

In stock

257

The 2020 Renegade - Diesel Control Arms play a vital role in handling and maneuverability, ensuring smooth operation across rough terrain. Over time, control arms can wear out, affecting steering performance and stability. When replacement is necessary, trust Bad Boy Mower Parts for high-quality components that restore precision. At BadBoyMowerParts.com, we stock a full range of Bad Boy Lawn Mower Parts, including durable control arms designed for heavy-duty use. To find the exact fit for your mower, our Bad Boy Mower Part diagrams help simplify the selection and installation process. Ordering through Bad Boy Parts Online ensures you receive genuine parts built for longevity and peak performance. Plus, enjoy Free Shipping On Orders Over $100, making repairs more cost-effective. Keep your 2020 Renegade - Diesel handling like new with premium replacement control arms and other essential mower components from our trusted inventory.
