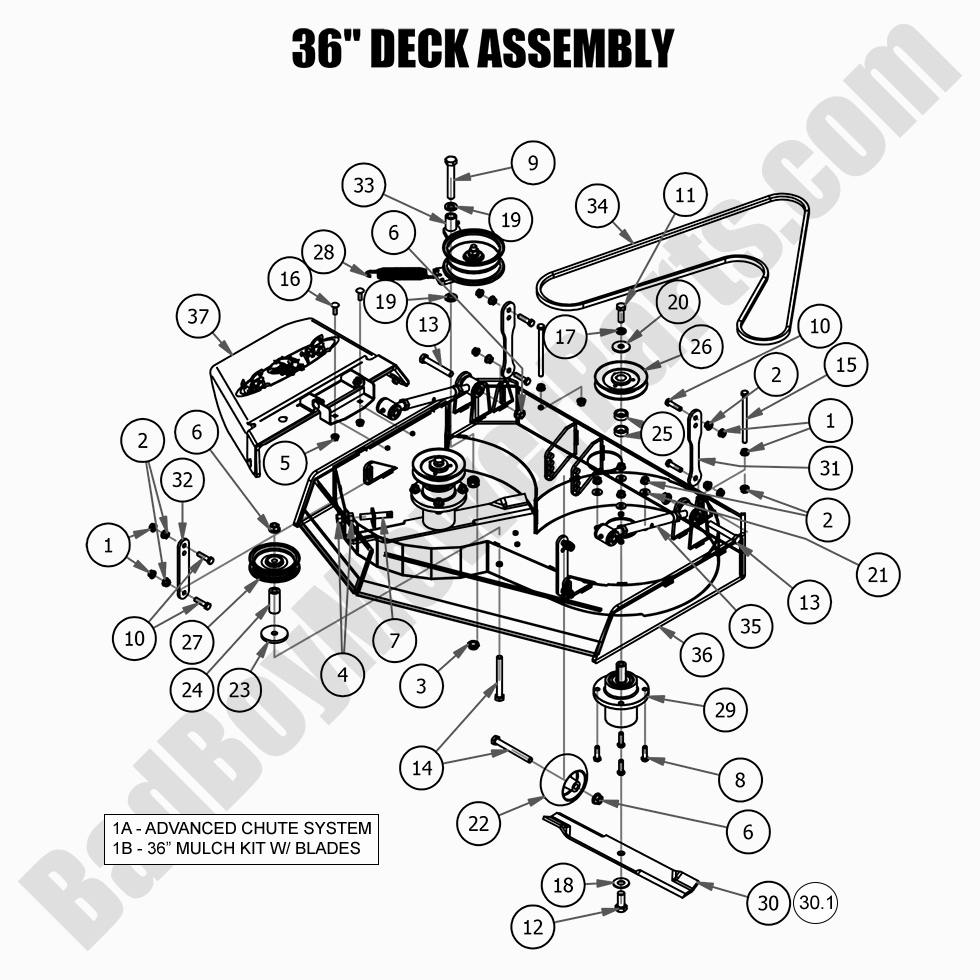

$2636 - Bad Boy Mower Parts Lookup > 2021 > Revolt > 36\" Deck Assembly$

013-5201-00

In stock

013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations

$2.99 Usually ship in 1-3 days

In stock

088-6036-00

In stock

088-6036-00 - Advanced Chute System for the Revolt with 36" Decks

$249.00 Usually ship in 1-3 days

In stock

210-0136-50

In stock

210-0136-50 - Mulch Kit w/ Blades

$318.45 Usually ship in 1-3 days

In stock

013-5202-00

In stock

013-5202-00 - 3/8 Nylock Flange Nut

$2.99 Usually ship in 1-3 days

In stock

013-5301-00

In stock

013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc

$2.99 Usually ship in 1-3 days

In stock

013-7018-00

In stock

013-7018-00 - 1/2-13 Hex Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

013-8049-00

013-8049-00 – 5/16-18 Nylon Flange Nut

$2.99 Usually ship in 1-3 days

013-8050-00

In stock

013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$2.99 Usually ship in 1-3 days

In stock

018-2004-50

In stock

018-2004-50 - All Thread

$12.94 Usually ship in 1-3 days

In stock

018-5040-00

In stock

018-5040-00 - 3/8-16 - 1-1/4 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

018-5311-00

In stock

018-5311-00 - 5/8-11 - 4" GR - Hex Bolts Zinc

$4.06 Usually ship in 1-3 days

In stock

018-6012-00

In stock

018-6012-00 - 3/8 - 1 1/2 Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

018-6019-00

In stock

018-6019-00 - 1/2-20 - 1-1/2 GR - Bolt Zinc, Fine Thread Bolt

$2.99 Usually ship in 1-3 days

In stock

018-6020-00

In stock

018-6020-00 - 5/8-18 - 1-1/2 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

018-6054-00

In stock

018-6054-00 - 1/2-13 - 3-1/2 GR - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

018-7050-00

In stock

018-7050-00 - 1/2-13 - 4-1/2 GR 5 - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

018-7060-00

In stock

018-7060-00 - 3/8-16 - 5 1/2 Hex Bolt - Grade 5

$2.99 Usually ship in 1-3 days

In stock

018-8065-00

In stock

018-8065-00 - 5/16-18 - 1 Carriage Bolt Zinc

$2.99 Usually ship in 1-3 days

In stock

019-5007-00

In stock

019-5007-00 - 1/2 Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

019-5038-00

In stock

019-5038-00 - 5/8 Flat Washer

$2.99 Usually ship in 1-3 days

In stock

019-6017-00

In stock

019-6017-00 -.630 ID - 1.122 OD X.142 THK Flat Washer Nylon

$2.99 Usually ship in 1-3 days

In stock

019-6020-00

In stock

019-6020-00 - 1/2 Belleville Washer #K2000-G -150

$5.16 Usually ship in 1-3 days

In stock

019-8044-00

In stock

019-8044-00 - 5/16 USS Flat Washer Zinc

$2.99 Usually ship in 1-3 days

In stock

022-1001-00

In stock

022-1001-00 - Deck Wheel

$17.11 Usually ship in 1-3 days

In stock

025-0025-00

In stock

025-0025-00 - 2019-2024 Round Spacer

$7.28 Usually ship in 1-3 days

In stock

025-0032-00

In stock

025-0032-00 - 2019-2022 Revolt Stationary Idler Spacer

$8.46 Usually ship in 1-3 days

In stock

025-0060-00

In stock

025-0060-00 - 36" Stand On Deck Spindle Spacer

$6.59 Usually ship in 1-3 days

In stock

033-4820-00

In stock

033-4820-00 - Deck Spindle Pulley - 42"/48" MZ/MZ Magnum, 34"/36" Revolt/Revolt SD

$31.22 Usually ship in 1-3 days

In stock

033-7026-00

In stock

033-7026-00 - 5" - Idler Pulley with 1/2" Bore

$35.48 Usually ship in 1-3 days

In stock

034-2009-00

In stock

034-2009-00 - Deck/Pump Idler Spring

$18.18 Usually ship in 1-3 days

In stock

037-2002-00

In stock

037-2002-00 - Revolt SD 34" and 42" Decks, Revolt 36" Deck Spindle

$212.29 Usually ship in 1-3 days

In stock

038-3010-00

In stock

038-3010-00 - 36 - 52" High Lift Fusion Blade

$22.99 * Usually ship in 1-3 days

In stock

038-5203-00

In stock

038-5203-00 - 36" - 52" Gator Mulching Blade

$22.99 Usually ship in 1-3 days

In stock

30.1

038-1015-00

In stock

038-1015-00 - 36" - 52" Fusion Blade - 6-Pack (038-3010-00)

$123.99 * Usually ship in 1-3 days

In stock

30.2

038-1040-00

In stock

038-1040-00 - 36" - 52" Fusion Gator Mulching Blades - 6-Pack (038-5203-00)

$119.99 Usually ship in 1-3 days

In stock

30.3

039-2128-00

In stock

039-2128-00 - Stand On Deck Hanger Rear

$14.19 Usually ship in 1-3 days

In stock

039-2129-00

039-2129-00 - Obsolete

Usually ship in 1-3 days

Newer version is available. Click to see 039-2129-23

039-6952-98

In stock

039-6952-98 - 36" Revolt Deck Idler Assembly

$70.61 Usually ship in 1-3 days

In stock

041-8054-00

In stock

041-8054-00 - Deck Belt 2020-Newer Revolt and Walk Behind

$80.24 Usually ship in 1-3 days

In stock

048-6000-00

In stock

048-6000-00 - Maverick/Compact Outlaw Toplink

$80.24 Usually ship in 1-3 days

In stock

086-0017-00 - 2019 Deck Actuator Adaptor

060-1136-20

In stock

060-1136-20 - 2020 Stand On 36" Sloped Deck

$599.99 Usually ship in 1-3 days

In stock

210-6016-98

In stock

210-6016-98 - 36" Stand On Chute Assembly

$145.95 Usually ship in 1-3 days

In stock

The 2021 Revolt 36" Deck Assembly is designed for precision cutting and long-lasting durability. If your mower deck needs repairs or replacement parts, BadBoyMowerParts.com offers a complete selection of Bad Boy Mower Parts. We provide detailed Bad Boy Mower Part diagrams to guide you in selecting the correct parts for your deck. With our premium Bad Boy Lawn Mower Parts, you can expect reliable performance and easy maintenance. Ordering Bad Boy Parts Online is simple, and you’ll receive Free Shipping On Orders Over $100, making it easy to keep your mower in top shape.
