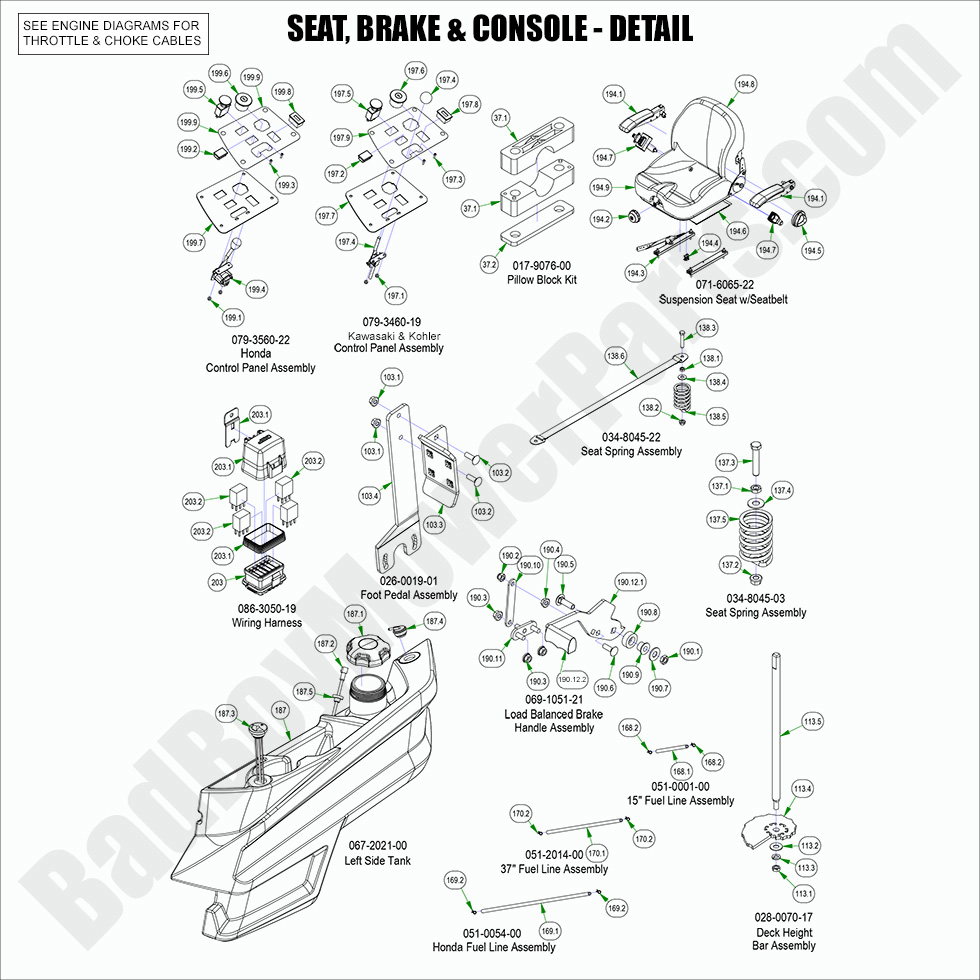

2796 - Bad Boy Mower Parts Lookup > 2022 > Maverick HD > Seat, Brake & Console - Detail

017-9076-00

In stock

017-9076-00 - Pillow Block Assembly

$23.41 Usually ship in 1-3 days

In stock

37.0

017-9077-00

In stock

017-9077-00 - Pillow Block-Male

$21.28 Usually ship in 1-3 days

In stock

37.1

017-9079-00

In stock

017-9079-00 - Pillow Block-Metal Plate

$21.28 Usually ship in 1-3 days

In stock

37.2

026-0019-01

In stock

026-0019-01 - Foot Pedal Assembly

$93.69 Usually ship in 1-3 days

In stock

103.0

013-8049-00

013-8049-00 – 5/16-18 Nylon Flange Nut

$2.99 Usually ship in 1-3 days

103.1

018-8065-00

In stock

018-8065-00 - 5/16-18 - 1 Carriage Bolt Zinc

$2.99 Usually ship in 1-3 days

In stock

103.2

026-0019-00

In stock

026-0019-00 - Shallow Foot Pedal

$31.22 Usually ship in 1-3 days

In stock

103.3

031-0500-00

In stock

031-0500-00 - Deck Pedal Lever

$31.22 Usually ship in 1-3 days

In stock

103.4

028-0070-17

In stock

028-0070-17 - Deck Height Bar Assy.

$29.66 Usually ship in 1-3 days

In stock

113.0

013-6051-00

In stock

013-6051-00 - 3/8-24 Hex Jam Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

113.1

019-5029-00

In stock

019-5029-00 - 3/8 USS Flat Washer Zinc

$2.99 Usually ship in 1-3 days

In stock

113.2

019-5037-00

In stock

019-5037-00 - 3/8" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

113.3

026-1100-00

In stock

026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster

$15.55 Usually ship in 1-3 days

In stock

113.4

028-0014-00

In stock

028-0014-00 - Deck Height Dial Rod

$31.17 Usually ship in 1-3 days

In stock

113.5

034-8045-03

In stock

034-8045-03 - Seat Spring Assembly

$32.09 Usually ship in 1-3 days

In stock

137.0

013-0017-00

In stock

013-0017-00 - 3/8-16 Half Jam Nut

$2.99 Usually ship in 1-3 days

In stock

137.1

013-5201-00

In stock

013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations

$2.99 Usually ship in 1-3 days

In stock

137.2

018-3000-00

In stock

018-3000-00 - 3/8-16 - 2 GR - Hex Bolts Zinc

$2.99 Usually ship in 1-3 days

In stock

137.3

019-5029-00

In stock

019-5029-00 - 3/8 USS Flat Washer Zinc

$2.99 Usually ship in 1-3 days

In stock

137.4

034-8045-00

In stock

034-8045-00 - Seat Spring

$20.49 Usually ship in 1-3 days

In stock

137.5

034-8045-22

In stock

034-8045-22 - Seat Spring Assembly with Strap

$32.09 Usually ship in 1-3 days

In stock

138.0

013-0017-00

In stock

013-0017-00 - 3/8-16 Half Jam Nut

$2.99 Usually ship in 1-3 days

In stock

138.1

013-5201-00

In stock

013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations

$2.99 Usually ship in 1-3 days

In stock

138.2

018-3000-00

In stock

018-3000-00 - 3/8-16 - 2 GR - Hex Bolts Zinc

$2.99 Usually ship in 1-3 days

In stock

138.3

019-5029-00

In stock

019-5029-00 - 3/8 USS Flat Washer Zinc

$2.99 Usually ship in 1-3 days

In stock

138.4

034-8045-00

In stock

034-8045-00 - Seat Spring

$20.49 Usually ship in 1-3 days

In stock

138.5

051-0001-00

In stock

051-0001-00 - Fuel Line-15"

$40.53 Usually ship in 1-3 days

In stock

168.0

051-8067-00

In stock

051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)

$6.41 Usually ship in 1-3 days

In stock

168.1

072-8069-00

In stock

072-8069-00 - 1/4 Fuel Line Clamp

$2.99 Usually ship in 1-3 days

In stock

168.2

051-0054-00

051-0054-00 - Obsolete

Usually ship in 1-3 days

Newer version is available. Click to see 051-2014-00

169.0

051-8067-00

In stock

051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)

$6.41 Usually ship in 1-3 days

In stock

169.1

072-8069-00

In stock

072-8069-00 - 1/4 Fuel Line Clamp

$2.99 Usually ship in 1-3 days

In stock

169.2

051-2014-00

In stock

051-2014-00 - 37" Fuel Line Assembly

$40.53 Usually ship in 1-3 days

In stock

170.0

051-2014-01

In stock

051-2014-01 - 37" 1/4 Fuel Line (No Clamp)

$19.25 Usually ship in 1-3 days

In stock

170.1

072-8069-00

In stock

072-8069-00 - 1/4 Fuel Line Clamp

$2.99 Usually ship in 1-3 days

In stock

170.2

086-0017-00 - 2019 Deck Actuator Adaptor

067-2021-00

In stock

067-2021-00 - 2021-2024 Maverick Left Side Tank

$349.99 Usually ship in 1-3 days

In stock

187

066-8083-00

In stock

066-8083-00 - 3.5" Tethered Fuel Cap

$23.53 Usually ship in 1-3 days

In stock

187.1

067-0011-00

In stock

067-0011-00 - Fuel Line Pickup Tube

$23.41 Usually ship in 1-3 days

In stock

187.2

067-4090-00

In stock

067-4090-00 - Fuel Gauge

$46.00 Usually ship in 1-3 days

In stock

187.3

067-6070-00

In stock

067-6070-00 - Rollover Valve and Grommet New

$24.60 Usually ship in 1-3 days

In stock

187.4

067-6080-00

In stock

067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube

$8.01 Usually ship in 1-3 days

In stock

187.5

069-1051-21

In stock

069-1051-21 - Load Balanced Brake Handle Assembly

$70.97 Usually ship in 1-3 days

In stock

190.0

013-0012-00

In stock

013-0012-00 - 3/8-16 Centerlock Half Nut

$3.29 Usually ship in 1-3 days

In stock

190.1

013-8042-00

In stock

013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)

$2.99 Usually ship in 1-3 days

In stock

190.2

013-8049-00

013-8049-00 – 5/16-18 Nylon Flange Nut

$2.99 Usually ship in 1-3 days

190.3

013-9002-00

In stock

013-9002-00 - 5/16-18 Hex Flange Nuts Zinc - /Serrations

$2.99 Usually ship in 1-3 days

In stock

190.4

018-5043-00

In stock

018-5043-00 - 3/8-16 - 1-1/4 Carriage Bolt

$2.99 Usually ship in 1-3 days

In stock

190.5

018-8065-00

In stock

018-8065-00 - 5/16-18 - 1 Carriage Bolt Zinc

$2.99 Usually ship in 1-3 days

In stock

190.6

019-5029-00

In stock

019-5029-00 - 3/8 USS Flat Washer Zinc

$2.99 Usually ship in 1-3 days

In stock

190.7

025-0001-00

In stock

025-0001-00 - Brake Lever Spacer

$8.01 Usually ship in 1-3 days

In stock

190.8

032-5053-00

In stock

032-5053-00 - Bronze Bushing SF-1220-8 2013 - UP CZT/ZT Brake Bushing

$2.99 Usually ship in 1-3 days

In stock

190.9

039-0170-00

In stock

039-0170-00 - Brake Cable Extension Plate

$10.99 Usually ship in 1-3 days

In stock

190.10

039-0171-00

In stock

039-0171-00 - Brake Load Balancer Weldment

$10.99 Usually ship in 1-3 days

In stock

190.11

069-3000-00

In stock

069-3000-00 - Switch Relocation Brake Handle

Usually ship in 1-3 days

In stock

190.12.1

069-3010-00

In stock

069-3010-00 - Brake Handle Rubber

$18.45 Usually ship in 1-3 days

In stock

190.12.2

071-6065-22

071-6065-22 - Obsolete

Usually ship in 1-3 days

194.0

071-6065-04

In stock

071-6065-04 - Arm Kit for 071-6065-00

$136.99 Usually ship in 1-3 days

In stock

194.1

071-6065-05

In stock

071-6065-05 - Weight Adjustment Knob for 071-6065-00

$32.09 Usually ship in 1-3 days

In stock

194.2

071-6065-06

In stock

071-6065-06 - Tracks for 071-6065-00

$99.37 Usually ship in 1-3 days

In stock

194.3

071-6065-07

In stock

071-6065-07 - Seat Switch for 071-6065-00

$21.28 Usually ship in 1-3 days

In stock

194.4

071-6065-10

In stock

071-6065-10 - Recliner Adjustment Knob

$32.09 Usually ship in 1-3 days

In stock

194.5

071-6065-13

In stock

071-6065-13 Bellows w/Hardware for 071-6065-22

$64.19 Usually ship in 1-3 days

In stock

194.6

071-6065-14

071-6065-14 - Obsolete

Usually ship in 1-3 days

Newer version is available. Click to see 071-6063-00

194.7

071-6065-15

In stock

071-6065-15 Back Cover for I3M - Recl - Logos for 071-6065-22

$199.99 Usually ship in 1-3 days

In stock

194.8

071-6065-16

In stock

071-6065-16 Cushion Cover Kit for I3M - Logo for 071-6065-22

$153.99 Usually ship in 1-3 days

In stock

194.9

079-3460-19

In stock

079-3460-19 - 2019-2022 ZT/Maverick Control Panel Assy, Also Fits 2019-2021 Compact Outlaw, and 2022 MZ/MZ Magnum

$144.63 Usually ship in 1-3 days

In stock

197.0

013-5019-00

In stock

013-5019-00 - 10-24 Nylon Insert Locknut Zinc

$2.99 Usually ship in 1-3 days

In stock

197.1

018-1040-00

In stock

018-1040-00 - Light Plug

$2.99 Usually ship in 1-3 days

In stock

197.2

018-5200-00

In stock

018-5200-00 - 10-24 - 5/8 BS C/S 18-8 SS

$2.99 Usually ship in 1-3 days

In stock

197.3

056-8058-00

In stock

056-8058-00 - PTO Engager-Switch for Blades

$34.29 Usually ship in 1-3 days

In stock

197.5

077-8076-00

In stock

077-8076-00 - 3-Position Ignition Switch (key not included)

$21.39 Usually ship in 1-3 days

In stock

197.6

079-3460-00

In stock

079-3460-00 - 2014-2022 Control Panel

$23.53 Usually ship in 1-3 days

In stock

197.7

083-4013-00

In stock

083-4013-00 - Tachometer-N211-0100-1003

$74.89 Usually ship in 1-3 days

In stock

197.8

091-0338-22

In stock

091-0338-22 - 2022 Control Panel Decal

$17.11 Usually ship in 1-3 days

In stock

197.9

013-5019-00

In stock

013-5019-00 - 10-24 Nylon Insert Locknut Zinc

$2.99 Usually ship in 1-3 days

In stock

199.1

018-1040-00

In stock

018-1040-00 - Light Plug

$2.99 Usually ship in 1-3 days

In stock

199.2

018-5200-00

In stock

018-5200-00 - 10-24 - 5/8 BS C/S 18-8 SS

$2.99 Usually ship in 1-3 days

In stock

199.3

056-8058-00

In stock

056-8058-00 - PTO Engager-Switch for Blades

$34.29 Usually ship in 1-3 days

In stock

199.5

077-8076-00

In stock

077-8076-00 - 3-Position Ignition Switch (key not included)

$21.39 Usually ship in 1-3 days

In stock

199.6

079-3461-00

In stock

079-3461-00 - Control Panel--Orange

$23.53 Usually ship in 1-3 days

In stock

199.7

083-4013-00

In stock

083-4013-00 - Tachometer-N211-0100-1003

$74.89 Usually ship in 1-3 days

In stock

199.8

091-4072-00

In stock

091-4072-00 - Control Panel Decal

$9.89 Usually ship in 1-3 days

In stock

199.9

086-3050-19

086-3050-19 - Obsolete

Usually ship in 1-3 days

Newer version is available. Click to see 086-3600-00

203.0

086-1202-01

In stock

086-1202-01 - Relay Cap Kit

$18.45 Usually ship in 1-3 days

In stock

203.1

086-1202-19

In stock

086-1202-19 - Relay Terminal

$24.97 Usually ship in 1-3 days

In stock

203.2

The 2022 Maverick HD Seat, Brake & Console - Detail are critical for comfort and control, ensuring that you have a smooth and efficient mowing experience. If you're in need of replacement parts for these components, BadBoyMowerParts.com has an extensive selection of Bad Boy Mower Parts designed specifically for your 2022 Maverick HD. Whether it’s a new seat, a replacement brake assembly, or a console part, we carry Bad Boy Lawn Mower Parts that guarantee durability and fit. Our Bad Boy Mower Part diagrams offer a detailed guide to help you easily identify the correct components. With Bad Boy Parts Online, ordering is straightforward, and we’ll deliver the parts directly to your door. Plus, enjoy Free Shipping On Orders Over $100 to help you save on all your parts purchases. Keep your mower in top condition by shopping at BadBoyMowerParts.com today.
