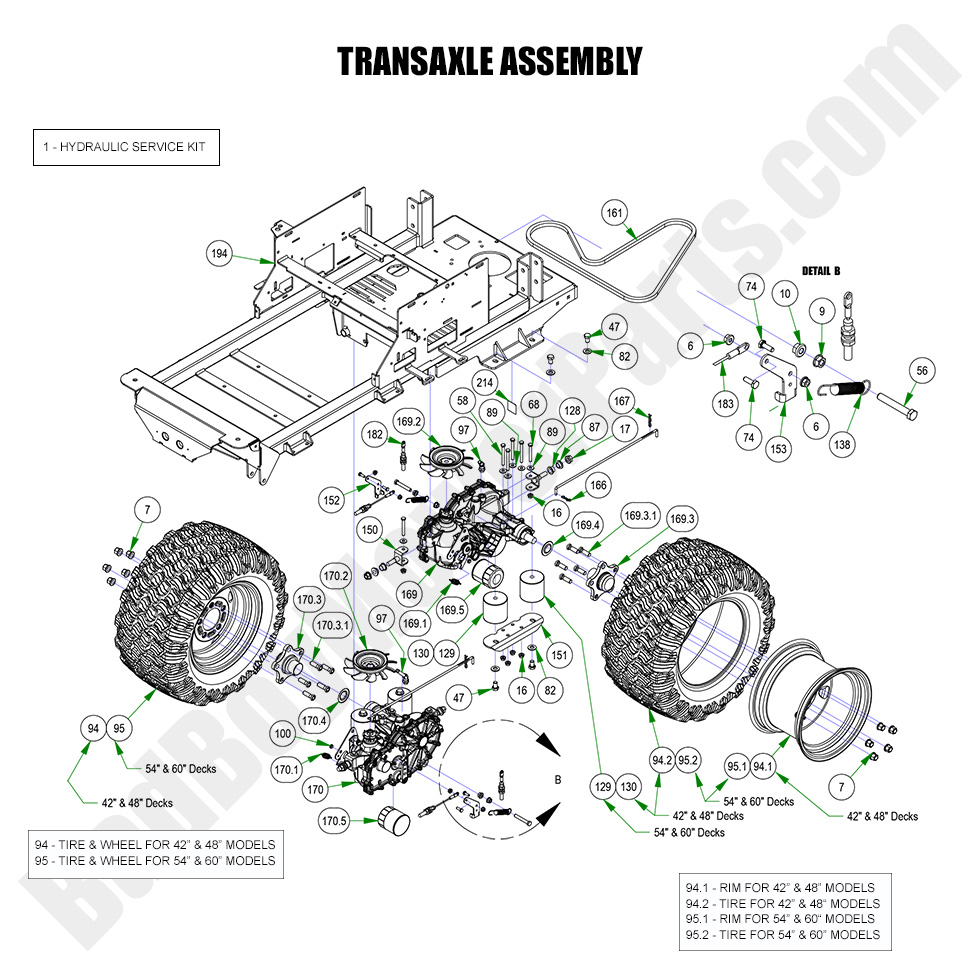

3136 - Bad Boy Mower Parts Lookup > 2023 > Maverick HD > Transaxle Assembly
085-4051-00 – Hydro Service Package for 2020 and Older Models with Expansion Tanks – ZT2800, ZT3100, ZT3200, and all ZT3400
-11%
085-4051-00

In stock

085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400

Original price was: $133.14.Current price is: $118.99.
-11%
Usually ship in 1-3 days

In stock

1
013-2050-00 - Bad Boy Mower Parts
013-2050-00

In stock

013-2050-00 - 1/4-20 Nylon Insert Flange Nut

$2.99 Usually ship in 1-3 days

In stock

6
013-3000-00 - Bad Boy Mower Parts
013-3000-00

In stock

013-3000-00 - Acorn Lug Nut

$3.29 Usually ship in 1-3 days

In stock

7
013-5201-00 - Bad Boy Mower Parts
013-5201-00

In stock

013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations

$2.99 Usually ship in 1-3 days

In stock

9
013-5202-00 - Bad Boy Mower Parts
013-5202-00

In stock

013-5202-00 - 3/8 Nylock Flange Nut

$2.99 Usually ship in 1-3 days

In stock

10
013-8049-00 - 5/16-18 Nylon Flange Nut
013-8049-00

013-8049-00 – 5/16-18 Nylon Flange Nut

$2.99 Usually ship in 1-3 days
16
013-8050-00 - Bad Boy Mower Parts
013-8050-00

In stock

013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$2.99 Usually ship in 1-3 days

In stock

17
018-1055-00 - Bad Boy Mower Parts
018-1055-00

In stock

018-1055-00 - 1/2 - 3/4 Bolt

$2.99 Usually ship in 1-3 days

In stock

47
018-2071-00 - Bad Boy Mower Parts
018-2071-00

In stock

018-2071-00 - 3/8 - 2 1/2 Hex Tap Bolt - Full - Thread - ACS

$2.99 Usually ship in 1-3 days

In stock

56
018-4701-00 - Bad Boy Mower Parts
018-4701-00

In stock

018-4701-00 - 5/16-18 - 3 GR - Hex Bolt Zinc

$2.99 Usually ship in 1-3 days

In stock

58
018-5344-00 - Bad Boy Mower Parts
018-5344-00

In stock

018-5344-00 - 5/16 - 2 1/2 Bolt

$2.99 Usually ship in 1-3 days

In stock

68
018-8052-00 - Bad Boy Mower Parts
018-8052-00

In stock

018-8052-00 - 1/4-20 - 3/4 GR 5 - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

74
019-5702-00 - Bad Boy Mower Parts
019-5702-00

In stock

019-5702-00 - 1/2 SAE Flat Washer GR 8

$2.99 Usually ship in 1-3 days

In stock

82
019-8027-00 - Bad Boy Mower Parts
019-8027-00

In stock

019-8027-00 -.515 ID Plastic Shoulder Washer

$2.99 Usually ship in 1-3 days

In stock

87
019-8044-00 - Bad Boy Mower Parts
019-8044-00

In stock

019-8044-00 - 5/16 USS Flat Washer Zinc

$2.99 Usually ship in 1-3 days

In stock

89
022-4040-00 - Bad Boy Mower Parts
022-4040-00

In stock

022-4040-00 - 23x9-12 Reaper Turf

$329.99 Usually ship in 1-3 days

In stock

94
022-3011-00 - Bad Boy Mower Parts
022-3011-00

In stock

022-3011-00 - 12x7" Black Wheel-48" EZT Only

$109.99 Usually ship in 1-3 days

In stock

94.1
022-4035-00 - Bad Boy Mower Parts
022-4035-00

In stock

022-4035-00 - 23x9 - 12 Reaper Turf Tire Only

$201.99 Usually ship in 1-3 days

In stock

94.2
022-4200-00 - Bad Boy Mower Parts
022-4200-00

In stock

022-4200-00 - 23x11-12 Reaper Tire/Wheel Assembly

$320.99 Usually ship in 1-3 days

In stock

95
022-4070-00 - Bad Boy Mower Parts
022-4070-00

In stock

022-4070-00 - Black Wheel 12x8.5"

$141.99 Usually ship in 1-3 days

In stock

95.1
022-4195-00 - Bad Boy Mower Parts
022-4195-00

In stock

022-4195-00 - 23x11-12 Reaper Turf Tire

$255.99 Usually ship in 1-3 days

In stock

95.2
024-1200-00 - Bad Boy Mower Parts
024-1200-00

In stock

024-1200-00 - Fitting, 3/8 - 3/8 45 Degree, 4603-6-6

$19.93 Usually ship in 1-3 days

In stock

97
025-0036-00 - Bad Boy Mower Parts
025-0036-00

In stock

025-0036-00 - Drive Arm Transaxle Spacer

$5.49 Usually ship in 1-3 days

In stock

100
032-5052-00 - Bad Boy Mower Parts
032-5052-00

In stock

032-5052-00 - Bronze Bushing

$4.81 Usually ship in 1-3 days

In stock

128
032-9000-00 - Bad Boy Mower Parts
032-9000-00

In stock

032-9000-00 - Isolator - Green Dot

$70.97 Usually ship in 1-3 days

In stock

129
032-9002-00 - Bad Boy Mower Parts
032-9002-00

In stock

032-9002-00 - Isolator - Red Dot

$70.97 Usually ship in 1-3 days

In stock

130
034-1026-00 – Brake Return Spring
034-1026-00

In stock

034-1026-00 - Brake Return Spring

$14.19 Usually ship in 1-3 days

In stock

138
039-0001-00 - Bad Boy Mower Parts
039-0001-00

In stock

039-0001-00 - Rear Transaxle Pivot Bracket

$15.60 Usually ship in 1-3 days

In stock

150
039-1306-00 - Bad Boy Mower Parts
039-1306-00

In stock

039-1306-00 - EZT Rear Susp Transaxle Mount

$15.60 Usually ship in 1-3 days

In stock

151
039-1320-00 - Bad Boy Mower Parts
039-1320-00

In stock

039-1320-00 - Brake Arm Extension Bracket [Maverick LH]

$6.04 Usually ship in 1-3 days

In stock

152
039-1321-00 - Bad Boy Mower Parts
039-1321-00

In stock

039-1321-00 - Brake Arm Ext Bracket Right Side

$8.01 Usually ship in 1-3 days

In stock

153
041-7400-00 - Bad Boy Mower Parts
041-7400-00

In stock

041-7400-00 - Pump Belt for Maverick and Maverick HD

$64.19 Usually ship in 1-3 days

In stock

161
044-2004-00 - Bad Boy Mower Parts
044-2004-00

In stock

044-2004-00 - Bow Pin

$2.99 Usually ship in 1-3 days

In stock

166
044-2008-00 - Bad Boy Mower Parts
044-2008-00

In stock

044-2008-00 - Neutral Rod Clip

$2.99 Usually ship in 1-3 days

In stock

167
050-6000-01 - ZT3400 Transaxle - Left
050-6000-01

In stock

050-6000-01 - ZT3400 Transaxle - Left

$819.99 Usually ship in 1-3 days

In stock

169
034-9080-00 - Bad Boy Mower Parts
034-9080-00

In stock

034-9080-00 - Gold Transaxle Spring

$14.89 Usually ship in 1-3 days

In stock

169.1
050-2072-00 - Bad Boy Mower Parts
050-2072-00

In stock

050-2072-00 - Fan/Pulley Kit

$90.94 Usually ship in 1-3 days

In stock

169.2
050-2077-00 - Bad Boy Mower Parts
050-2077-00

In stock

050-2077-00 - 5 Bolt Hub Kit

$111.57 Usually ship in 1-3 days

In stock

169.3
050-2012-00 - Bad Boy Mower Parts
050-2012-00

In stock

050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs

$5.61 Usually ship in 1-3 days

In stock

169.3.1
050-8011-00 - Seal Kit for 3400 Transaxle
050-8011-00

In stock

050-8011-00 - Seal Kit for 3400 Transaxle

$106.55 Usually ship in 1-3 days

In stock

169.4
063-1050-00 - Bad Boy Mower Parts
063-1050-00

In stock

063-1050-00 - ZT Hydraulic Filter

$22.71 Usually ship in 1-3 days

In stock

169.5
050-6001-01 - ZT3400 Transaxle Right
050-6001-01

In stock

050-6001-01 - ZT3400 Transaxle Right

$819.99 Usually ship in 1-3 days

In stock

170
034-9080-00 - Bad Boy Mower Parts
034-9080-00

In stock

034-9080-00 - Gold Transaxle Spring

$14.89 Usually ship in 1-3 days

In stock

170.1
050-2072-00 - Bad Boy Mower Parts
050-2072-00

In stock

050-2072-00 - Fan/Pulley Kit

$90.94 Usually ship in 1-3 days

In stock

170.2
050-2077-00 - Bad Boy Mower Parts
050-2077-00

In stock

050-2077-00 - 5 Bolt Hub Kit

$111.57 Usually ship in 1-3 days

In stock

170.3
050-2012-00 - Bad Boy Mower Parts
050-2012-00

In stock

050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs

$5.61 Usually ship in 1-3 days

In stock

170.3.1
050-8011-00 - Seal Kit for 3400 Transaxle
050-8011-00

In stock

050-8011-00 - Seal Kit for 3400 Transaxle

$106.55 Usually ship in 1-3 days

In stock

170.4
063-1050-00 - Bad Boy Mower Parts
063-1050-00

In stock

063-1050-00 - ZT Hydraulic Filter

$22.71 Usually ship in 1-3 days

In stock

170.5
064-3050-21 – 2021-2025 Load Balanced Brake Cable 1
064-3050-21

In stock

064-3050-21 - Load Balanced Brake Cable 1

$56.77 Usually ship in 1-3 days

In stock

182
064-3051-21 – 2021-2025 Load Balanced Brake Cable 2
064-3051-21

In stock

064-3051-21 - Load Balanced Brake Cable 2

$56.77 Usually ship in 1-3 days

In stock

183
091-0019-00 - Bad Boy Mower Parts
091-0019-00

In stock

091-0019-00 - Patent Decal

$3.62 Usually ship in 1-3 days

In stock

214

The 2023 Maverick HD Transaxle Assembly is a vital component for smooth operation and power distribution. When it’s time for maintenance or replacement, Bad Boy Mower Part diagrams will guide you in finding the right components. At BadBoyMowerParts.com, we offer a complete selection of Bad Boy Mower Parts, including transaxles, gears, and hydraulic components. Our Bad Boy Lawn Mower Parts are designed for superior performance and longevity. Ordering Bad Boy Parts Online is a quick and easy way to get the parts you need. Plus, with Free Shipping On Orders Over $100, maintaining your 2023 Maverick HD Transaxle Assembly is more affordable than ever. Order today and keep your mower running at peak efficiency!
