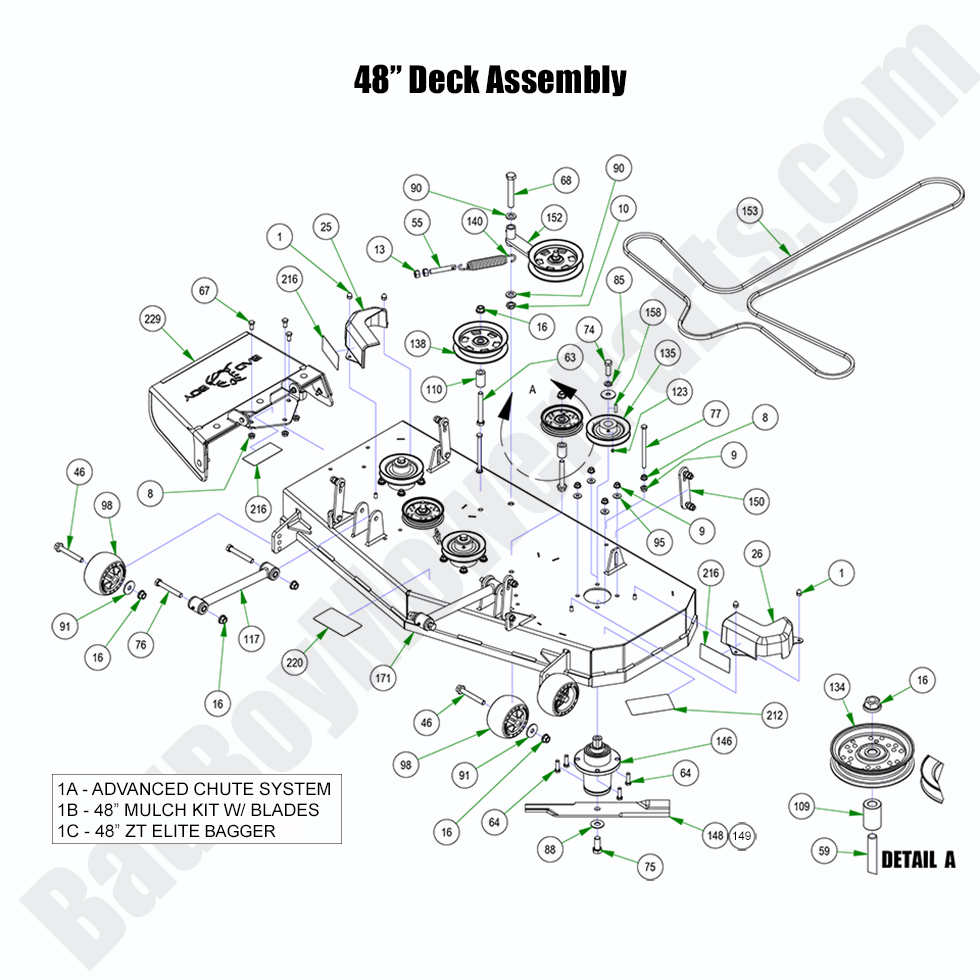

$3011 - Bad Boy Mower Parts Lookup > 2023 > ZT Elite > 48\" Deck Assembly$

013-0004-00

In stock

013-0004-00 - Acorn Nut-Pulley Cover

$3.29 Usually ship in 1-3 days

In stock

088-6006-00

In stock

088-6006-00 - Advanced Chute System

$249.00 Usually ship in 1-3 days

In stock

210-0248-50

In stock

210-0248-50 - Mulch Kit w/Blades

$318.45 Usually ship in 1-3 days

In stock

086-0017-00 - 2019 Deck Actuator Adaptor

088-1812-21

In stock

088-1812-21 - 48" ZT Elite Bagger (2021 - 2023)

$2,399.99 Usually ship in 1-3 days

In stock

013-5201-00

In stock

013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations

$2.99 Usually ship in 1-3 days

In stock

013-5202-00

In stock

013-5202-00 - 3/8 Nylock Flange Nut

$2.99 Usually ship in 1-3 days

In stock

013-5301-00

In stock

013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc

$2.99 Usually ship in 1-3 days

In stock

013-7018-00

In stock

013-7018-00 - 1/2-13 Hex Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

013-8050-00

In stock

013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$2.99 Usually ship in 1-3 days

In stock

014-4025-00

In stock

014-4025-00 - Extra Small Pulley Cover - Right

$17.86 Usually ship in 1-3 days

In stock

014-4026-00

In stock

014-4026-00 - Extra Small Pulley Cover - Left

$17.86 Usually ship in 1-3 days

In stock

018-0010-00

In stock

018-0010-00 - Deck Wheel Bolt

$6.48 Usually ship in 1-3 days

In stock

018-2004-50

In stock

018-2004-50 - All Thread

$12.94 Usually ship in 1-3 days

In stock

018-2018-00

In stock

018-2018-00 - 1/2 - 3 1/2 Flange Bolt - Gr 8

$3.62 Usually ship in 1-3 days

In stock

018-5019-00

In stock

018-5019-00 - 1/2-13 - 4 GR - Hex Bolt

$4.39 Usually ship in 1-3 days

In stock

018-5040-00

In stock

018-5040-00 - 3/8-16 - 1-1/4 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

018-5250-00

In stock

018-5250-00 - 3/8-16 - 3/4 GR - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

018-5311-00

In stock

018-5311-00 - 5/8-11 - 4" GR - Hex Bolts Zinc

$4.06 Usually ship in 1-3 days

In stock

018-6019-00

In stock

018-6019-00 - 1/2-20 - 1-1/2 GR - Bolt Zinc, Fine Thread Bolt

$2.99 Usually ship in 1-3 days

In stock

018-6020-00

In stock

018-6020-00 - 5/8-18 - 1-1/2 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

018-6054-00

In stock

018-6054-00 - 1/2-13 - 3-1/2 GR - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

018-7060-00

In stock

018-7060-00 - 3/8-16 - 5 1/2 Hex Bolt - Grade 5

$2.99 Usually ship in 1-3 days

In stock

019-5007-00

In stock

019-5007-00 - 1/2 Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

019-5038-00

In stock

019-5038-00 - 5/8 Flat Washer

$2.99 Usually ship in 1-3 days

In stock

019-6017-00

In stock

019-6017-00 -.630 ID - 1.122 OD X.142 THK Flat Washer Nylon

$2.99 Usually ship in 1-3 days

In stock

019-6020-00

In stock

019-6020-00 - 1/2 Belleville Washer #K2000-G -150

$5.16 Usually ship in 1-3 days

In stock

019-8044-00

In stock

019-8044-00 - 5/16 USS Flat Washer Zinc

$2.99 Usually ship in 1-3 days

In stock

022-1000-00

In stock

022-1000-00 - Deck Wheel Only

$17.11 Usually ship in 1-3 days

In stock

025-5338-00

In stock

025-5338-00 -.502 ID X.750 OD - 1.500" Spacer Zinc

$3.62 Usually ship in 1-3 days

In stock

109

025-5339-00

In stock

025-5339-00 - .502 ID - 1.00 OD - 1.750 Length Spacer Zinc

$5.36 Usually ship in 1-3 days

In stock

110

028-0004-22

In stock

028-0004-22 - Hybrid Turnbuckle/Deck Locator

$46.84 Usually ship in 1-3 days

In stock

117

030-0050-00

In stock

030-0050-00 - 5/16 Set Screw

$2.99 Usually ship in 1-3 days

In stock

123

033-6001-00

In stock

033-6001-00 - 4 3/4 Idler Pulley

$31.22 Usually ship in 1-3 days

In stock

134

033-6003-00

In stock

033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw)

$42.58 Usually ship in 1-3 days

In stock

135

033-7201-25

In stock

033-7201-25 - 5 3/4 Idler Pulley-Capitol Stampings

$35.48 Usually ship in 1-3 days

In stock

138

034-2020-00

In stock

034-2020-00 - Idler Spring

$17.11 Usually ship in 1-3 days

In stock

140

037-6015-50

In stock

037-6015-50 - Spindle Assembly

$199.99 Usually ship in 1-3 days

In stock

146

038-5350-00

In stock

038-5350-00 - 48"/50" High Lift Fusion Blade

$22.99 * Usually ship in 1-3 days

In stock

148

038-1000-00

In stock

038-1000-00 - 48/50" Fusion Blades - 6-Pack (038-5350-00)

$118.99 * Usually ship in 1-3 days

In stock

148.1

038-5000-00

In stock

038-5000-00 - 48"/50" Gator Mulching Blade

$22.99 * Usually ship in 1-3 days

In stock

149

038-1035-00

In stock

038-1035-00 - 48/50" Fusion Gator Mulching Blades - 6-Pack

$122.99 * Usually ship in 1-3 days

In stock

149.1

039-2127-17

In stock

039-2127-17 - Deck Hanger Assy.

$15.60 Usually ship in 1-3 days

In stock

150

039-6945-17

In stock

039-6945-17 - Deck Idler Assembly 2018-2024 ZT, Maverick - Walk Behind

$70.97 Usually ship in 1-3 days

In stock

152

041-1470-00

In stock

041-1470-00 - B147 Deck Belt

$87.39 Usually ship in 1-3 days

In stock

153

042-6030-00

In stock

042-6030-00 - 1/4" - 1" Square Key

$4.81 Usually ship in 1-3 days

In stock

158

060-2312-00

In stock

060-2312-00 - 2023 48" ZT/Maverick/HD Deck--Painted

$999.99 Usually ship in 1-3 days

In stock

171

091-0903-18

In stock

091-0903-18 - 48" Deck Decal

$8.01 Usually ship in 1-3 days

In stock

212

091-3012-00

In stock

091-3012-00 - Danger Decal-Spindle/Discharge

$2.99 Usually ship in 1-3 days

In stock

216

091-3309-00

In stock

091-3309-00 - Deck Belt Route Decal

$6.41 Usually ship in 1-3 days

In stock

220

210-6005-48

In stock

210-6005-48 - Chute Assembly

$169.99 Usually ship in 1-3 days

In stock

229

The 48" deck assembly on your 2023 ZT Elite is essential for providing a wide, clean cut. At BadBoyMowerParts.com, we offer a complete selection of Bad Boy Mower Parts for maintaining and replacing the deck assembly. Whether you need new blades, pulleys, or the full deck assembly, we have the parts you need to ensure your mower is performing at its best. Our Bad Boy Mower Part diagrams make it easy to identify the exact components you need for your 48" deck assembly. We carry durable Bad Boy Lawn Mower Parts designed to fit your mower perfectly. Shopping Bad Boy Parts Online is quick and simple, and with Free Shipping On Orders Over $100, you can save on every order. Keep your 2023 ZT Elite cutting smoothly with high-quality deck assembly parts from BadBoyMowerParts.com.
