2014 Diesels - 28HP Cat Diesel Engine

2014 Diesels - 28HP Cat Diesel Engine

The 2014 Diesels 28HP Cat Diesel Engine offers impressive power and efficiency, making it a reliable choice for your mower. BadBoyMowerParts.com carries a full selection of Bad Boy Mower Parts designed to keep this engine in excellent working condition. From fuel filters to air filters, we provide high-quality components for regular maintenance. Our Bad Boy Mower Part Diagrams make it easy to identify and order the right parts for your 28HP Cat Diesel Engine. Maintaining your engine properly ensures smooth operation and enhances mower performance. Along with engine parts, we carry a variety of Bad Boy Lawn Mower Parts to address all of your mower’s needs. Ordering Bad Boy Parts Online is convenient, and with Free Shipping On Orders Over $100, you can save on shipping costs while keeping your engine running smoothly. Keep your 2014 Diesels 28HP Cat Diesel Engine performing at its best with the right parts and regular maintenance.

Bad Boy Mower Parts Lookup

2014 Diesels - 28HP Cat Diesel Engine
  Position Number SKU Product Title Price
1A 041-0010-00 041-0010-00 - Caterpillar/Perkins Fan Belt
$85.17
2A 055-8018-00 055-8018-00 - Throttle Cable (See Models Used On For Details)
$60.92
2 039-1010-00 039-1010-00 - Diesel Throttle Bracket 4 Tier
$5.49
3 017-3000-00 017-3000-00 - Stub shaft- Diesel
$229.90
4 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
6 018-2001-00 018-2001-00 - M8 X 1.25 X 25MM Class 10.9 He x Bolts Zinc
$2.99
7 018-5320-00 018-5320-00 - M8 x 1.25 x 30MM Hex Head Bolt
$2.99
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 201-8008-00 201-8008-00 - Diesel Motor Side Support Right (See Models Used On For Details)
$31.22
11 018-2000-00 018-2000-00 - M6x1.0x20MM 8.8 Hex Bolts Zinc
$2.99
12 086-7004-00 086-7004-00 - Oil Pressure Sender- For 2012 and Newer Units
$119.99
13 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
14 039-1015-00 039-1015-00 - Radiator Hose Clamp Bracket
$2.99
15 015-0010-00 015-0010-00 - 28/35hp Caterpillar Engine Muffler
$225.56

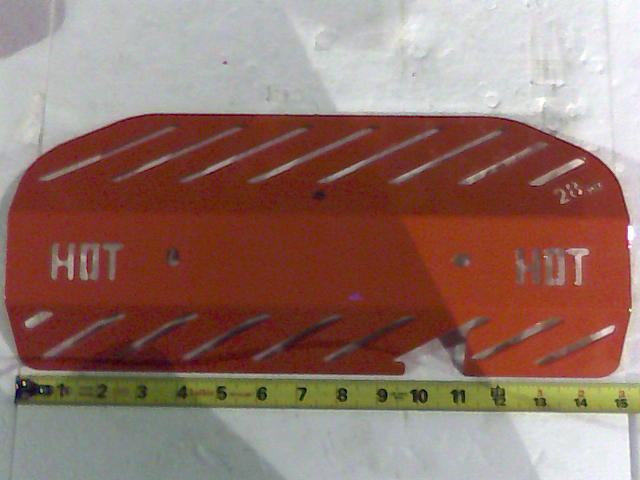

16 043-1010-00 043-1010-00 - 2010-2017 Diesel Muffler Cover (See Models Used On For Details) (obsolete)
use part #043-1000-00
$22.71
17 030-8000-00 030-8000-00 - 1/4x3/4 Set Screw-Diesel Exhaust
$2.99
18 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
19 018-6022-00 018-6022-00 - 12mm Bolt - Diesel
$2.99
20 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
21 203-8000-00 203-8000-00 - Muffler Brace Diesel
$19.25
22 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
23 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
24 051-3001-00 051-3001-00 - Diesel Radiator Hose - Bottom
$28.09
25 051-3000-00 051-3000-00 - 2010-2020 Top Radiator Hose - Diesel
$22.03
26 072-2003-00 072-2003-00 - 1 1/8" Hose Clamp
$5.82
27 201-8001-00 201-8001-00 - Hood Holder Diesel
$42.79
28 032-4050-00 032-4050-00 - Rubber Compression Mount Side Motor Mount-Diesel
$76.53
29 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
30 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
32 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
33 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
34 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
35 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
36 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
39 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
40 018-0016-00 018-0016-00 - 5/16-18 x 1 Button Head Torx Drive Bolt
$2.99
41 086-0004-00 086-0004-00 - Starter to Chassis Cable - Diesel Models
$7.69
42 015-6050-00 015-6050-00 - Diesel Engine Fan (See Models Used On For Details)
$202.89
43 201-8009-00 201-8009-00 - Diesel Side Motor Mount Left (See Models Used On For Details)
$31.22
44 063-2010-00 063-2010-00 - Caterpillar Oil Filter
$42.79
45 019-2050-00 019-2050-00 - Brass Washer for Weld-on Hinge
$2.99
46 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
47 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
48 044-2006-00 044-2006-00 - 1/4 X 5/8 Clevis Pin
$2.99
49 020-2000-00 020-2000-00 - 3/32 X 1/2 Cotter Pins Zinc
$2.99
