The 2016 MZ Magnum Seat Assembly is designed for ultimate comfort and ergonomic support, ensuring a pleasant riding experience even during extended mowing sessions. Expertly crafted with high-density cushioning and a durable frame, this seat assembly minimizes operator fatigue and enhances overall productivity. Its adjustable design allows for personalized positioning, accommodating a range of body types while providing superior stability and control. Meticulously engineered for durability and ease of installation, the seat assembly is an ideal upgrade for both professional landscapers and home gardeners. Customers seeking detailed installation instructions and product specifications can refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. For additional product information, maintenance tips, and expert customer support, please visit BadBoyMowerParts.com. Upgrade your riding comfort and enjoy a smoother, more efficient mowing experience with this premium seat assembly that combines functionality and style today.

|

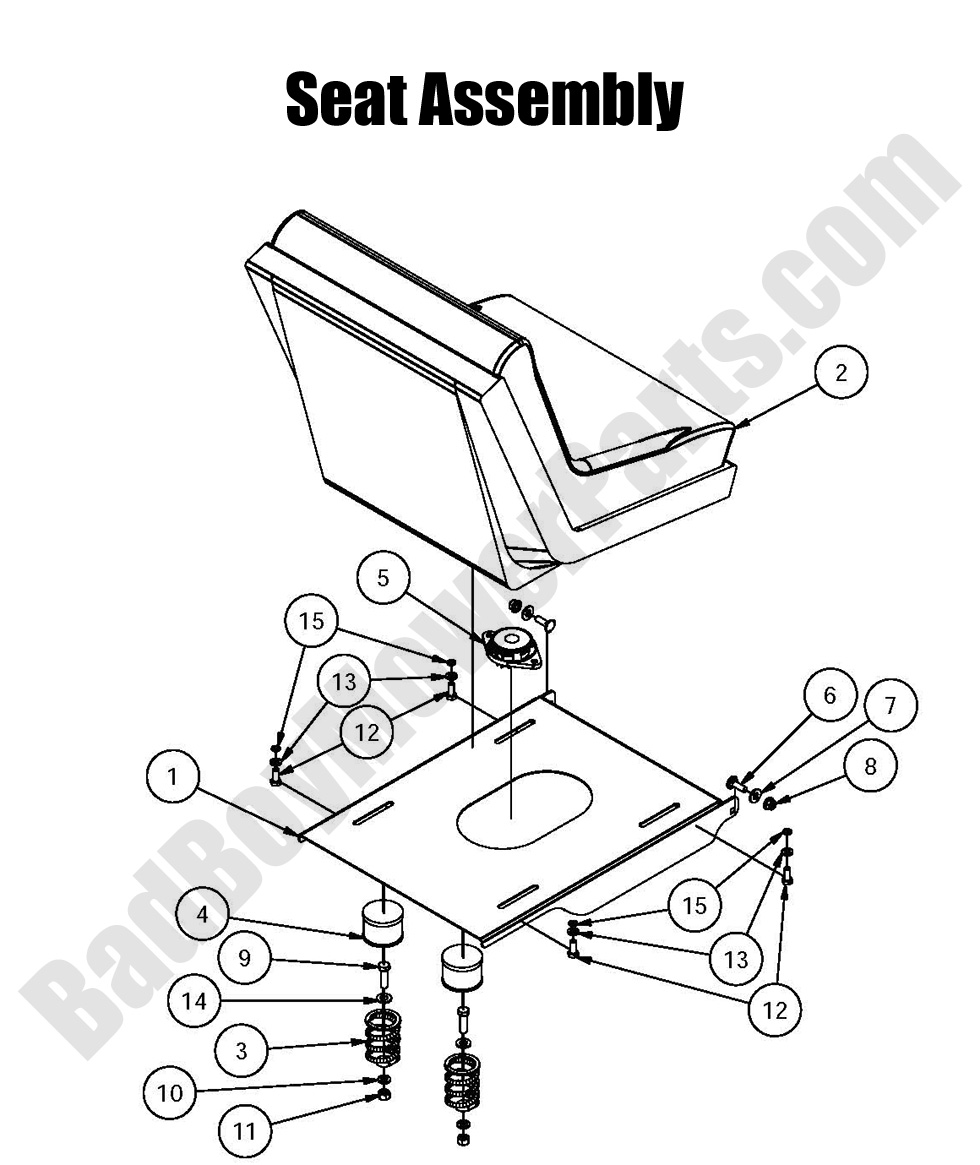

| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 1 | 026-2010-00 | 026-2010-00 - MZ Seat Plate |
$99.32
|
||
| 2 | 071-9001-00 |
071-9001-00 - CZT/ZT/Magnum Seat Obsolete use 071-1000-00 (obsolete) use part #071-1000-00 |
$429.99
|
||
| 3 | 034-8045-00 | 034-8045-00 - Seat Spring |
$20.49
|
||
| 4 | 014-8047-00 | 014-8047-00 - Rubber Cap Cover |
$2.99
|
||
| 5 | 071-8062-00 | 071-8062-00 - Seat Switch |
$21.06
|
||
| 6 | 018-8065-00 | 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc |
$2.99
|
||
| 7 | 019-6042-00 | 019-6042-00 -.360 ID Plastic Washer |
$2.99
|
||
| 8 | 013-8049-00 | 013-8049-00 - 5/16-18 Nylon Flange Nut |
$2.99
|
||
| 9 | 018-5040-00 | 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt |
$2.99
|
||
| 10 | 019-5037-00 | 019-5037-00 - 3/8" Lockwasher Zinc |
$2.99
|
||
| 11 | 013-6014-00 | 013-6014-00 - 3/8-16 Hex Nuts Zinc |
$2.99
|
||
| 12 | 018-8063-00 | 018-8063-00 - 5/16-18 X 3/4 Hex Bolt |
$2.99
|
||
| 13 | 019-8051-00 | 019-8051-00 - 5/16" Lockwasher Zinc |
$2.99
|
||
| 14 | 019-5029-00 | 019-5029-00 - 3/8 USS Flat Washer Zinc |
$2.99
|
||
| 15 | 019-7040-00 | 019-7040-00 - 1/4 USS Flat Washer Zinc |
$2.99
|
