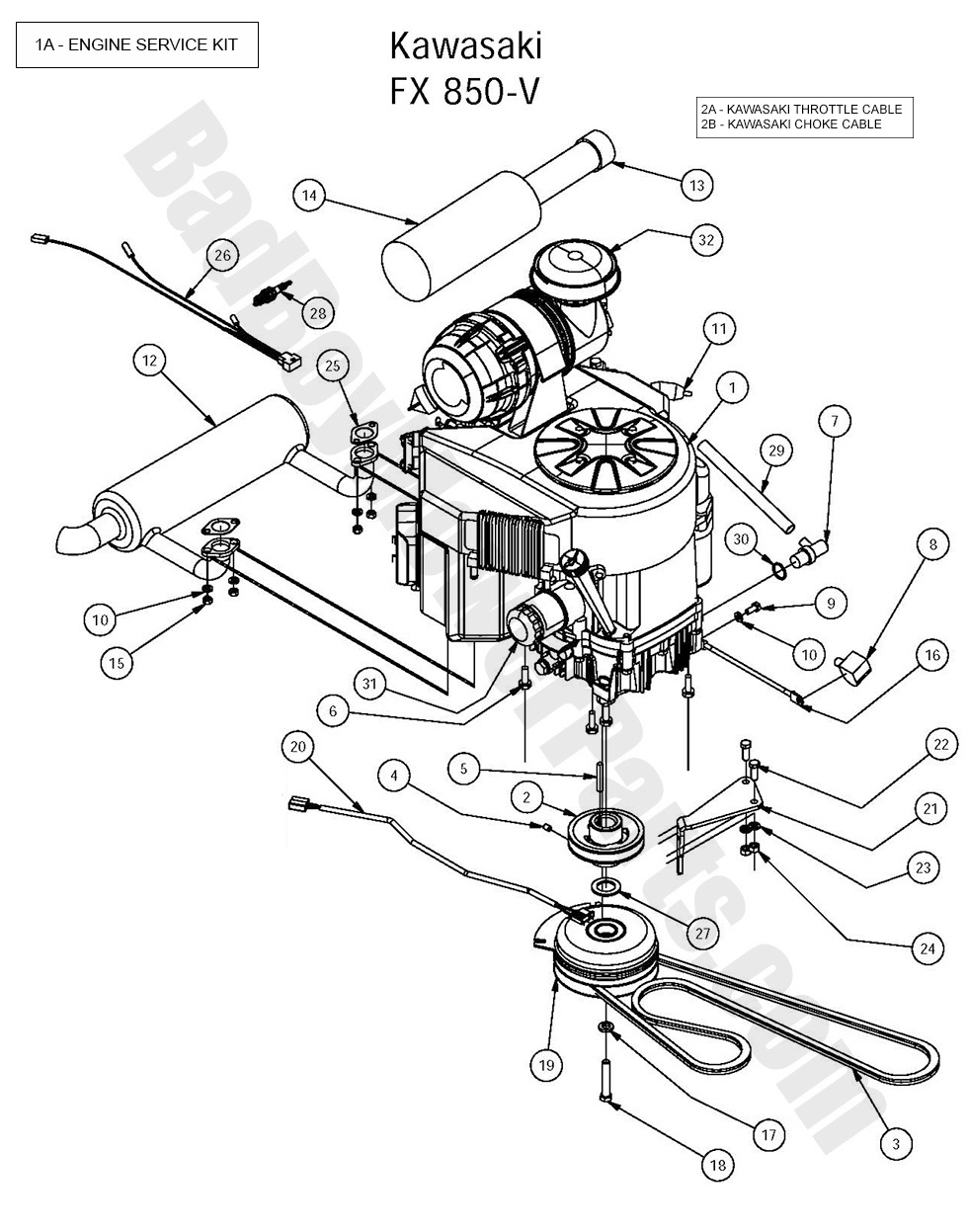

2016 Outlaw & Outlaw Extreme Engine - Kawasaki FX-850V

Engine - Kawasaki FX-850V

You have selected the Engine - Kawasaki FX-850V diagram for your 2016 Bad Boy Outlaw & Outlaw Extreme. BadBoyMowerParts.com has the diagrams you need for the 2016 Outlaw & Outlaw Extreme models. Find all of your Bad Boy parts for your 2016 Outlaw & Outlaw Extreme parts here. We are your Bad Boy mower parts source. The Bad Boy parts diagram below is for the 2016 Outlaw & Outlaw Extreme Engine - Kawasaki FX-850V . If you are not able to find the Bad Boy parts for your 2016 Outlaw & Outlaw Extreme please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

2016 Outlaw & Outlaw Extreme Engine - Kawasaki FX-850V
  Position Number SKU Product Title Price
1A 063-2000-02 063-2000-02 - Kawasaki FX850 & FX1000 Engine Service Kit
$124.74
1 015-0031-00 015-0031-00 - Kawa Engine FX-850V-AS15R
$3632.65
2 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
3 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
4 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
5 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
6 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
7 015-5404-00 015-5404-00 - Oil Drain Valve - For Kawasaki FR, FS and FX Engines (obsolete)
use part #051-5404-00
$28.11
8 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
9 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
10 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
11 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
12 015-0035-00 015-0035-00 - Exhaust for 31hp Kawasaki
$218.63
13 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
14 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
15 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
16 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
17 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
18 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
19 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
20 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
21 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
22 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
23 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
24 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
25 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
26 086-9002-00 086-9002-00 - Harness Adaptor-Outlaw FX-All
$46.84
27 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
28 015-8001-00 015-8001-00 - Spark plug-Kawasaki (NGK or Equivalent)
$8.79
29 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
30 015-5403-00 015-5403-00 - O Ring for Oil Drain - Kawasak
$7.28
31 063-8017-00 063-8017-00 - Kawasaki Oil Filter Fits 26/27 Liquid Cool/31 KAW
$21.39
32 088-1071-00 088-1071-00 - 31 KAW Rain Cap for Canister
$64.19
