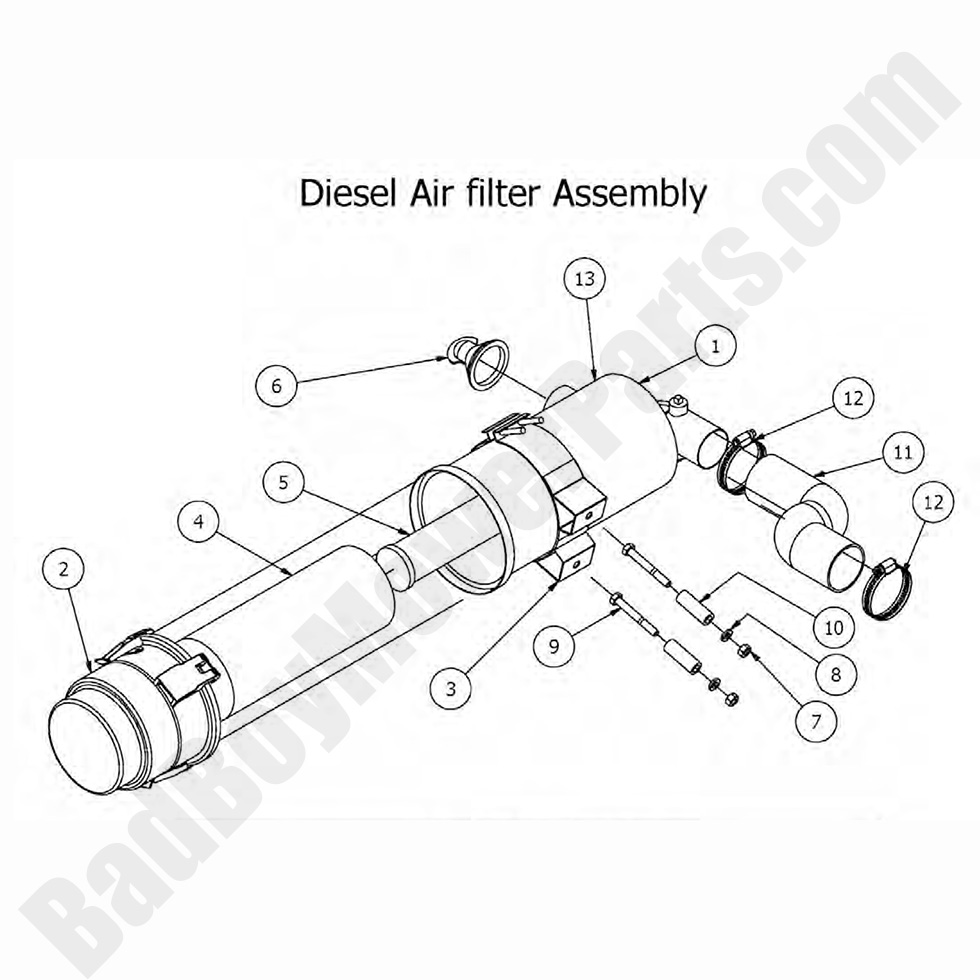

The 2017 Diesel - 1500cc Air Filter Assembly plays a crucial role in preventing debris and dust from affecting engine performance. At BadBoyMowerParts.com, we provide premium Bad Boy Mower Parts, including air filters, pre-filters, filter housings, and mounting brackets for maximum filtration efficiency. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for longevity and peak performance. With our Bad Boy Mower Part diagrams, you can quickly find and order the correct air filter components for easy installation. Routine air filter maintenance improves engine efficiency, prevents clogging, and extends the lifespan of your diesel mower. We also stock Bad Boy Parts Online, making it simple to order replacement parts as needed. Plus, with Free Shipping On Orders Over $100, maintaining your 2017 Diesel - 1500cc Air Filter Assembly is now more affordable. Order today to keep your engine running smoothly with optimal airflow and protection.

|
| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 1 | 088-1018-00 | 088-1018-00 - Canister for All Diesel Air |
$85.17
|
||
| 2 | 088-1017-00 | 088-1017-00 - Enginaire Air Canister Cap |
$75.96
|
||
| 3 | 088-1019-00 | 088-1019-00 - Mounting Bracket for Diesel Air Filter |
$52.44
|
||
| 4 | 063-2050-00 | 063-2050-00 - Diesel Air Filter - Outer |
$52.42
|
||
| 5 | 063-2060-00 | 063-2060-00 - Diesel Air Filter - Inner |
$42.58
|
||
| 6 | 088-1020-00 | 088-1020-00 - Debris Plug-Enginaire Filter |
$14.19
|
||
| 7 | 013-8043-00 | 013-8043-00 - 5/16-18 Hex Nut |
$2.99
|
||
| 8 | 019-8051-00 | 019-8051-00 - 5/16" Lockwasher Zinc |
$2.99
|
||
| 9 | 018-5344-00 | 018-5344-00 - 5/16 x 2 1/2 Bolt |
$2.99
|
||
| 10 | 025-8000-00 | 025-8000-00 -.378x.625x1.750 Spacer Zinc |
$4.81
|
||
| 11 | 051-3002-00 | 051-3002-00 - Air Intake Hose-Diesel |
$29.95
|
||
| 12 | 072-2002-00 | 072-2002-00 - 2-1/2 Hose Clamp |
$11.34
|
||
| 13 | 088-1010-50 | 088-1010-50 - Enginaire Canister VLR-Complete Diesel Models |
$229.99
|
