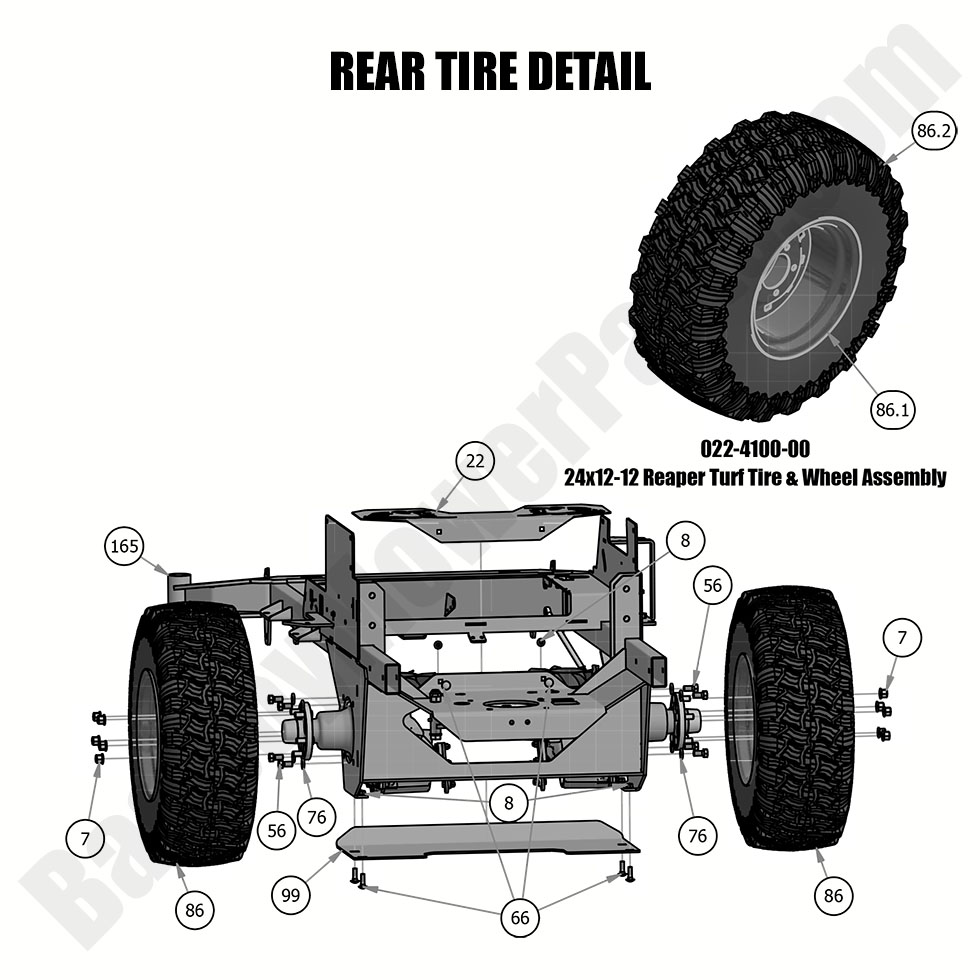

The 2019 Rebel Rear Tire Detail system provides traction, stability, and durability, making proper maintenance crucial. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including rear tires, wheel hubs, lug nuts, and securing hardware to maintain control and durability. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements for long-lasting performance. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct rear tire components for easy installation. Proper maintenance ensures consistent traction, prevents premature tire wear, and enhances maneuverability. We stock Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Rebel Rear Tire Detail system is now more affordable. Order today for enhanced control and long-lasting durability.

|
| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 7 | 013-3000-00 | 013-3000-00 - Acorn Lug Nut |
$3.29
|
||
| 8 | 013-5202-00 | 013-5202-00 - 3/8 Nylock Flange Nut |
$2.99
|
||
| 22 | 014-5070-00 | 014-5070-00 - Rigid Fan Guard |
$21.39
|
||
| 56 | 018-5040-00 | 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt |
$2.99
|
||
| 56 | 018-2030-00 | 018-2030-00 - 1/2 x 1 Bolt |
$2.99
|
||
| 66 | 018-5043-00 | 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt |
$2.99
|
||
| 76 | 019-5007-00 | 019-5007-00 - 1/2 Lockwasher Zinc |
$2.99
|
||
| 86.0 | 022-4100-00 | 022-4100-00 - 2018-Newer Outlaw Tire & Rim Assy - 24x12-12 Reaper Turf |
$329.99
|
||
| 86.1 | 022-4070-00 | 022-4070-00 - Black Wheel 12x8.5 (See Models Used On for Detail) |
$141.99
|
||
| 86.2 | 022-4095-00 | 022-4095-00 - 24x12-12 Reaper Turf Tire |
$229.99
|
||
| 99 | 026-2240-00 | 026-2240-00 - Rigid Skid Plate 2019-2022 Rebel |
$53.49
|
||
| 165 | 070-5371-19 | 070-5371-19 - 2019 - 2021 Rigid Frame Welded Assembly |
$1299.99
|
