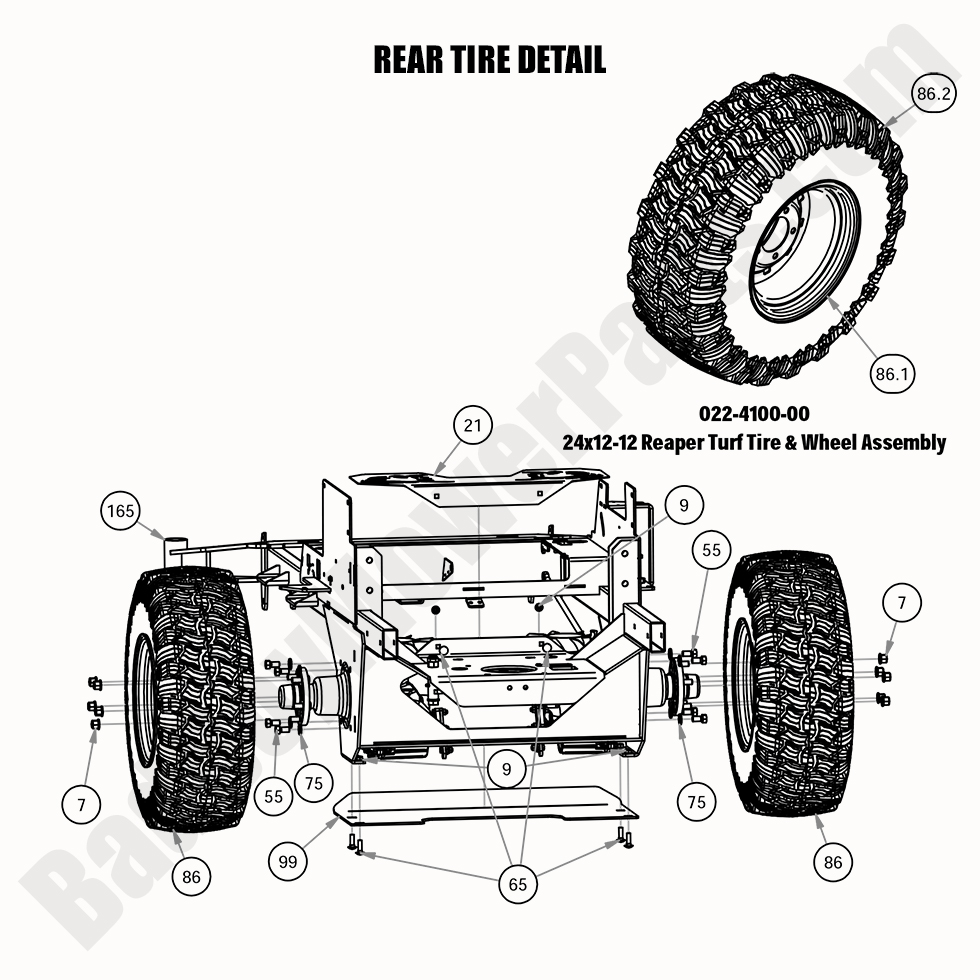

The 2020 Rebel Rear Tire Detail focuses on maintaining the rear tires of your mower, which are vital for proper traction and smooth operation. Over time, these tires can wear down, especially if you use your mower frequently on rough or uneven surfaces. To keep your mower functioning properly, it's essential to replace worn tires with high-quality Bad Boy Mower Parts. Whether you need a full set of rear tires or just one replacement, Bad Boy Parts Online offers an easy way to find and order what you need. You can refer to the Bad Boy Mower Part diagrams for accurate details on tire specifications and size. These Bad Boy Lawn Mower Parts are designed to provide the perfect fit and long-lasting performance. Best of all, with Free Shipping On Orders Over $100, you can get the parts you need without added shipping costs. Shop at BadBoyMowerParts.com for your 2020 Rebel Rear Tire Detail.

|
| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 7 | 013-3000-00 | 013-3000-00 - Acorn Lug Nut |
$3.29
|
||
| 9 | 013-5202-00 | 013-5202-00 - 3/8 Nylock Flange Nut |
$2.99
|
||
| 21 | 014-5070-00 | 014-5070-00 - Rigid Fan Guard |
$21.39
|
||
| 55 | 018-2030-00 | 018-2030-00 - 1/2 x 1 Bolt |
$2.99
|
||
| 65 | 018-5043-00 | 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt |
$2.99
|
||
| 75 | 019-5007-00 | 019-5007-00 - 1/2 Lockwasher Zinc |
$2.99
|
||
| 86.0 | 022-4100-00 | 022-4100-00 - 2018-Newer Outlaw Tire & Rim Assy - 24x12-12 Reaper Turf |
$329.99
|
||
| 86.1 | 022-4070-00 | 022-4070-00 - Black Wheel 12x8.5 (See Models Used On for Detail) |
$141.99
|
||
| 86.2 | 022-4095-00 | 022-4095-00 - 24x12-12 Reaper Turf Tire |
$229.99
|
||
| 99 | 026-2240-00 | 026-2240-00 - Rigid Skid Plate 2019-2022 Rebel |
$53.49
|
||
| 165 | 070-5371-19 | 070-5371-19 - 2019 - 2021 Rigid Frame Welded Assembly |
$1299.99
|
